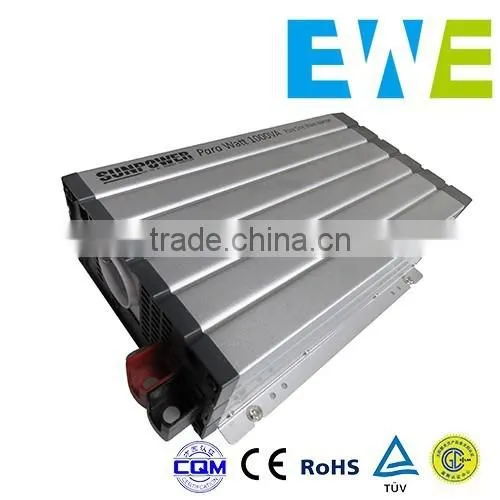

Solar Inverter 1000VA Pure Sina Wave

Solar Inverter 1000VA Pure Sina Wave thumbnail-1
Solar Inverter 1000VA Pure Sina Wave thumbnail-2
Solar Inverter 1000VA Pure Sina Wave thumbnail-3
Solar Inverter 1000VA Pure Sina Wave photo-1

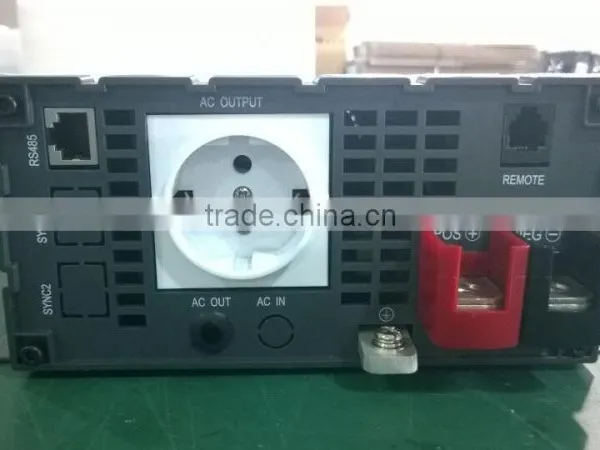

Solar Inverter 1000VA Pure Sina Wave photo-2

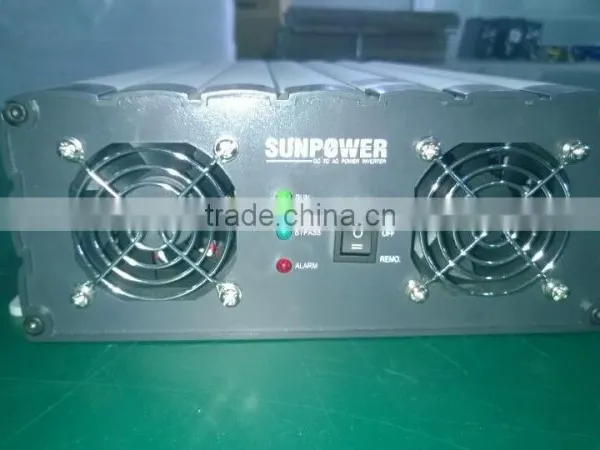

Solar Inverter 1000VA Pure Sina Wave photo-3
US$ 250 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
EWE
Model Number:
PW800W
Contact Supplier Request Quote Chat Now
EastWest Energy Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name EWE
Model Number PW800W
Output Power 500 - 1000W
Output Type Single
Size 199*124*49mm
Weight 0.8kg
Input Voltage 12Vdc/24Vdc
Output Voltage 220/230/240Vac
Type DC/AC Inverters
Output Frequency 50/60Hz +-3%
Output Current A

ParaWatt series inverter is a leading product in the industry. Designed with the highest standards in the industry, ParaWatt series inverter realizes remotely controlled, intelligent and high efficiency. The unique N+X parallel redundancy feature maximizes the flexibility and expansibility of integrating additional ParaWatt units in the future.





Intelligent and high efficiency :

  1. Intelligent ‘power saving mode‘, no higher than 5W.
  2. intelligent cooling fan speed control determined by loads
  3. pure sine wave output(THD<3%) for wide range of applications and different environment

Remote control:

  1. Remote switcher feature.
  2. Display inverter parameters remotely.
  3. Remote changing the program.

Safety and reliability:

  1. Input/output isolated design maximized the operation safety.
  2. Intelligent multiple protection : Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / Over temperature

Expansibility :

  1. N+X parallel redundancy feature, maximizing the flexibility and expansibility.
  2. ‘All master’ dynamic mechanism eliminate single point failure to enhance reliability
  3. Modular design enables more flexible and room saving way to combine and split







PW600




Output



Item

Para Wat1000VA

Output power

800W

Surge rating

160W

Frequency

50/60Hz +-3%

Output wave

 Pure Sine Wave (THD < 3%)

AC output voltage

220V/230V/240V +-3%





Input





 Nominal DC voltage

12Vdc/24Vdc/48Vdc

IVoltage range

10.5-15V(*1,*2,*4)

No load current draw

≤15W

Stand-by current draw

≤5W, power saving mode

Interface

RS485





Protection

Input low voltage protection

10.5V/21V/42V protect, 11V/22V/44V alarm(automatically recovery or not  automatically recovery can be factory set)

Input low voltage protection

18V/32V/64V protect, 15V/31V/62V  alarm(automatically recovery or not  automatically recovery can be factory set)

Reverse current protection

Fuse

AC input over voltage

120% rated voltage

AC input low voltage alarm

80% rated voltage

Output over current point2

10s 150%



Output short circuit protection

Recovery

Over temperature protection

90oC recovery

Fan fault protection

turn off output, alarm





Who we are:
We, Beijing EastWest Energy Technology Co., Ltd. (EastWest) eastablised in 1997, is one of the easliest PV companies and inverter manufacturers in China, which is also an National High-Tech Enterprise. We have been engaged in reaseaching and developing distributed power products for more than a decade.

solar inverter 1000VA pure sina wave

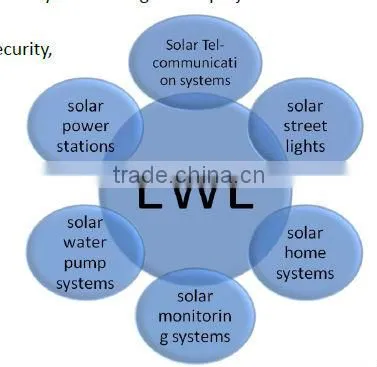

What we do:

 solar inverter 1000VA pure sina wave

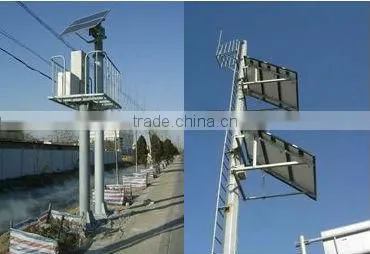

Solar Monitoring System: Solar Home System:
for Fire, Highway, and Security in Mozambique, France, Uganda, Nigeria, etc.

solar inverter 1000VA pure sina wave

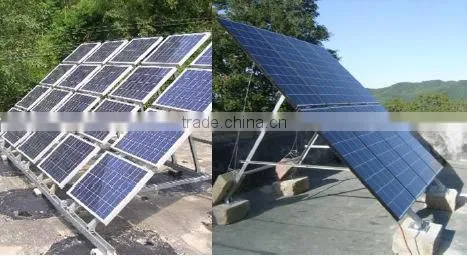

Solar Home System: in Mozambique, France, Uganda, Nigeria, etc.

solar inverter 1000VA pure sina wave

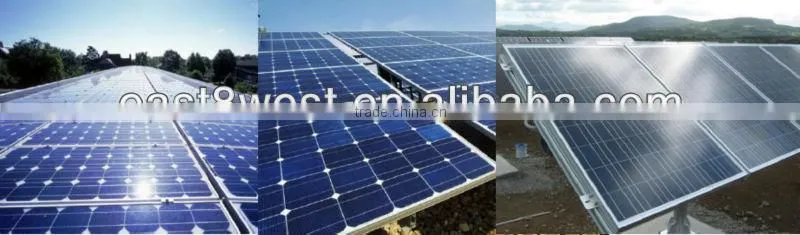

Solar Power Station: in Kazakhstan, Ethiopia, etc.

solar inverter 1000VA pure sina wave

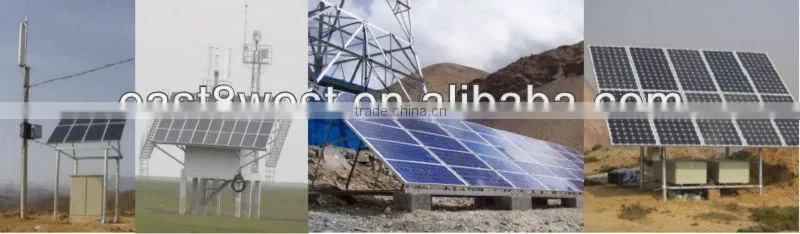

Solar Tel-communication System: in Africa, China, etc.

solar inverter 1000VA pure sina wave

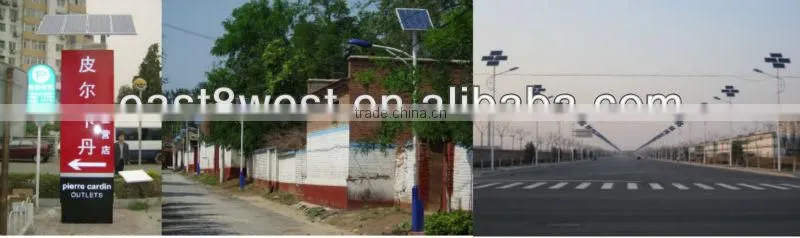

Solar Street and Advertisement Lamp System:
In Ethiopia, Nigeria, China, etc.

solar inverter 1000VA pure sina wave
