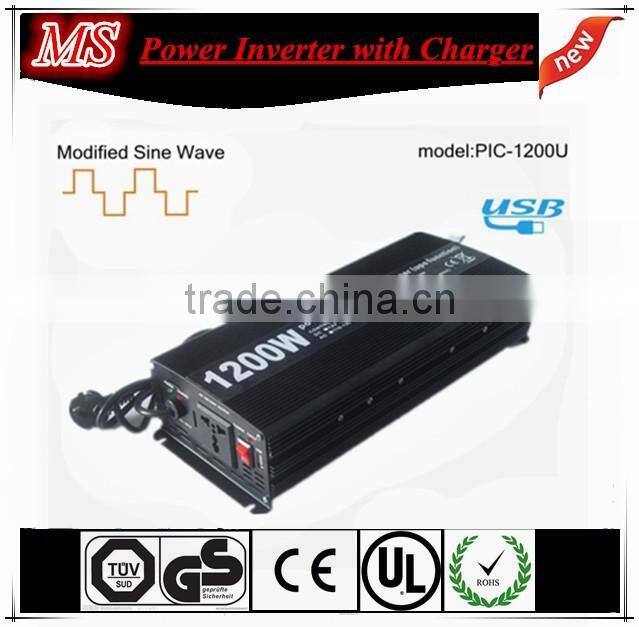

Competitive price 1200w 12/24vdc to 110/220vac power inverter with charger
(PIC-1200U)
Inverter Mode
|
PIC-600 |
PIC-800 |
PIC-1000 |
PIC-1200 |
PIC-1500 |
PIC-2000 |
|||||
Continuous Power |
600W |
800W |
1000W |
1200W |
1500W |
2000W |
|||||
Peak Power |
2400W |
1600W |
2000W |
2400W |
3000W |
4000W |
|||||
Input Voltage |
DC12V/24V
|
||||||||||
Output Voltage |
110V~120V/220V~240V |
||||||||||
Output Frequency |
50±3Hz/60±3Hz |
||||||||||
Low Voltage Alarm |
DC10.2~10.8V/DC20.4~21.6V |
||||||||||
Low Voltage Off |
DC9.2~9.8V/DC18.4~19.6 |
||||||||||
Over Voltage Off |
DC15~16V/DC29~31V |
||||||||||
Over Load Protection |
68A~72A |
88A~92A |
115A~120A |
130A~135a |
165a~170A |
225A~230A |
|||||
Electrostatic Current |
≤0.8A |
||||||||||
Transfer Efficiency |
90% |
||||||||||
Charge Mode
Input Voltage |
AC2200`240V/AC110~120V |
Working Voltage |
AC200`250V/AC100~120V |
Frequency |
50±3Hz/60±3Hz |
MAX Charge Current |
10A |
Advantage of rechargeable solar inverter
Have three Modes:
1.INVERTER MODE
Connect anode (red) and cathode (black) with the terminal of inverter tightly and the connect the anode and cathode of battery by cables when work.
2. CHARGE MODE
Connect anode (red) and cathode (black) with the terminal of inverter tightly and the connect the anode and cathode of battery by cables when work. Then plug the socket and connect the socket of home equipment’s to start charging. Once battery full, the charging will stop automatically.
3. UPS MODE
If commercial power shut down, connect the battery with inverter and the connect home equipment with
output socket, then inverter start work.
If commercial power recovers, connect the plug of inverter with commercial power, at the same time, battery
is charging by inverter.
During in charging, do not connect the home equipment with outputs of inverter.
You can choose your popular packing way: with PVC or colorful carton box, all is avaible.
All the port and shipping way, we can do as your requirments.
1. Before shipping out all power inverter test 3 times( online inspect, finished products quality control, aging test) to make sure the qualtiy and insist on " 0 defects" quality aim.
2. Have more than 5 years produce experience, have business all over the world, know the requirement for each market.
3. Have full range products,including power inverter, solar charger controller, car power inverter, solar system and battery charger.
4. Have R&D and after services team to help customers resolve all the problems.
5. OEM and ODM all is avaible in our company.
6.Equiped with advanced testing mechine and technology.
1.ocated in Yujiang industrial park,Yingtan city , around the national highway 320 and close to the copper of China , which features convenient traffic and beautiful environment., we occupied more than 28000M2, with more than 200people and an excellent R&D team which formed by over 30 engineers.
2. Professional and Mainly focus on produce the power inverter(including car power inverter), solar charge controller, battery charger.
3. equiped with standard certificated to allow you enter the market successfully, also with the patents.
1. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Yingtan City, Jiangxi Province, China,
Near Nanchang Changbei Airport.and high way in city very convinient.
2. Q: Are you a factory or trading company?
A: We are a factory.
3. Q: What certificate do you have?
A: We have CE,ROHS,FCC,TUV ects.
4.Q:What kind of payment do you accept?
A:We accept T/T,Paypal,Escrow,Western Union for samples’ order,only T/T for big orders.
5. Q: How long is the warranty period?
A: All of our products have 18months warranty,also we can provide parts to repaire.
6. Q: What’s the main market of your company?
A: We have customers all over the world.
7. Q: How long will the products’delivery?
A: samples within 2days, big order 7-15days.
