ANON 15HP Highly Working Efficiency Boat Tractor

ANON 15HP Highly Working Efficiency Boat Tractor thumbnail-1
ANON 15HP Highly Working Efficiency Boat Tractor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
Other
Contact Supplier Request Quote Chat Now
Wuhan Anon Tech-Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
as required
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel Other
Usage Farm Tractor
Brand Name ANON
Model Number AN15-A
Place of Origin China

Specifications

1.new boat tractor.
2.suitable for the paddy field cultivation.
3. mountains, plains, hills and lake districts.

  ANON 15HP High Working Efficiency Boat Tractor



Description:

This boat tractor is our new product, the machine frame is boat shaped, a machine frame is arranged in the boat body; a riser at the front end of the machine frame, a gear box on the machine frame positioned at the tail of the boat; a cultivation roller on the gear box; an operating lever at the dynamic force side of the gear box; an armrest is fixed at the front end of the gear box; a left and a right separating operating levers on the surface of the gear box; a mudguard on the gear box in a straddling way; a seat penetrates through the mudguard and is fixed on the gear box; the dynamic force is transferred to a belt pulley through a belt and to the gear box so as to driving the cultivation roller. The boat tractor can be suitable for the paddy field cultivation of different properties in mountains, plains, hills and lake districts. Basic implements for this machine are: disc plough, fertilizer applicator, rake and roller.



Main Technical Parameters

Model

  AN15-A

 Working Efficiency

  0.8-1ha./h
 Engine  JH-1115,diesel
 Power  15HP
 Oil Consumption  180+20g/h

 Walking speed

 20-30km/h,max.40-50km/h

 Overall Dimension

 2700*1900*1360mm
 Cultivating Depth  230 +78mm

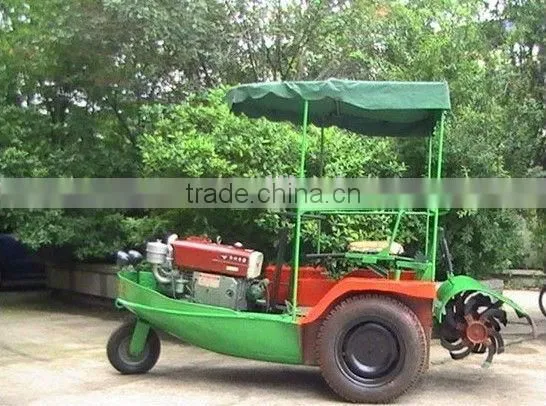

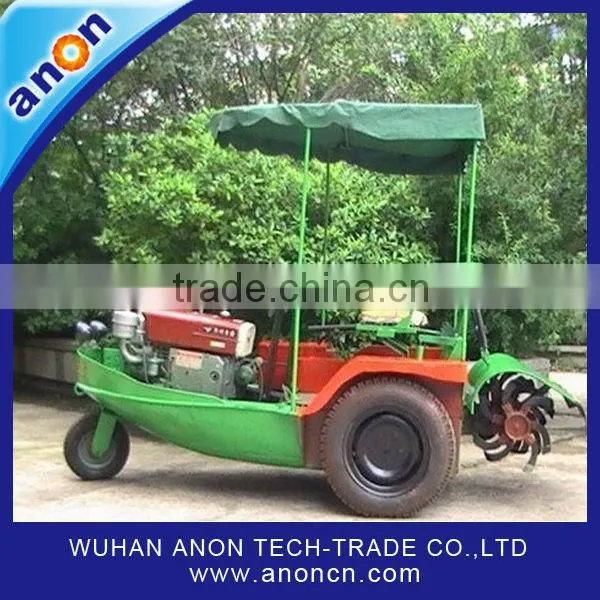

Pictures for referance:
