Help CenterANON Diesel Engine Chipping Machine for Wood With Hydraulic Self Feeding System
Related Products
-
ANON Wood Chipper Machine PriceUS$ 2,200 - 3,700MOQ: 1 Set -
ANON Wood Chipper Shredder Mulcher for SaleUS$ 2,200 - 3,700MOQ: 1 Set
-
ANON Wood Drum ChipperUS$ 2,200 - 3,700MOQ: 1 Set
-
ANON Used Small Wood ChipperUS$ 2,200 - 3,700MOQ: 1 Set
-
ANON Chipping Machine for WoodUS$ 2,200 - 3,700MOQ: 1 Set

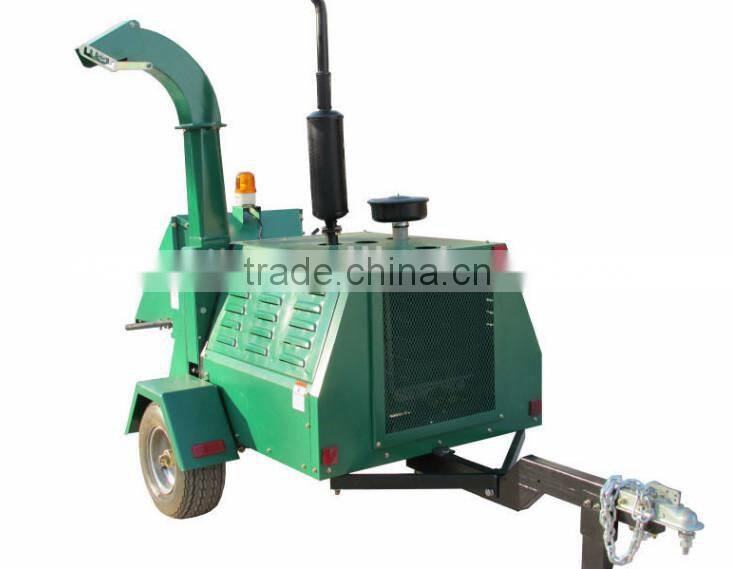

Chipping machine for wood
1. CE certificate was passed.
2. Impressive chipping ability for timber up to 150-200mm in diameter.
2. With a mounted chipping knife that takes "bites" out of wood branches as they are fed into the hopper.
3. It is consist of main machine, flywheel, knife blades, feeder, hydraulic pressure system, etc.
4. Hydraulic powered Feed System which runs off its own self-contained hydraulic tank and pump.You don't need to use your tractor's hydraulics.
5. 3 blades( 2 rotary blades on the flywheel, 1 stationary blade on the machine), easy to change knives.
6. The wood chipper can connect to trailer. It has the option of being transported in the back of a van or on its own bespoke trailer.
7. 360 degree adjustable discharge chute.
8. 2’ball hitch and safety Chains and leaf spring on the axle.
Specifications:
| Model | DWC-18/22(18HP/22HP) | DWC-40 (35HP ) | |
| Type | Single cylinder, | Four cyliders,horizontal, | |
| horizontal,four-stroke | four-stroke | ||
| Rated power | 16.2KW/2200rpm | 25.7KW/2350rpm | |
| Fuel consumption rate | <245KG/KW.h | <238g/KW.h | |
| Engine oil consumption | <1.5g/KW.h | <1.5g/KW.h | |
| Cooled style | Water-cooled:evaporation | Water-cooled | |
| start | Electric start | ||
| Feeding system | Mechanical or hydraulic | hydraulic | |
| Chipping capability | 150mm(max to 200mm) | 200mm | |
| Flywheel diameter | 640mm | ||
| Flywheel weight | 85kgs | ||
| Blades number | 1 stationary blade,2 rotary blades | ||
| Feed hopper inner opening | 200*220mm | ||
| Discharge hood height | 2000mm / longer chute possible | ||
| Rated rpm | 1080 | 1080 | |
| Weight | 650kg | 800kg | |
| Working efficiency | 7-11cbm/h | 9-13cbm/h | |

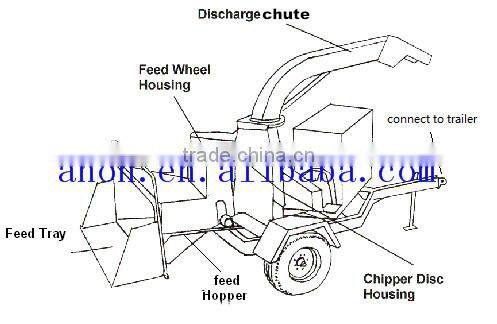

Drawing of Chipping machine for wood
Sales Area of Chipping machine for wood
How to pay for ANON Chipping machine for wood ?
How to do the trading process with Chipping machine for wood ?
Why buy Chipping machine for wood from us ?
1. Superior quality and reasonable price.
2. Send out fast--our goods will be sent out once you make a payment.
3.Professional--we are experts in optical source, development, methods, and handlig.
4. Best service--we will answer your questions as soon as possible and try our best to provide you best service.
Most important is--we will satisfy your reasonable requirement and
manufacture in professional way.
Our services of Chipping machine for wood
Our factory is one of the biggest and the most professional producers for wood chipper in China. With more than 12 years' experience in manufacturing wood chipper from our customers all over the world. We make sure to supply excellent baler with high quality and competitive price.What's more,
the best after-sale service is also avialable.
1. Pre-sale:
We can recommend more suitable machine and give best solutions for you according to
your requirements
2. Sale:
Keep closed contact with workers, supervise production quality and progress.
Booking space before delivery a week ago, then we will give you related documents.
3. After-sale
Vulnerable parts: offer based on their prime cost during one year.
Invulnerable parts: offer for free during one year.
After one year, offer vulnerable and invulnerable parts with factory prices.
