PRODUCT DETAILS
Applications:
1.Buildings outer-wall, curtain wall.
2.Redecoration of old buildings outer-wall.
3.Balconies, installation units,indoor partitions .
4.Signboard.
5. Inner-wall decorating panel, ceilings, advertisement signboard
6.Industrial usage, vehicle bodies

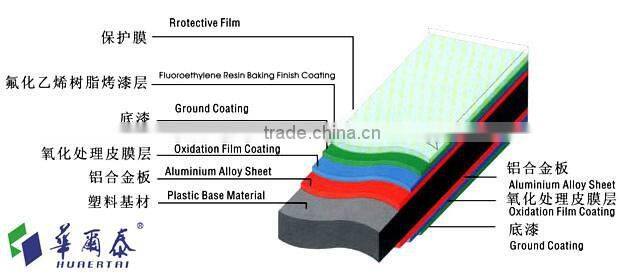

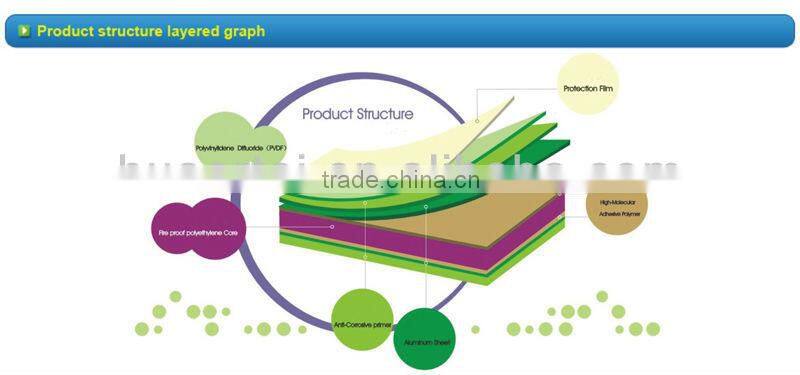

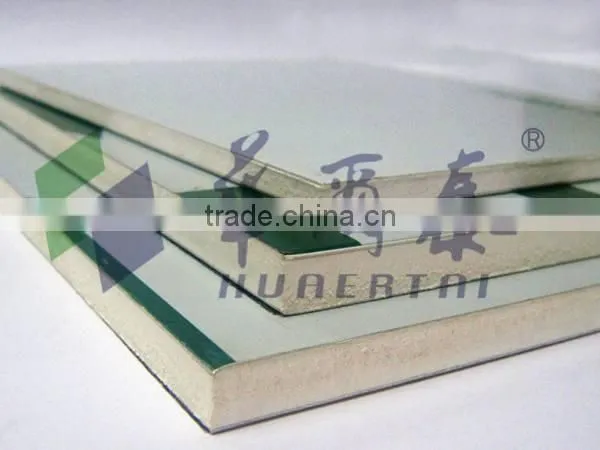

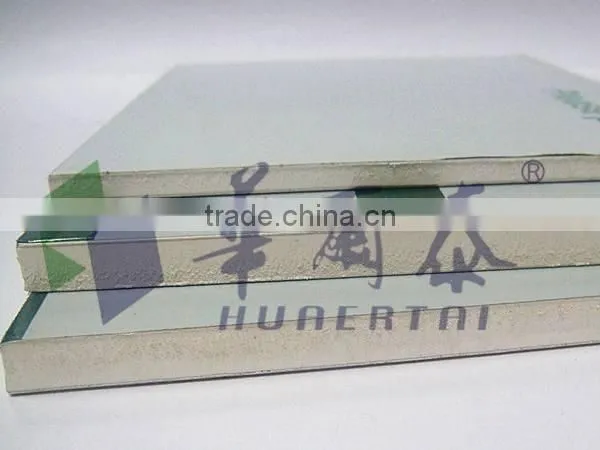

Structure:

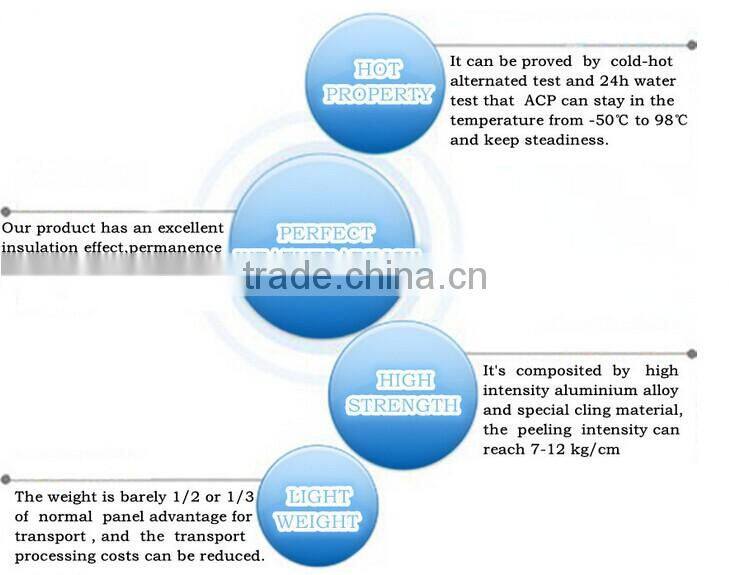

Advantage:
Specifications:
panel thickness |
3mm, 4mm, 5mm, 6mm |
aluminum thickness |
0.1mm to 0.6mm (below the 0.1mm belong to the special size) |
Standard width |
1220mm |
standard length |
2440mm |
special width |
1500mm, 1550mm(part of 4mm panels' width can reach 1250mm) |
special length |
customization (the maximal length is 6 meters) |
COLOR CHART
Notice:
Painting of acp aluminum composite panel is supplied by PPG, Becker
-
choose the color from the above color card of acp aluminum composite panel.
Also, any Pantone colors or Ral colors can be customized.
PE coating of ACP aluminum composite panel lasts for 8 to 10 years.
PVDF coating of ACP aluminum composite panel lasts for 15 to 20 years.
1. Appearance quality | ||||
NO. |
Test item |
Standard index |
Test value |
Single item determination |
1 |
Vestige |
Indistinct |
Indistinct |
Eligible |
2 |
Coating omit |
Not allowed |
No |
Eligible |
3 |
Ripples |
Not allowed |
No |
Eligible |
4 |
Rubbles |
Not allowed |
No |
Eligible |
5 |
Flaw(≤3mm) |
≤3/m2 |
≤3/m2 |
Eligible |
6 |
Scratch |
Not allowed |
No |
Eligible |
7 |
Abrasion |
Not allowed |
No |
Eligible |
8 |
Aberration |
Indistinct |
Indistinct |
Eligible |
2. Dimensions deviation | ||||
NO. |
Test item |
Standard index |
Test value |
Single item determination |
1 |
Length |
±3mm |
0.0mm±1.2mm |
Eligible |
2 |
Width |
±2mm |
0.0mm±1.0mm |
Eligible |
3 |
Thickness |
±0.2mm |
±0.02mm±0.08mm |
Eligible |
4 |
Squareness |
≤5mm |
1.1 mm |
Eligible |
5 |
Edge unstrightness |
≤1mm/m |
0.4 mm/m |
Eligible |
6 |
Warpage |
≤5mm/m |
2.1 mm/m |
Eligible |
Test Report of Coating Specific Performance
NO. |
Test item |
Standard index |
Test value |
Single item determination |
1 |
Coating Thickness |
Min≥23μm Average≥25μm |
Min≥26μm Average27μm |
Eligible |
2 |
Gloss Tolerance |
≤10 |
Gloss |
Eligible |
3 |
Surface Pencil Hardness |
≥HB |
2H |
Eligible |
4 |
Coating Adhesive |
≤2T |
2T |
Eligible |
5 |
Coating Adhesive |
Not Lower Than Class1 |
Class1 |
Eligible |
6 |
Impact Resistance |
≥50kgNaN, No Crack No Depainting |
50kgNaN, No Crack No Depainting |
Eligible |
7 |
Grinding Resistance |
≥5L/μm |
6.4L/μm |
Eligible |
8 |
Boiling Water Resistance |
No Change |
No Change |
Eligible |
9 |
Pullute Resistance |
≤15% |
4.4% |
Eligible |
10 |
Hydrocheoric |
No Change |
No Change |
Eligible |
11 |
Alkaline Resistance |
No abnormity ΔE≤2 |
No abnormity ΔE=0.4 |
Eligible |
12 |
Nitric acid resistance |
No abnormity ΔE=≤5 |
No abnormity ΔE=3.73 |
Eligible |
13 |
Oil rosistance |
No Change |
No Change |
Eligible |
14 |
Solvent Resistance |
No base exposed |
No base exposed |
Eligible |
| 15 | Solvent Resistance | No Change | No Change | Eligible |
| 16 | Scrub Resisitance | No Change ≥10000 times | No Change ≥10000 times | Eligible |

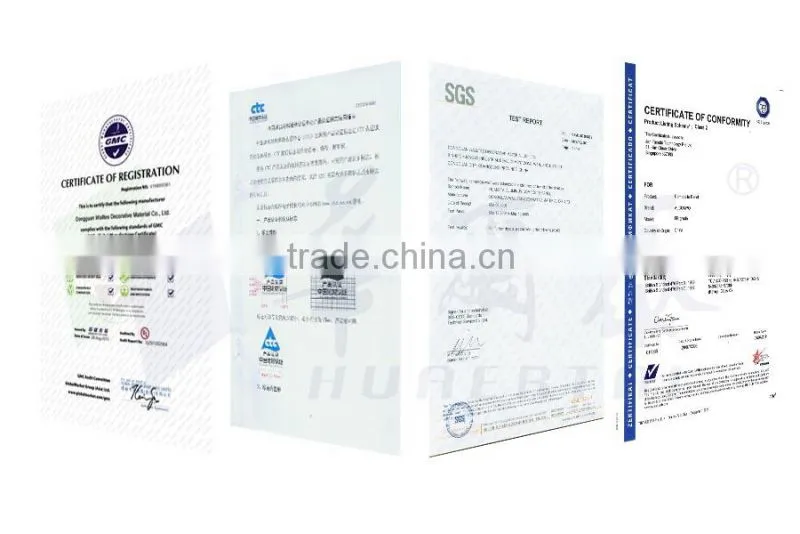

CETIFICATE

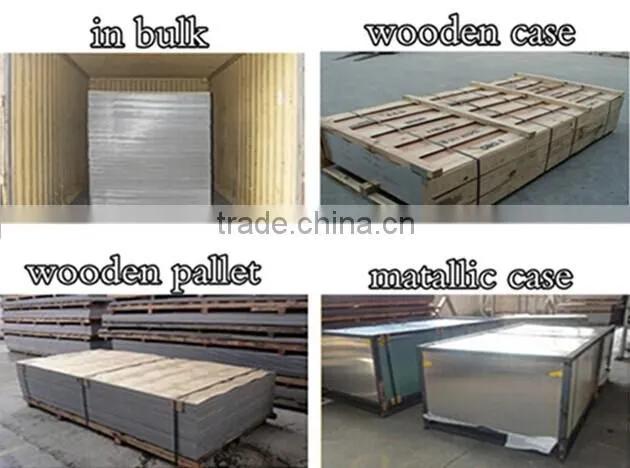

PACKAGE
INSTALLATION PROCESS

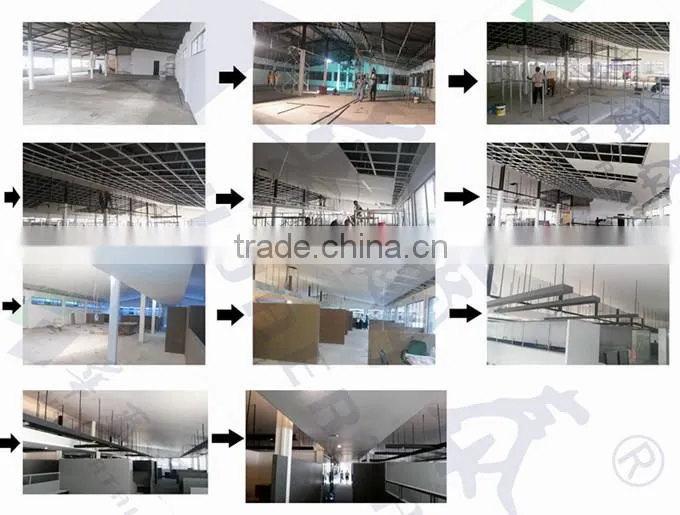

For interior wall cladding:

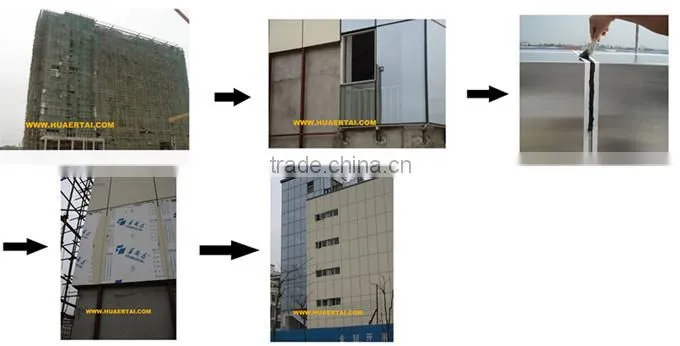

For exterior wall cladding:

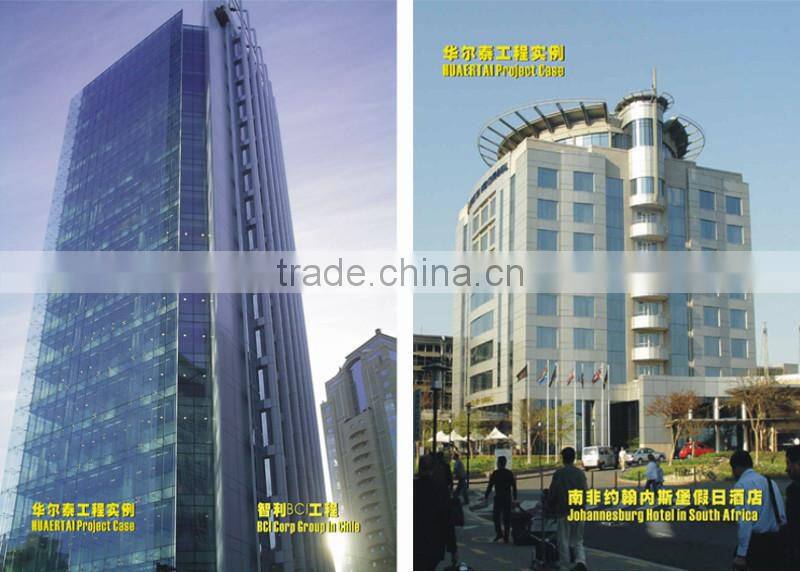

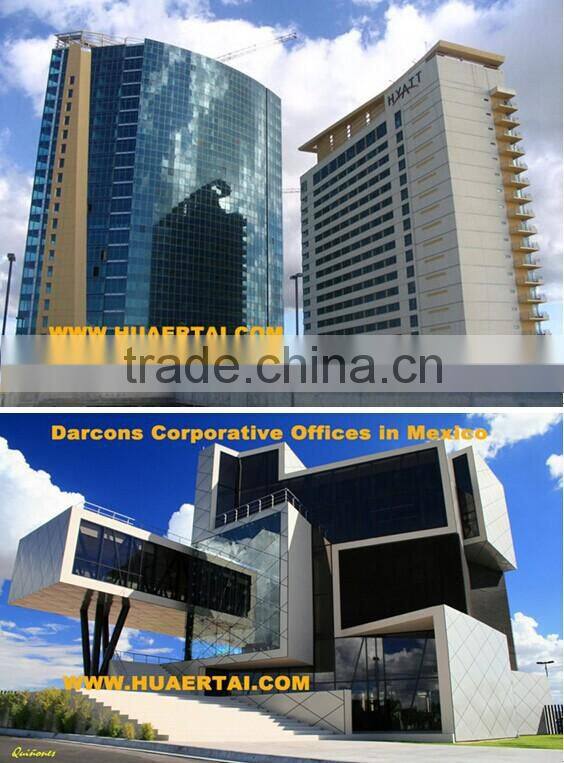

PROJECT CASE

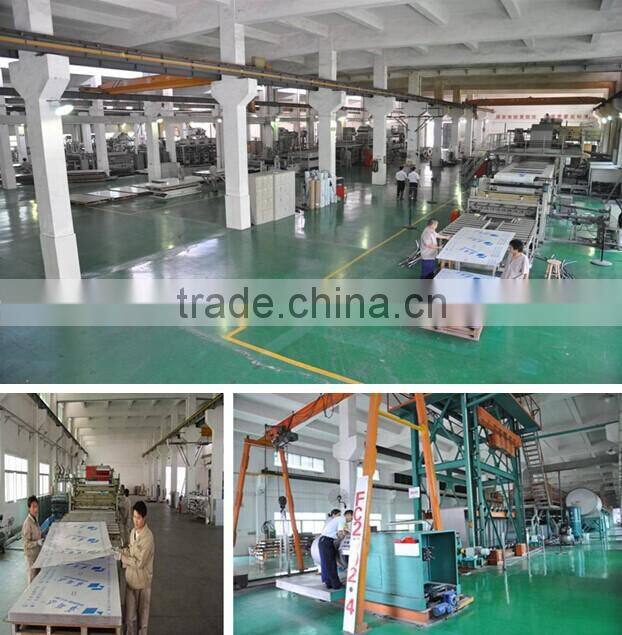

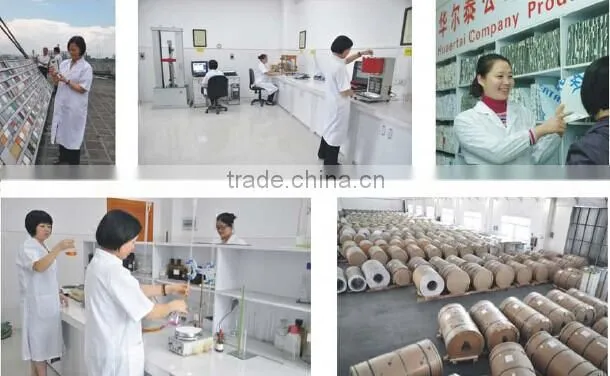

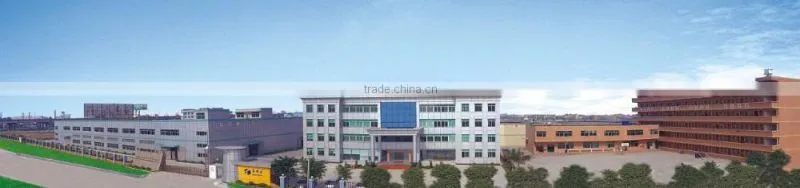

FACTORY
COMPANY INFORMATION

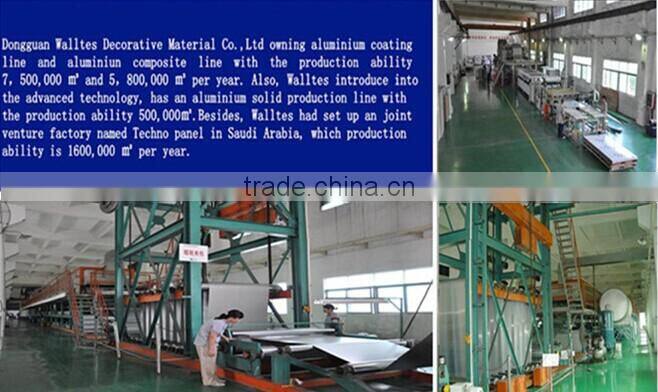

Company overview
CONTRACT INFORMATION
Dongguan Walltes Decorative Material Co.,LTD
Contract : Eve
Tel: +86-769-22716318 QQ: 377062892
Fax: +86-769-89026199 Mobile: 13592753664
Website:
Address: No.6 Huaertai Rode,Xinhe Chuangye Development Zone,
Wanjiang District,Guangdong,P.R.China
Warmly welcome to visit our factory!
