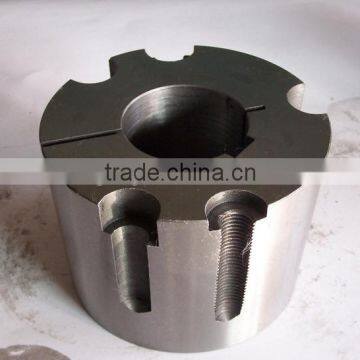

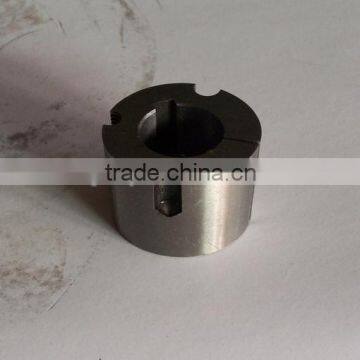

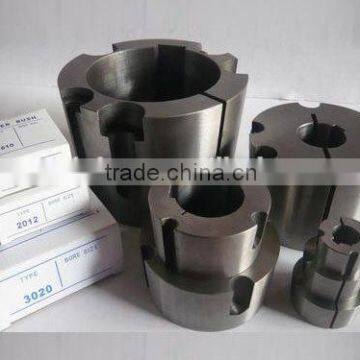

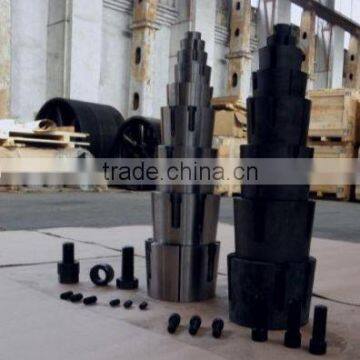

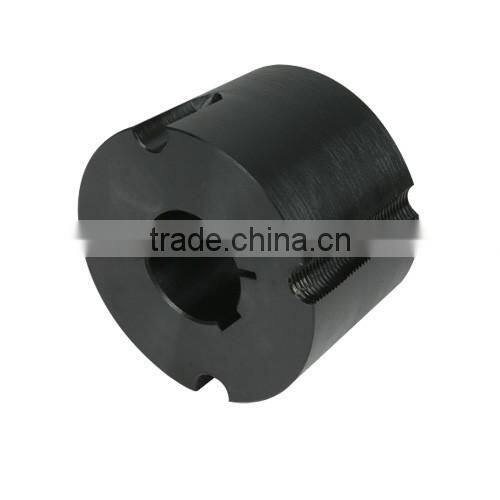

High Quality Taper Bore Bushing
Taper lock bushings for belt pulley
Taper lock bush features:
1. Material: High grade cast iron GG25; Steel C45
2. Surface treatment: Black-phosphated or original color without finishing
3. Easy on-easy off
4. Machined to high precise tolerance
5. A full range of both metric and imperial sizes taper bushes are available
6. Complete short reach range available, for compact lightweight assemblies
We are a leading supplier of Taper lock bushes in China and ISO9001:2008 certificated. Most of our Taper lock bushes are exported to Europe and North America. Excellent quality products with the most competitive price is guaranteed.
Applications:
Our taper bush are used in Construction Industry, Fluid Industry, Automotive Industry, Municipal Industry and so on field.
| taper bushing | ||||
| Type | Bore for mm | Bore for inch | Material | Finished |
| 1008 | 10,11,12,14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25 | 13/16,7/8,15/16,1 | |||
| 1108 | 10,11,12,14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28 | 13/16,7/8,15/16,1,1-1/16,1-1/8 | |||
| 1210 | 11,12,14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28,30,32 | 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4 | |||
| 1215 | 11,12,14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28,30,32 | 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4 | |||
| 1310 | 14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28,30,32 | 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4 | |||
| 1610 | 14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28,30,32,35,38,40,42 | 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2 | |||
| 1615 | 14,16,18 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28,30,32,35,38,40,42 | 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2 | |||
| 2012 | 18, | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 19,20,22,24,25,28,30,32,35,38,40,42,45,48 | 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2 | |||
| 2517 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2 | ||||
| 2525 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 | 1/2,9/16,5/8,11/16,3/4, | Iron casting GG25 1045 |
phosphating |
| 13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2 | ||||
| 3020 | 25,28,30,32,35,38,40,42,45,48,50,55,60 | 7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2,2-1/2,2-1/4,2-15/16,3 | Iron casting GG25 1045 |
phosphating |
| 3030 | 28,30,32,35,38,40,42,45,48,50,55,,65,70,75 | 7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2,2-1/2,2-1/4,2-15/16,3 | Iron casting GG25 1045 |
phosphating |
| 3535 | 35,38,40,42,45,48,50,55,,65,70,75,80,85,90 | 1-3/16,1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2,2-1/2,2-1/4,2-15/16,3,3-1/4,3-1/2, | Iron casting GG25 1045 |
phosphating |
| 4040 | 40,42,45,48,50,55,,65,70,75,80,85,90,95,100 | 1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2,2-1/2,2-1/4,2-15/16,3,3-1/4,3-1/2,4 | Iron casting GG25 1045 |
phosphating |
| 4545 | 55,60,65,70,75,80,85,90,95,100,105,110 | 1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2,2-1/2,2-1/4,2-15/16,3,3-1/4,3-1/2,4,4-1/8.4-1/4,4-1/2 | Iron casting GG25 1045 |
phosphating |
| 5050 | 55,60,65,70,75,80,85,90,95,100,105,110,115,120,125 | 1-7/16,1-1/2,1-5/8,1-3/4,1-3/4,1-7/8,2,2-1/2,2-1/4,2-15/16,3,3-1/4,3-1/2,4,4-1/8.4-1/4,4-1/2,5 | Iron casting GG25 1045 |
phosphating |
If interested in belt pulleys, pls kindly CLICK HERE
MAIN PRODUCTS:
1) Timing Belt Pulley (Synchronous Pulley), Timing Bar, Clamping Plate;
2) Forging, Casting, Stampling Part;
3) V Belt Pulley and Taper Lock Bush; Sprocket, Idler and Plate Wheel;Spur Gear, Bevel Gear, Rack;
4) Shaft Locking Device: could be alternative for Ringfeder, Sati, Chiaravalli, Tollok, etc.;
5) Shaft Coupling:including Miniature couplings, Curved tooth coupling, Chain coupling, HRC coupling, Normex coupling, Type coupling, GE Coupling, torque limiter, Universal Joint;
6) Shaft Collars: including Setscrew Type, Single Split and Double Splits;
7) Timing Belt: including Rubber and PU timing belts for industrial;
8) Other customized Machining Parts according to drawings (OEM).
OUR SERVICE:
1) Competitive price and good quality
2) Used for transmission systems.
3) Excellent performance, long using life
4) Could be developed according to your drawings or data sheet
5) Pakaging:follow the customers' requirements or as our usual package
6) Brand name: per every customer's requirement.
7) Flexible minimum order quantity
8) Sample can be supplied
At the present, Mighty products are mainly expoeted to European and American markets. With the strength of competitive price and excellent quality, we annually export US$200 million, taking the lead place in China.
Every year, we MIGHTY took party in many exhibitions, such as PTC-Asia, Hannover Messe, Canton Fair etc. The above exhibitions are just the latest two years' activities, not all listed.
More advantages:
1,More competitive prices,
2,Shorter delivery date: 35 days.
3,We are the professional manufacturer in the field of Power Trans.Parts,specially for Timing Pulleys.
4,Produce standard and non-standard
5,Strict QC Management:ISO9001:2008,our engineer,Mr.Wang has specialized in the prodcution for over 20 years.
Packaging:
All the products can be packed in cartons,or,you can choose the pallet packing.
MADE IN CHINA can be pressed on wooden cases.Land,air,sea transportation are available.UPS,DHL,TNT,
FedEx and EMS are all supported.
ANY QUESTION, PLS CONTACT ME WITHOUT HESITATION. WE WON'T LET YOU DOWN.
