Help CenterCorn Flour Meal Production Processing Equipment
Related Products
-
5-150 Tons per Day Tasty Low Price Corn Grits MachineUS$ 2,100 - 56,000MOQ: 1 Set -
Corn Meal Grinding Mill MachinesUS$ 2,000 - 30,000MOQ: 1 Set
-
150 Ton per Day Wheat Flour Production Machinery/grain Milling Equipment/flour Mill Machinery PricesUS$ 10,000 - 501,700MOQ: 1 Set
-
100 Ton per Day Automatic Wheat Flour Mill Machinery/flour Grinder/flour Mill Machine Manufacturer Supplier's ChoiceUS$ 10,000 - 383,120MOQ: 1 Set
-
120 Ton per Day Wheat Flour Mill Making Machines in Flour Mill Supplier's ChoiceUS$ 100,000 - 470,000MOQ: 1 Set
About our our company:
Goldrain
Result of a continuous work throughout its history, Goldrain has become the leader in the Chinese milling market.
The Goldrain products line also includes equipment for processing wheat, maize and other cereals. Goldrain supplies a complete line of original and spare parts, rolls and rubber brakes.
Within the competitive market for cereal processing and the growing of globalization, Goldrain make all efforts to offer to its customers not only products with excellent quality and technology, but also personalized projects for specific purposes according to customers requirements, as well as technical assistance, commercial and technical support through highly qualified agricultural and mechanics engineers, who are able to offer proper orientation regarding to the products for each customer, according to their needs.
The Goldrain has the CE certification in the milling cereals business, which enables us to market our products and services worldwide.
There are three processing sections:Cleaning→Milling→Packing
Main machines in cleaning section:
|
High-frequency vibrating screens are used to separate feeds containing solid and crushed ores down to approximately 200μm in size, and are applicable to both perfectly wet and dry grain.
Working principle: |
| |

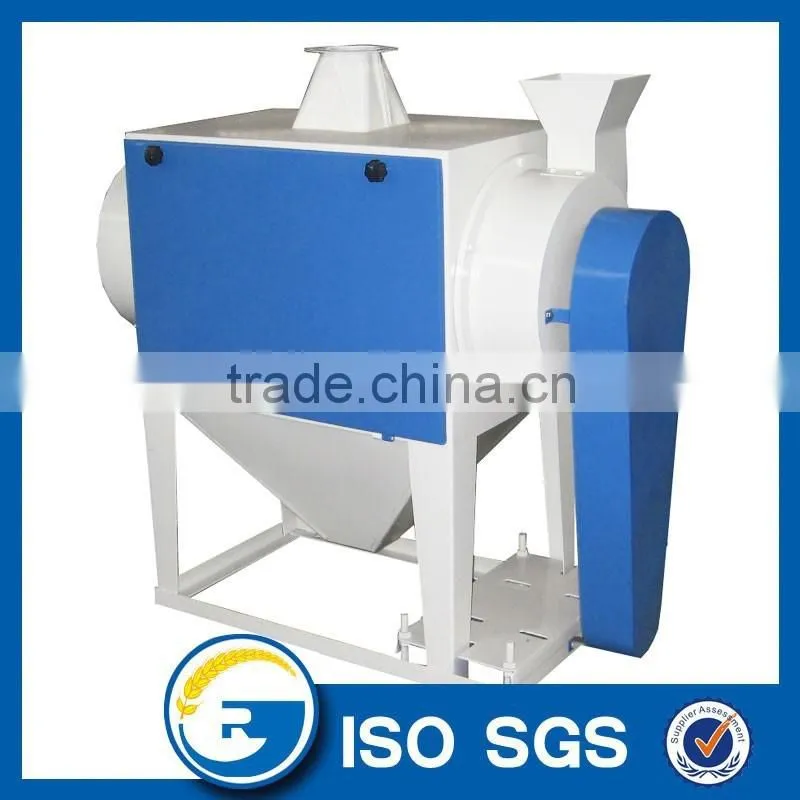

Scourer eliminates the dust, the arista and beards from the kernels furthermore, it crumbles insects and detaches empty kernels and lumps of mud.
Working principle: An intensive friction and rubbing action between the kernels, the cover and the paddle type beaters will reduce the bacterial potential in the flour. |
| |
A destoner is a machine that removes stones and clods from grain material so that they are free from grain.
Working principle: |
| |
Dampener: To produce refined (white) wheat flour, grain is usually tempered, i.e. moisture added to the grain, before milling, to optimize milling efficiency.
Working priciple: It softens the starchy "endosperm" portion of the wheat kernel, the addition of moisture also toughens the bran and ultimately reduces the energy input required to shatter the kernel, while at the same time avoiding the shattering of bran and germ particles to be separated out in this milling process by sieving or sifting.
|
|
Embryo selector It is used to extract embryo from the mixture of the materials. |

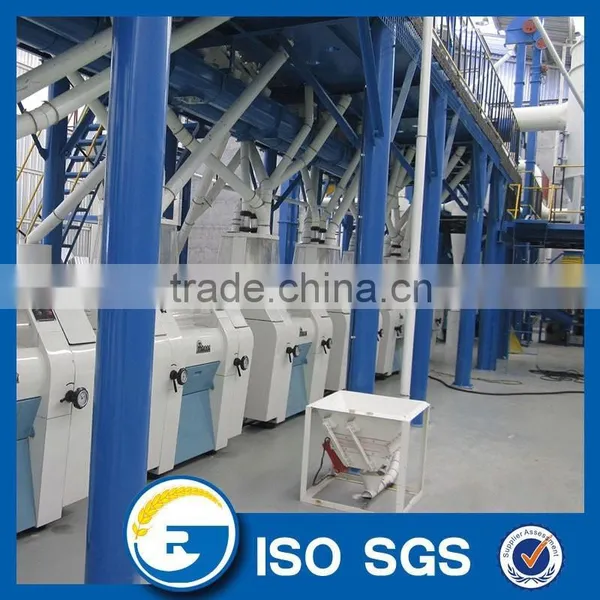

Main machines in milling section:
|

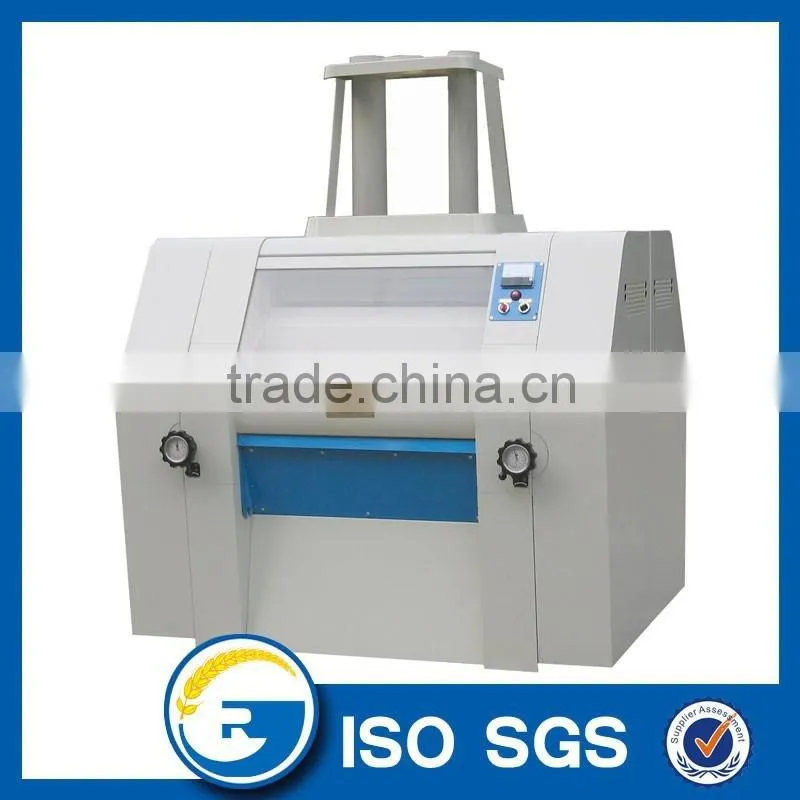

Mill: A mill is a device that breaks solid materials into smaller pieces by grinding, crushing, or cutting. Such comminution is an important unit operation in many processes.
|
|

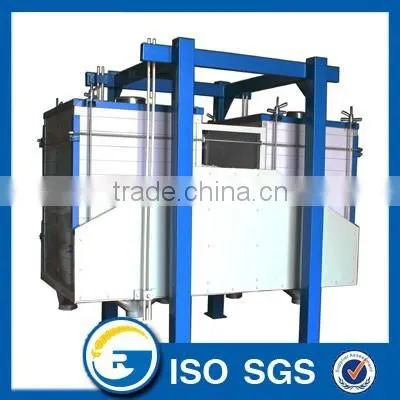

Double Bin Sifter is a milling machine that offers many advantages for sifting processes at high capacities. It provides large sifting area in very limited space. The maximum sifting area can be obtained by using different types of boxes. It is used to sift the broken and floury products and classify different kinds of grains. |
|

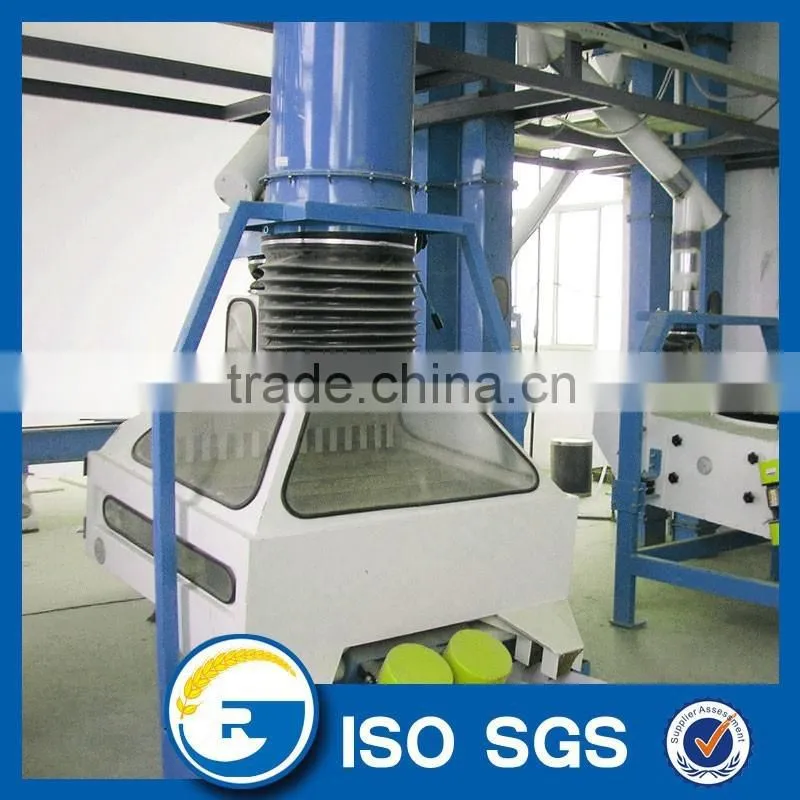

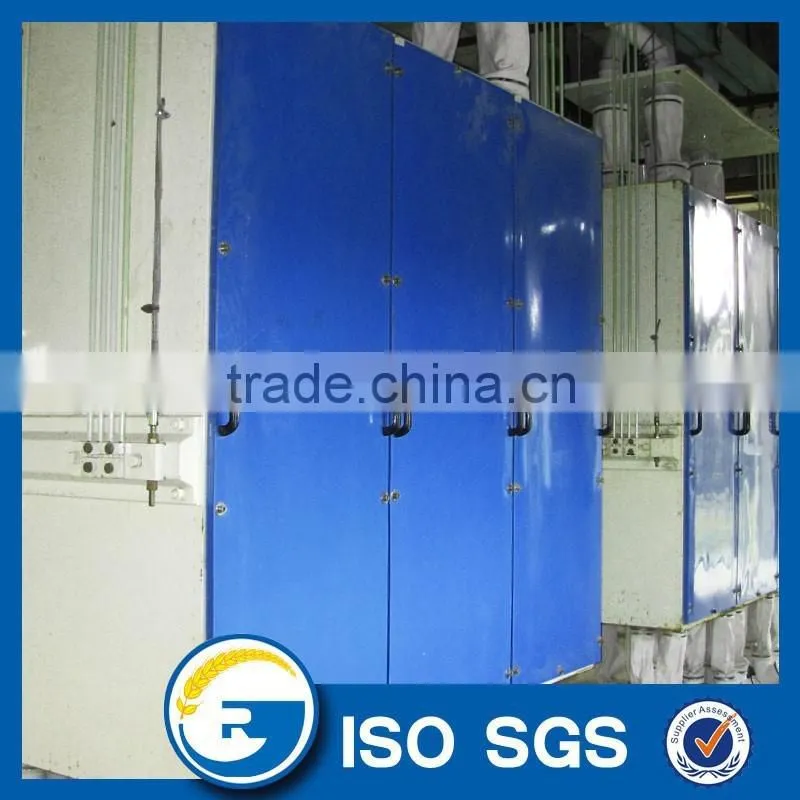

High plansifter: Corn and grains are processed into grits or flour and the mixing material with big and small granules can be screened by the high square plansifter. |
|

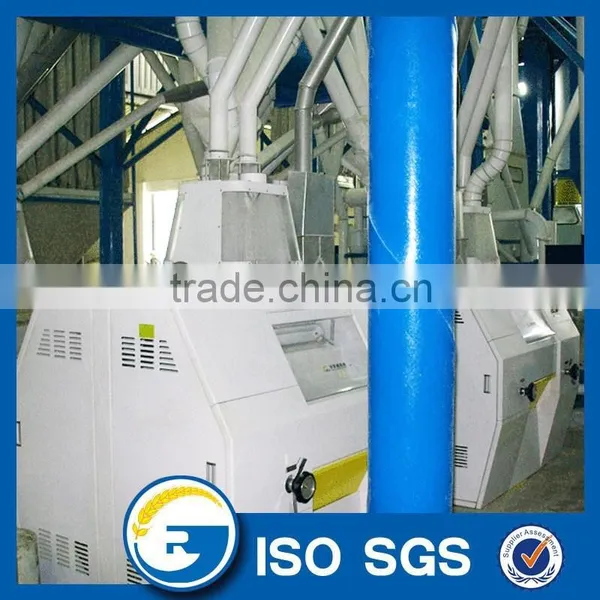

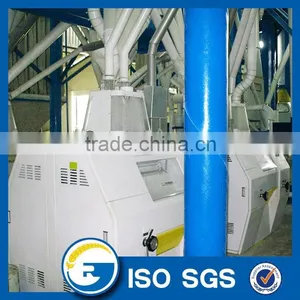

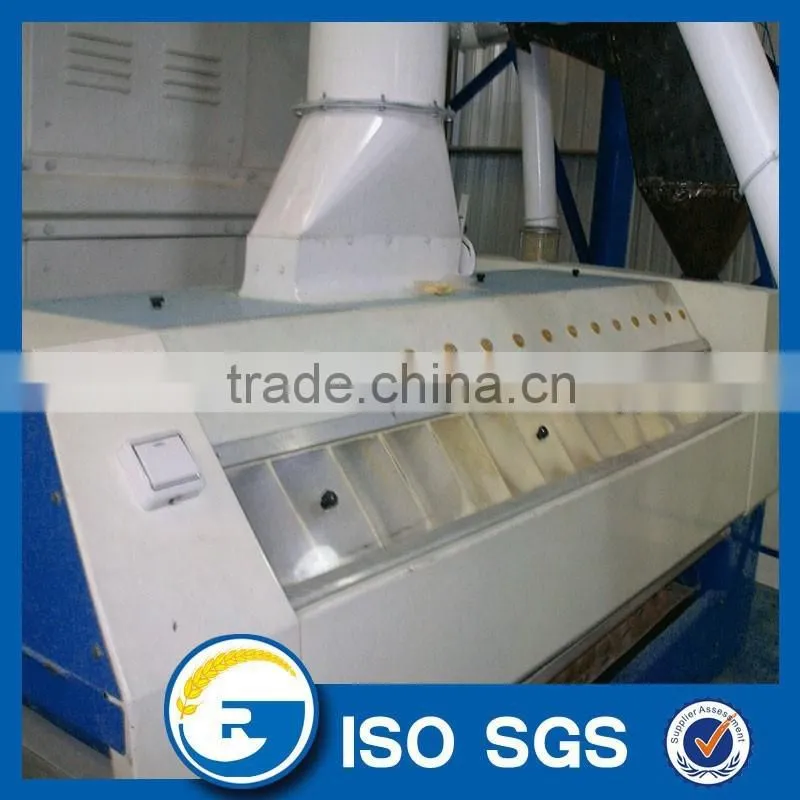

Purifier: the machine is applied in the purification and grading of semolina and fine semolina in common wheat, durum wheat and corn (maize) mills. |
| |

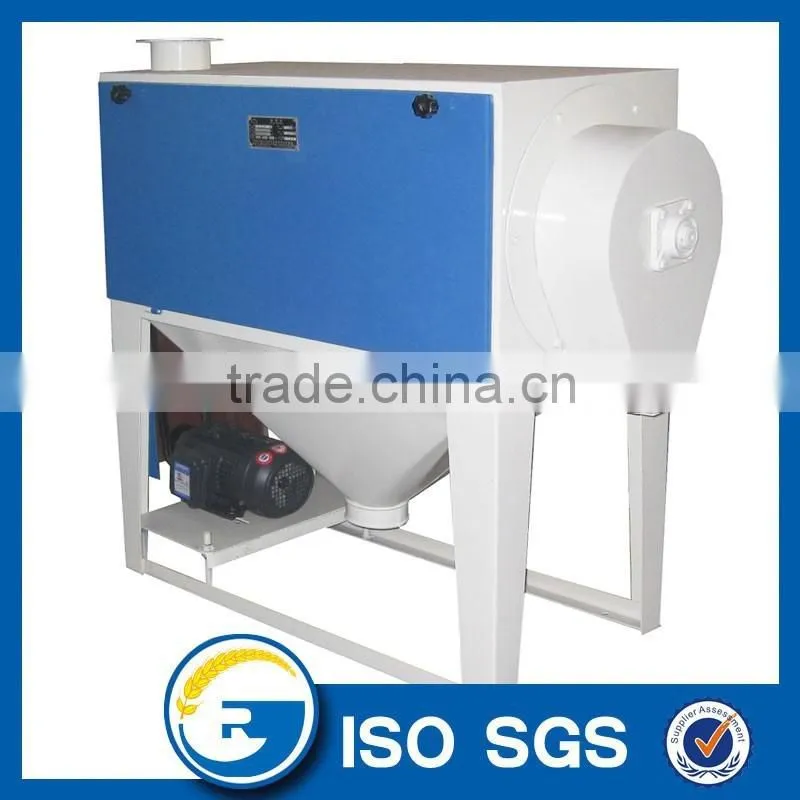

Bran brusher: the machine classifies different sizes of material and removes adhering flour particles from the bran, thus increasing flour yield at the mill. |
Main machine in packing section:
|

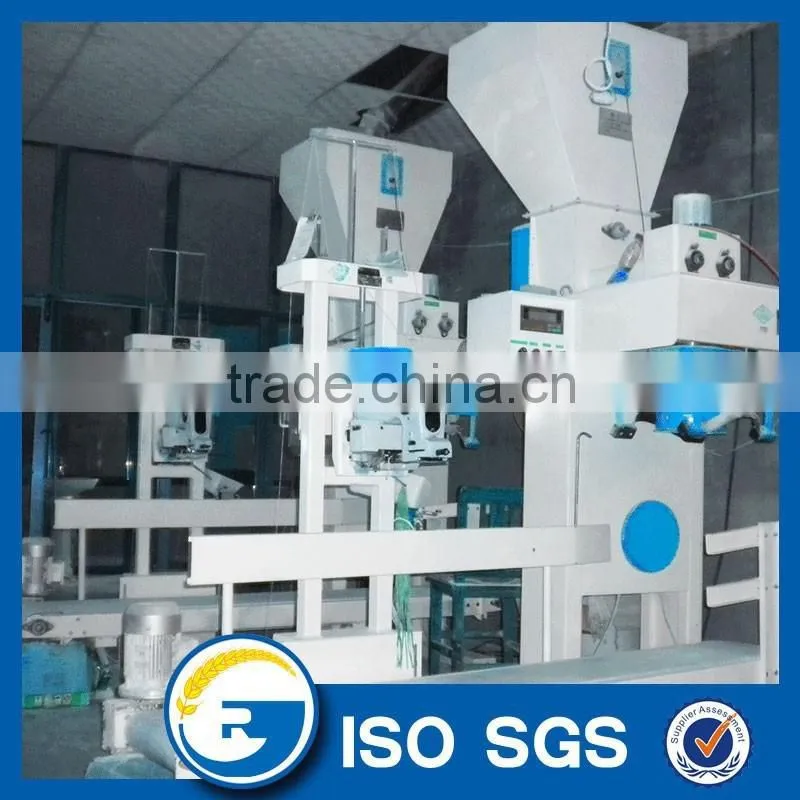

Auto-packing machine: pack the flour or other products into bags of different size. After packing well, the bags will be stacked in order and ready for selling or using. Manual packing and auto-packing method will be available according to customers requirements. |
Maize flour production line
| Type | Capacity | Workshop size | Total power |
| 6FYDT-10 | 10 tons per day | 20*7.5*5.5m | 60KW |
| 6FYDT-20 | 20 tons per day | 25*7.5*5.5m | 70KW |
| 6FYDT-30 | 30 tons per day | 25*7.5*5.5m | 79KW |
| 6FYDT-50 | 50 tons per day | 27*9*7.5m | 136KW |
| 6FYDT-80 | 80 tons per day | 36*9*8m | 230KW |
| 6FYDT-100 | 100 tons per day | 36*10*8m | 285KW |
| 6FYDT-150 | 150 tons per day | 36*10*8m | 374KW |
| 6FYDT-200 | 200 tons per day | 480KW |
Reasons for choosing us:
1) Automatic: The whole process is operated by computer and it saves labor fee.
2) Power-saving: you just need 74Kw continuously working for 24 hours, low power but high efficiency.
3) Simple structure: support stable operation and easy for your check.
4) Steel cover: all our machine adoptes steel cover thicker than other factories.
5) Noise: new technology and special design to reduce noise.
6) Installation: packed by the protect film inner, water-repellent plastic outer.
7) Spare parts: one year spare parts for free.
8) Warranty: we guarantee 20~25 years work normally.
9) Aftersale service: we send technicians to your country install, test and train your workers, 24-hour online service to solute your problem.
If you want to get lower cost and high quality flour mill,please contact us now . We are always here waiting for you!
