50 ton per day full automatic maize corn flour milling machine
Do you know the use of flour mill?
Corn/maize flour milling, wheat flour milling,etc.
Maize flour milling machine
This is 50 ton per day full automatic maize corn flour milling machine.
Raw material: Corn/maize
Suit for: a. Maize grits
b. Maize flour
c. Maize bran
d. Fodder flour
f. Maize germ
There are mainly three steps of flour mill processing
Cleaning---Milling---Packing
1.Cleaning:
Including , a. Gravity classification stoner b. Mightiness temper c. Corn barker d. Embryo selecto.

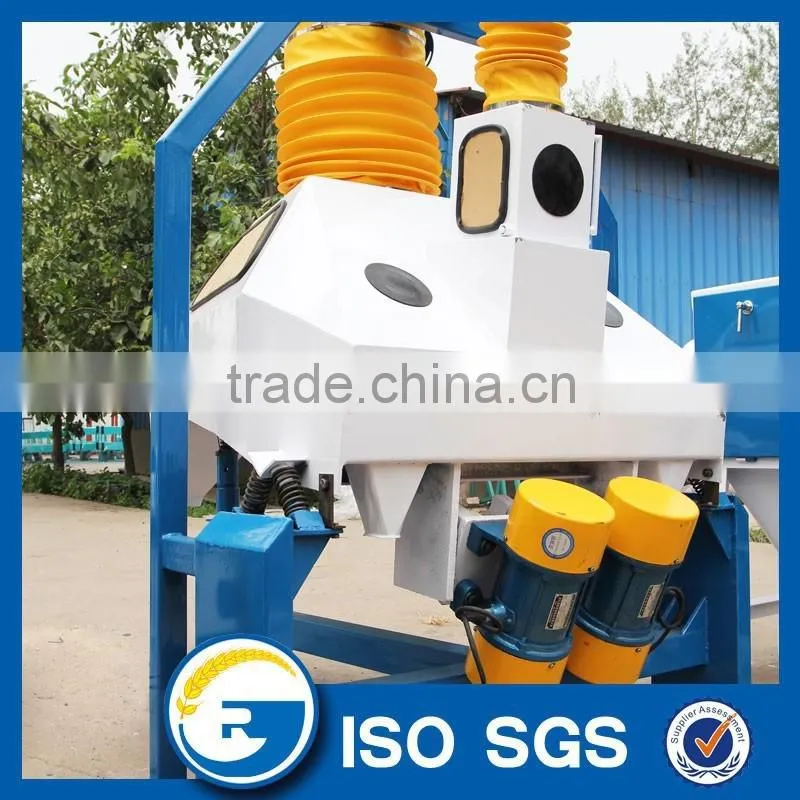

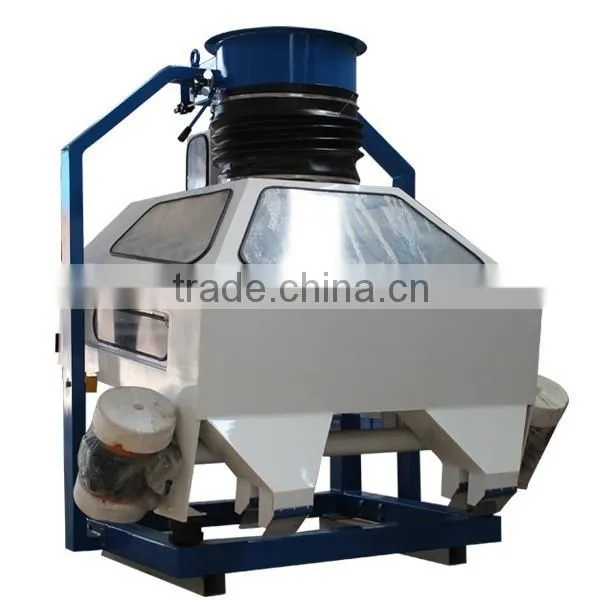

a. Gravity classification stoner b. Mightiness temper

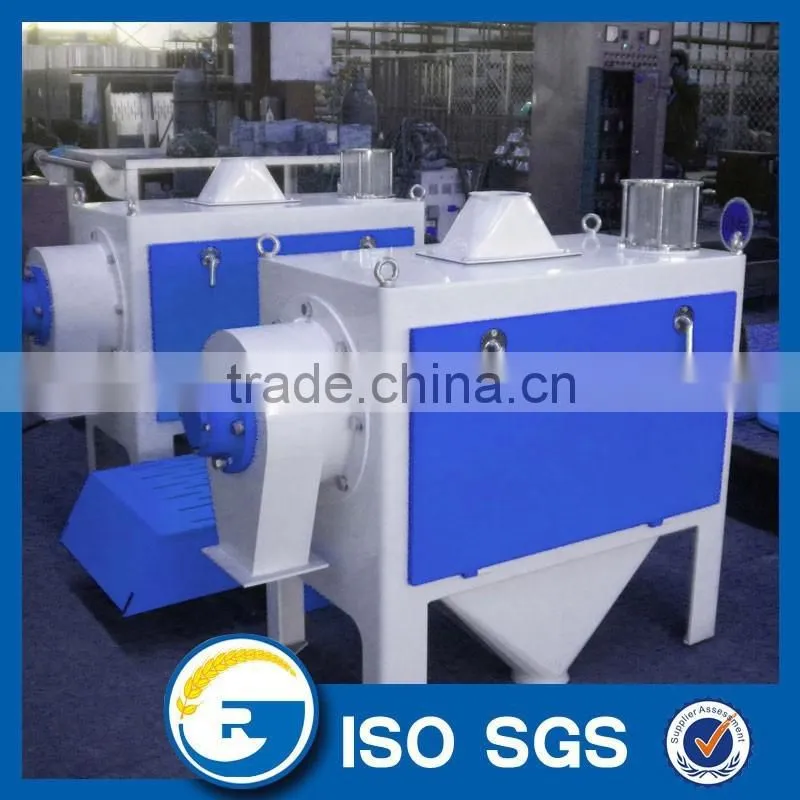

c. Corn barker d. Embryo selecto
In order to remove large,small,light,heavy,stone and metal impurities in raw material.
2.Milling:
Including milling, a. Milling b. Double sifter series.
In order to mill wheat into flour and separate flour from bran.
Mill: mill the wheat to break the integrity by the roller moving
Sifter: to separate the flour and bran,also separate large size and small size to ensure flour quality
a.Milling b. Double sifter series
3.Packing:

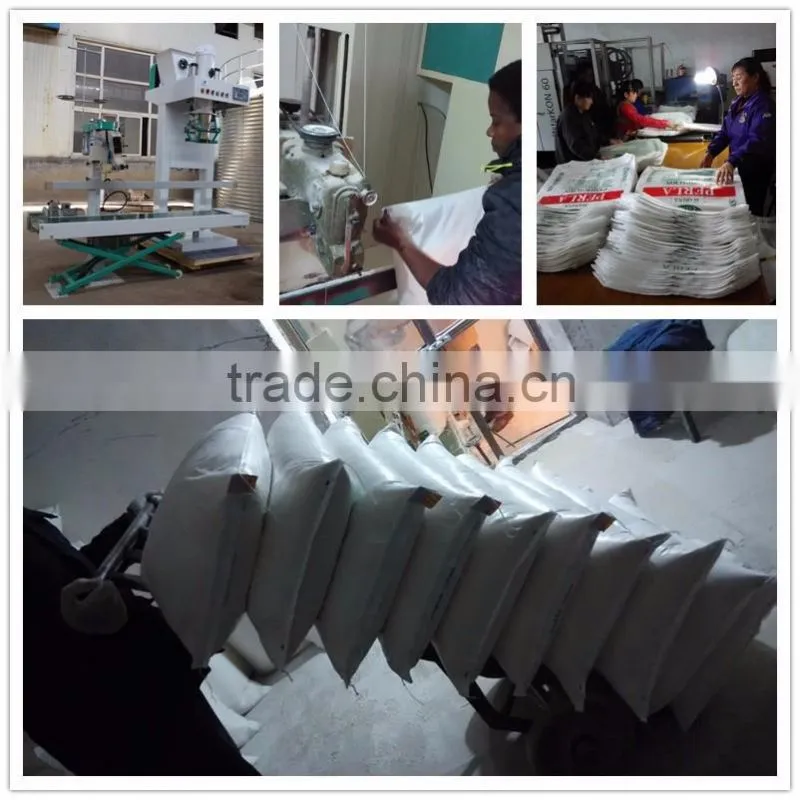

Including Manual Packing Spout, Manual Packing Machine, weighing equipment, auto weighing packing scale(1-5kg,5-25kg,25-50kg), all these can be designed according to requirement.
Do you have workshop?
Whether there is no factory, come and join us as long as you have an idea.
We offer 5t-1000t/d complete trunkey production line for corn flour mill, all parameters are in below chart.
| Model | Dimension (L*W*H)(m) | Weight(t) | Power(kw) | Voltage(v) | Container |
| 6FTS-5 | 5x4x4 | 2 | 33 | 380 | 8 CBM |
| 6FYDT-10 | 16.5x7x4.5 | 4 | 43 | 380 | 40’×1 |
| 6FYDT-15 | 16.5x7x4.5 | 8 | 54 | 380 | 40’×1 |
| 6FYDT-20 | 25x7.5x5.5 | 11 | 70 | 380 | 40’×1 |
| 6FYDT-30 | 25x7.5x5.5 | 13 | 85 | 380 | 40’×1 |
| 6FYDT-50 | 30x10x7.5 | 28 | 152 | 380 | 40’×2 |
| 6FYDT-100 | 36x10x8 | 75 | 245 | 380 | 40’×6 |
| 6FYDT-120 | 36x10x8 | 80 | 260 | 380 | 40’×6 |
| 6FYDT-150 | 30x12x9 | 85 | 340 | 380 | 40’×6 |
| 6FYDT-200 | 39x12x9 | 90 | 450 | 380 | 40’×9 |
| 6FYDT-300 | 45x15x13 | 130 | 600 | 380 | 40’×9 |
| 6FYDT-500 | 48x15x13 | 170 | 870 | 380 | 40’×10 |
| Final products | Usage |
| flour | food |
| germ | oil |
| grits | beer wine |
| bran | animal fodder |
About us ?
Shijiazhuang Goldrain I/E Co.,Ltd is a professional supplier. we supply mainly grain processing equipment covering wheat flour mill plant,maize or corn flour mill plant,silo,bread machines and other food processing equipment.
We have many years experience in food machingnery .welcome to have a disicussion with us.
We offer:
complete set 5-500t/24h wheat/corn flour milling machines
turn-key project, including design, installation, test and training.
one-year free spare parts
one-year quality gurantee
lifetime service
After-sale service for flour mill machine
1.Phone Call Support Service
2.EmailSolution Support Service
3.24H OnlineLive Chat
4.GuideInstallation Technican Dispatching Service

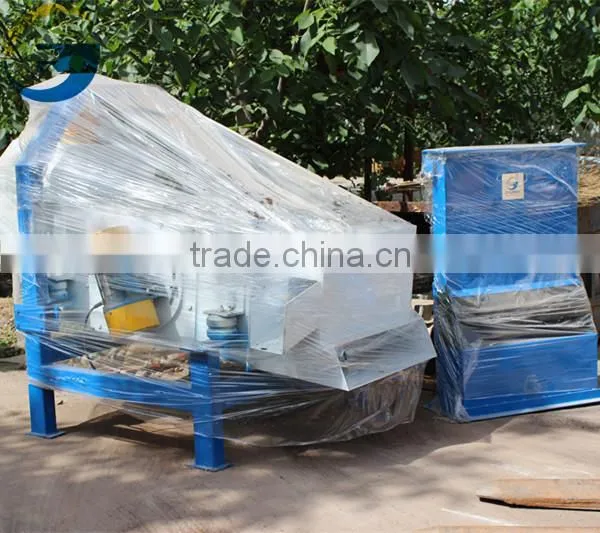

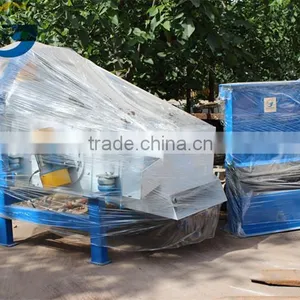

1.We will pack flour mill machine by the protect film inner,water-repellent plastic outside.
2.The wood packing is necessary if send by less than a container.
3.The flour mill machine will fixed by steel rope in the container.
Make sure it is in good condition when arrived destination.
To know more products, please click here.
maize flour mill machinery

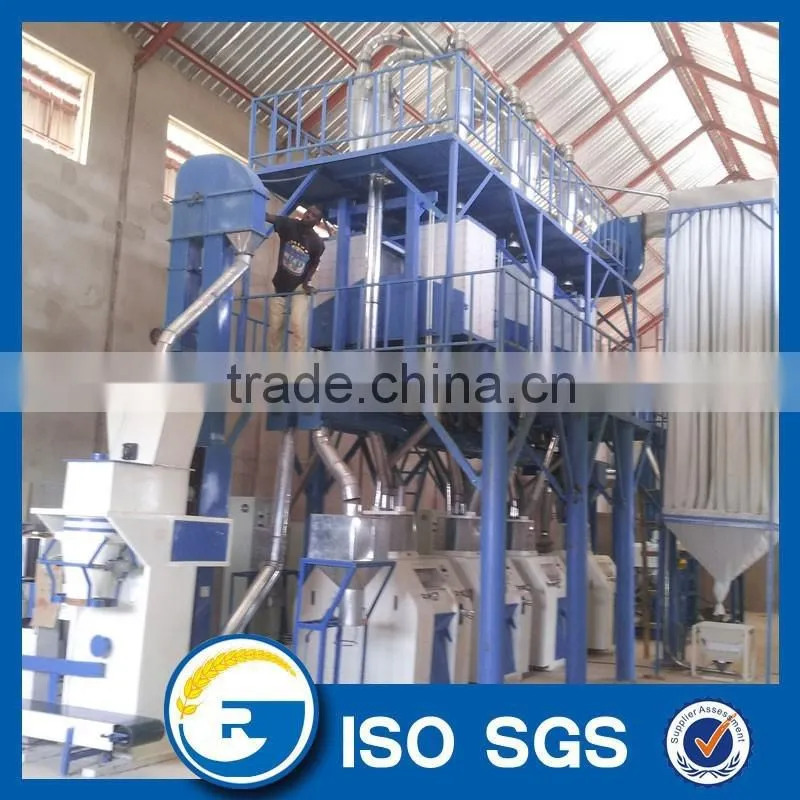

fully automatic 50 ton per day corn flour mill plant
commecial mini wheat flour mill production line
1.Q:Which kind flour mill you can processed? And the output?
A: We can offer wheat flour mill and maize / corn flour mill with the capacity 5T/24H ------1000T/24H .
2.Q: What is the basic processing step?
A: Full automatic line :
Cleaning the raw material------Milling the material into flour--------Packing the flour into bags.
3.Q:Which kind of wheat we can use in the processing line?
A: Durum wheat, Hard wheat, Soft wheat.
4.Q:Which kind final products we can get form the wheat flour mill? And the usage of?the?products?
A: Semolina(very high gluten)-----Pasta
Strong flour (gluten >13%)------Bread
Plain flour (gluten 9%-12%)-------Noodle,Steamed bread
Soft flour (gluten<8%)------Cake ,Biscuit
5.Q :Which kind final products we can get from the maize / corn flour mill?
A: Maize flour, maize grits (meal),maize germ, bran and animal fodder .
Any questions, please do not hesitate to contact us!
Shijiazhuang Goldrain I/E Co.,Ltd. is your best choice.
