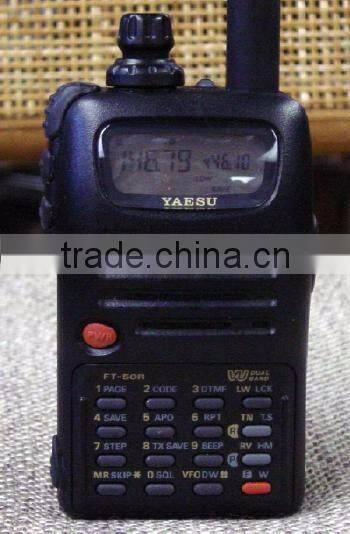

YAESU FT-50R AMATEUR HAM RADIO

YAESU FT-50R AMATEUR HAM RADIO thumbnail-1
YAESU FT-50R AMATEUR HAM RADIO thumbnail-2

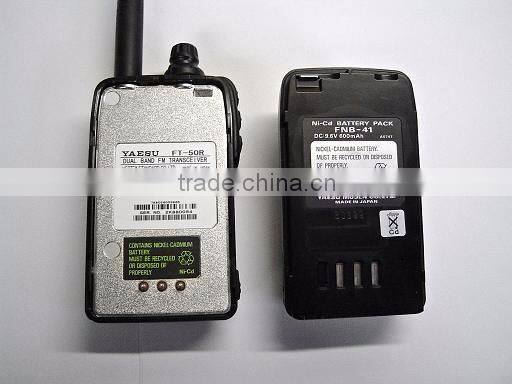

YAESU FT-50R AMATEUR HAM RADIO photo-1

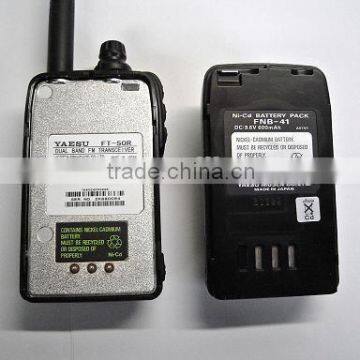

YAESU FT-50R AMATEUR HAM RADIO photo-2
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
YAESU FT-50R
Model Number:
YAESU FT-50R
Contact Supplier Request Quote Chat Now
Quanzhou XD Wireless Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name YAESU FT-50R
Model Number YAESU FT-50R
Type Handheld
Dimensions 160*43*143mm
Frequency Range 136-174mhz 400-520mhz
Storage Channel 128 Channels
Talk Range 3-5KM

YAESU FT-50R AMATEUR HAM RADIO



FT-50R Specifications



GENERAL
Frequency Range Receive:
 76 - 200 MHz
0
 300 - 540 MHz
0
 590 - 999 MHz (Cellular Blocked)
Frequency Range Transmit:
 144 - 148 MHz
0
 430 - 450 MHz
Channel Steps:
 5/10/12.5/15/20/25 & 5 kHz
Repeater Shift:
 600 kHz (VHF)
0
 1.6/5.0/7.6 MHz (UHF)
Emission Type:
 F2, F3
Supply Voltage:
 4 to 16 VDC
Current Consumption:
 150 uA (Auto Power Off)
0
 24 mA (Standby, Saver On)
0
 200 mA (RX @9.6V w/500mW AF)
0
 55 mA (RX @9.6V squelched)
0
 1.5 A (TX 5W VHF)
0
 1.6 A (TX 5W UHF)
Antenna Impedance:
 50 Ohm SMA Type
Case Size:
 2.2 (W) x 3.9 (H) x 1.2 (D) in. (57 x 99 x 30 mm)
Weight:
 11.5 oz. (325 g.)
0
RECEIVER
Circuit Type:
 Double-conversion superheterodyne (VHF/UHF)
IFs: 1st:
 45.1 MHz & 455 kHz
Sensitivity(12dB SINAD):
 0.16 uV (VHF)
0
 0.18  (UHF)
Adjacent Channel Selectivity:
 >70 dB (VHF)
0
 >65 dB (UHF)
Intermodulation:
 65 dB
AF Output @9.6V, 10% THD:
 0.5 W @ 8 Ohm
0
TRANSMITTER
RF Power Output (@9.6V):
 5, 2.8, 1 & 0.1 watts (Approx.)
Frequency Stability:
 better than 5 ppm
Modulation Type:
 Variable Reactance
Maximum Deviation:
 5 kHz
FM Noise (@1 kHz):
 Better than 40 dB
Spurious Emission:
 >60 dB below carrier
AF Distortion:
 <5%, w/3.0 kHz deviation (USA version), 3.5 kHz deviation (other)
Microphone Impedance:
 2 k Ohm condenser
0
Specifications are subject to change without notice, and are guaranteed within amateur bands only.
Frequency ranges and repeater shift vary according to transceiver version.
