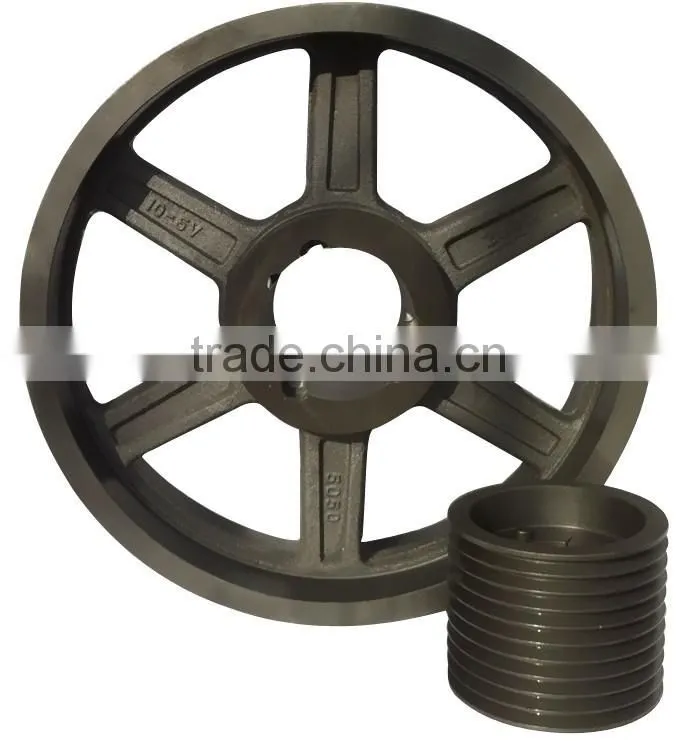

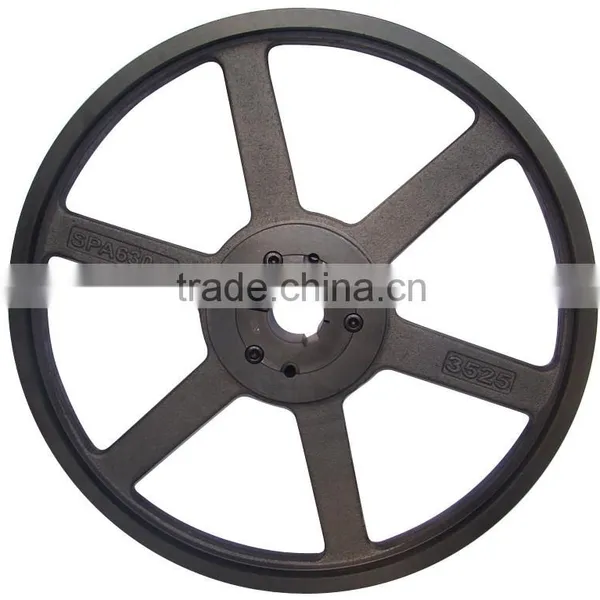

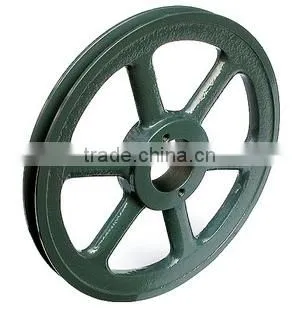

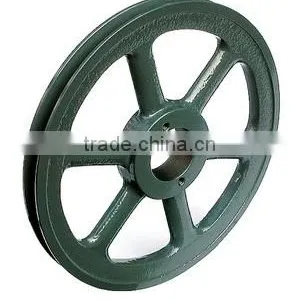

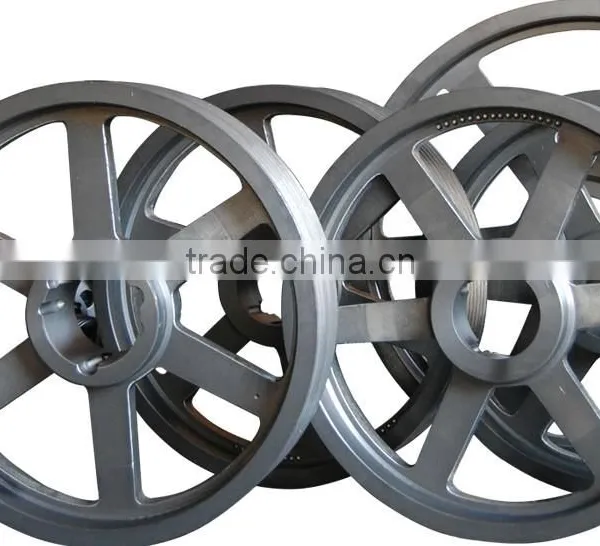

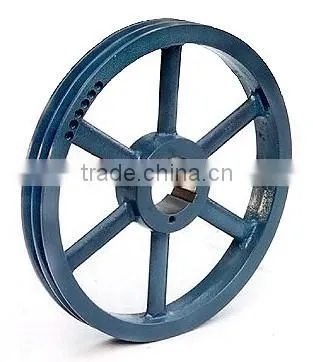

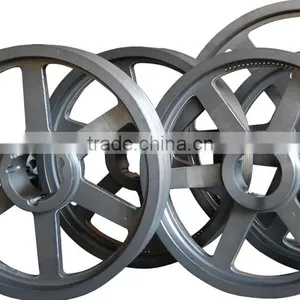

poly groove belt pulley
taper lock timing belt pulley
Specifications:
1.Material: Aluminium alloy, Carton steel, Cast iron, Stainless steel;
2.Surface treament: Anodic oxidation, Blackening, Zinc Plating;
3.Teeth Number from 9 to 216; O.D. from 10mm to 1000mm;
Timing Belts are one of the most important part of Power Transmission drives.
They exhibit important properties such as fixed speed ratio, no re-tensioning after installation, low maintenance with wide variety of power transmission capacities and drive speeds. There are two main types of timing belt pulleys, they are to suit the classical timing belt and the metric HTD timing belts.
Classical timing belt pulleys are imperial in their measurements, have a square profile and use the designations XL, L, H, XH & XXH, while the metric HTD pulleys have rounded profiled teeth and their designations are 3M, 5M, 8M and 14M.
1.Teeth profile
ISO 5294 Straight-bore timing belt pulley _____MXL XL L
ISO 5294 Taper-bore timing belt pulley _______L H XH
DIN 7721 Straight-bore timing belt pulley______T2.5 T5 T10
Straight-bore timing belt pulley______________AT5 AT10
HTD Straight-bore timing belt pulley__________3M 5M 8M 14M
HTD Taper-bore timing belt pulley___________5M 8M 14M
HTD Timing pulley bar____________________3M 5M 8M
DIN 7721 Timing pulley bar________________T2.5 T5 T10 AT5 AT10
2.Materials: Aluminum,Steel C45,Copper, Cat Iron,Poly,POM etc.
3.Surface treatment:Black oxidizing,Phosphating,Anodizing,Nickel-plated,Zinc-plated etc.
4.Bore: Pilot bore, Taper bore and Customized bore.
5.Equipment:Hobbing machine,Drilling machine,CNC machine,Milling machine,Gear shaper,Grinder etc.
6.Tolerance: As per customer's requirement.
7.OEM and ODM orders are welcome
Mighty advantages:
1,More competitive prices,
2,Shorter delivery date: 35 days.
3,We are the professional manufacturer in the field of Power Trans.Parts,specially for Timing Pulleys.
4,Produce standard and non-standard
5,Strict QC Management:ISO9001:2008,our engineer,Mr.Wang has specialized in the prodcution for over 20 years.
Packiaging:
All the products can be packed in cartons,or,you can choose the pallet packing.
MADE IN CHINA can be pressed on wooden cases.Land,air,sea transportation are available.UPS,DHL,TNT,FedEx and EMS are all supported.
Any question or inquiry, pls contact us without hesitate, we'll try our best to help you!
