Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > WOUXUN KG-801, UHF 400-470 DTMF Scrambler Handheld Radio, Portable Encrypt Secure

WOUXUN KG-801, UHF 400-470 DTMF Scrambler Handheld Radio, Portable Encrypt Secure

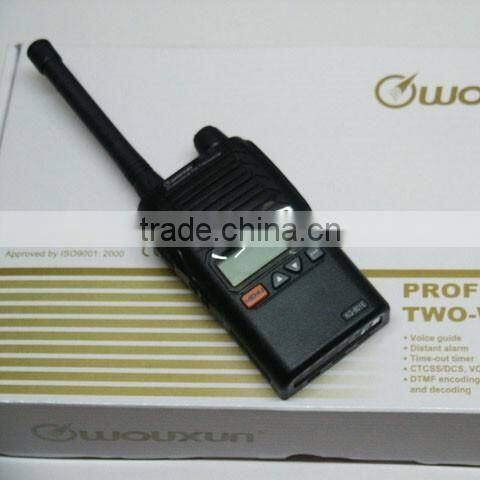

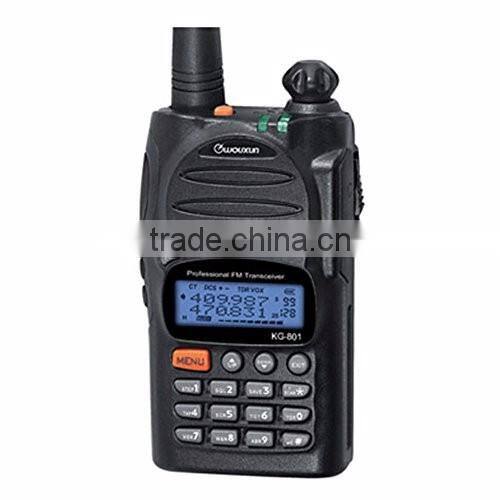

WOUXUN KG-801, UHF 400-470 DTMF Scrambler Handheld Radio, Portable Encrypt Secure photo-1
WOUXUN KG-801, UHF 400-470 DTMF Scrambler Handheld Radio, Portable Encrypt Secure photo-2

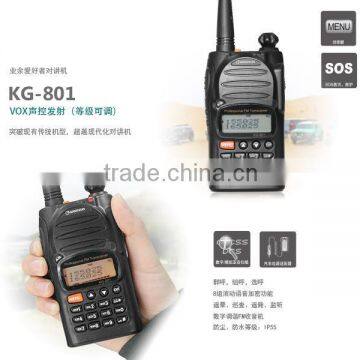

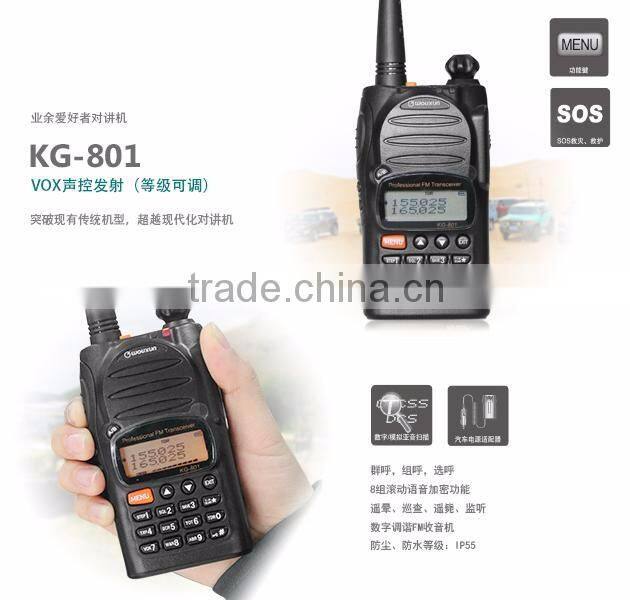

WOUXUN KG-801, UHF 400-470 DTMF Scrambler Handheld Radio, Portable Encrypt Secure photo-3
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WOUXUN KG-801
Model Number:
WOUXUN KG-801
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name WOUXUN KG-801
Model Number WOUXUN KG-801
Type Handheld
Dimensions 114*52*29.5MM
Frequency Range 136-174MHz 400-470MHz
Storage Channel 128
Talk Range 5-8km





WOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secure

Product Description



Key Features :

- UHF Dual frequencies
- Dual display and standby modes
- 128 memory channels
- 8 groups scrambler
- Channel name edit available
- Output power UHF 4W/1W
- High/Low power can changeable by top key
- VOX (Level adjustable)
- DTMF encoding and DTMF decoding
- 105 groups D.C.S/50 groups CTCSS
- DCS/CTCSS of RX and TX can be set respectively
- Reverse frequency function
- Busy channel lockout
- Distant alarm
- ANI (Caller ID)
- Multi scan mode (TO/CO/SE)
- Inspection, monitor, stun, kill and emergency alarm
- All calls, group calls and selective calls
- Calling ring and ring overtime auto answer
- Multi silent mode (QT/QT A DT/QTXDT)
- Channel steps (5K/6.25K/10K/12.5K/25K)
- Wide/Narrow bandwidth selection (25KHz/12.5KHz)

Technical specifications:







Frequency Range

UHF: 400-470MHz

Channel Capacity

128

Channel Spacing

25/12.5KHz

Maximum Deviation

±5KHz to 25KHz    ±2.5KHz to 12.5KHz

Frequency Stability

±2.0ppm

Operating Voltage

7.4V

Operating Temperature

 -30 ℃ ~ +60 ℃

Battery

1400m A h(Li-ion)

Standby Current

50m A

A ntenna Impedance

50Ω

Dimension(without antenna & battery(L×W×H)

105×62×39(mm)

Weight(with antenna & battery)

260g

Transmitter

RF Power Output

      UHF: 4W/1W

Modulation

16K F3E/11K  F3E

Spurious and Harmonious

-36dBm < 1GHz  -30dBm > 1GHz

FM Noise

40dB

Adjacent Channel Power

70dB/60dB

Audio Distortion

≤ 5 %

Receiver

Sensitivity(12dB SIN A D)

0.25μV

Selectivity

60dB

Intermodulation

60dB

Spurious Response Rejection

65dB/70dB

Audio Power Output

500mW

Audio Distortion

≤ 3 % (0.5W)

 WOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secureWOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secureWOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secure







 WOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secureWOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secureWOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secureWOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secureWOUXUN KG-801, UHF 400-470 DTMF Scrambler handheld radio, portable encrypt secure
