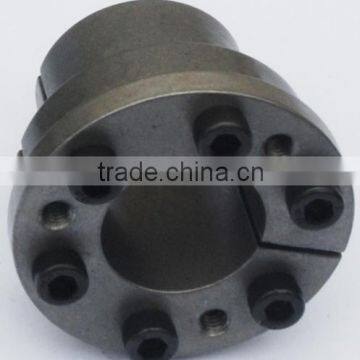

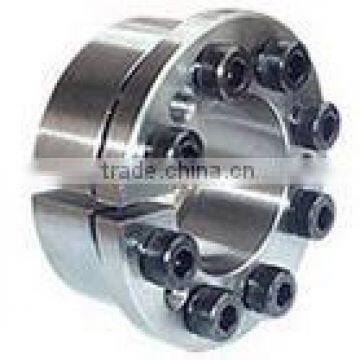

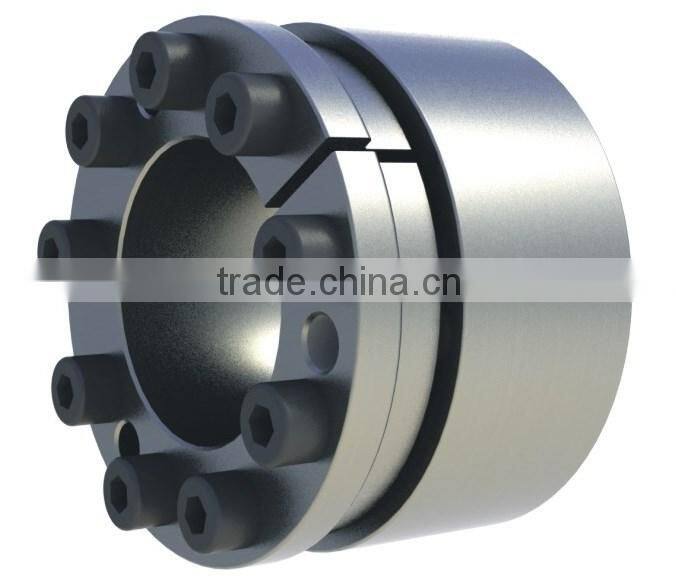

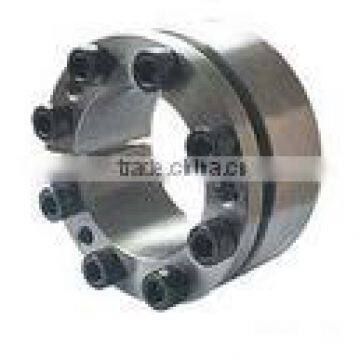

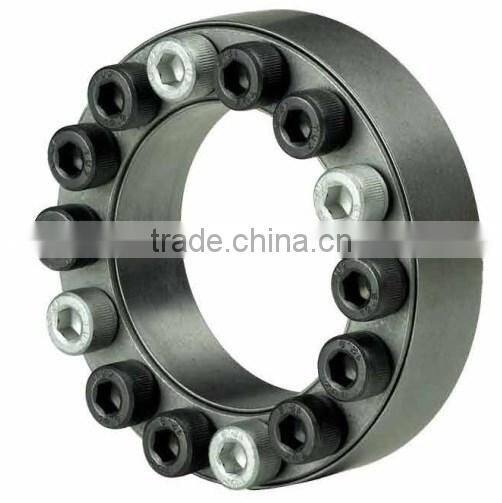

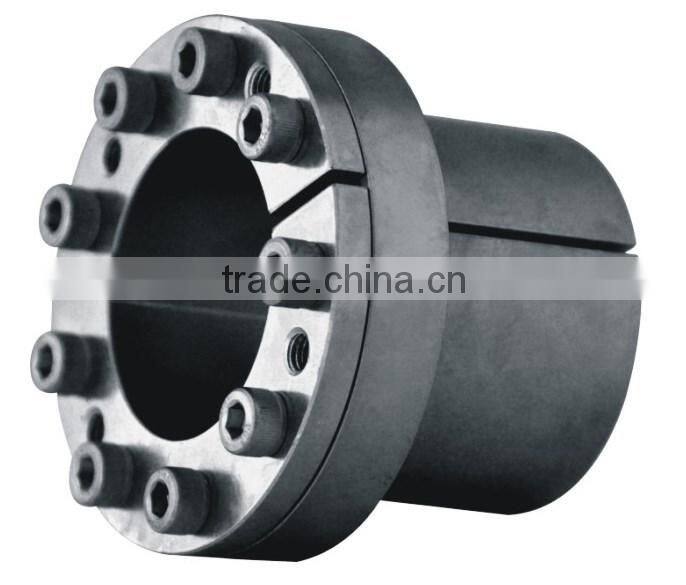

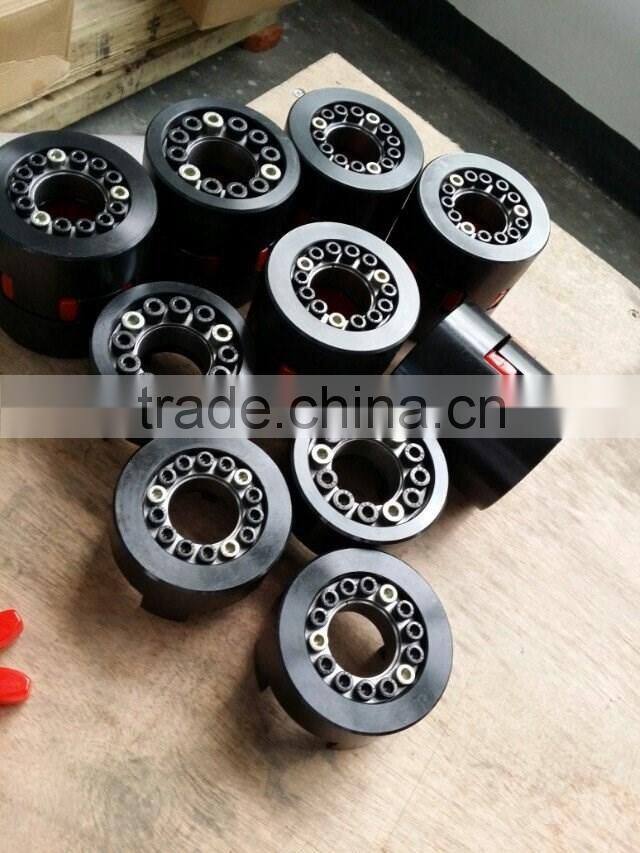

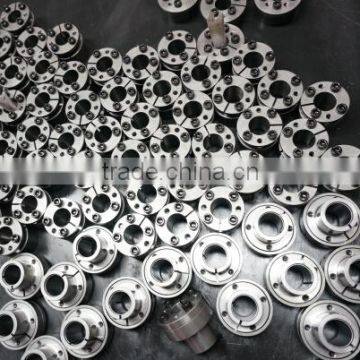

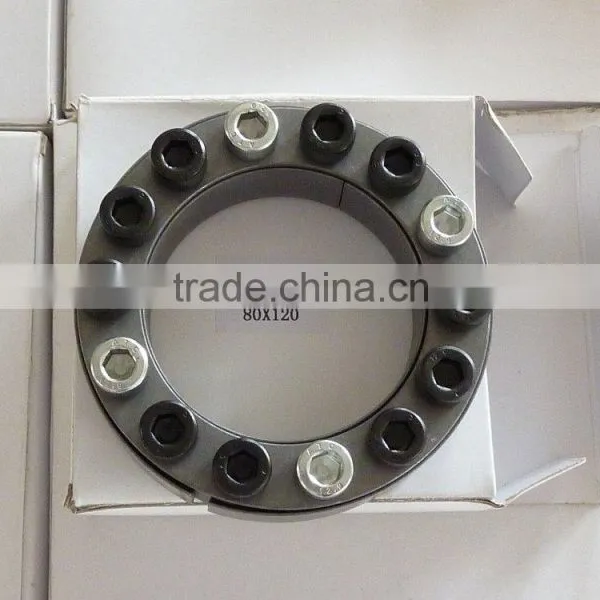

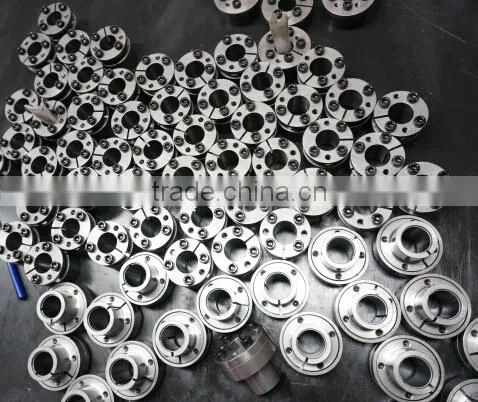

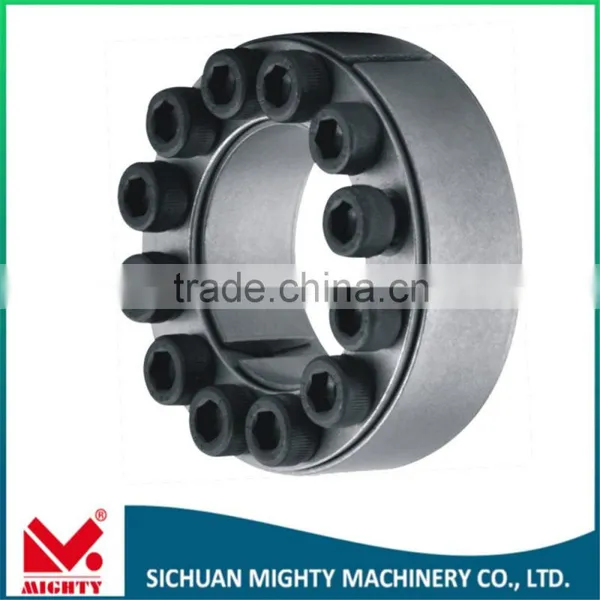

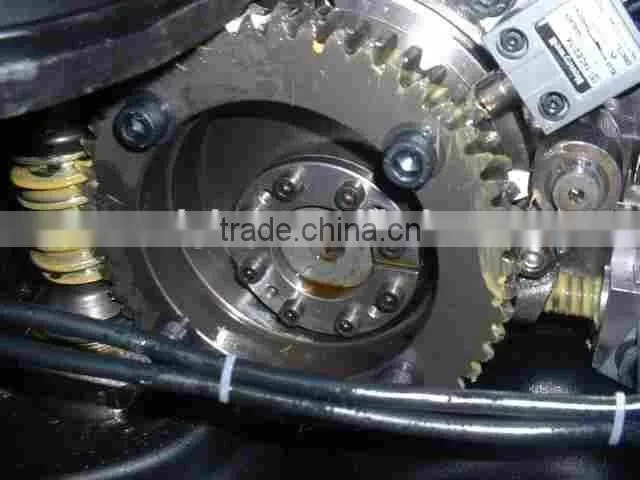

Mechanical power lock tsubaki hydraulic locking device
power locks/ keyless locking device/ Adjustable Locking Device introduction
International standard clamp power locks, keyless locking device, Adjustable Locking Device, Safe Locking Device, Precesion High Power Transmission Power Lock, Keyless shaft Locking Device, joint shaft axle wheel, auto universal joint, cross joint.
1. Steel 42CrMo4 / 4140; C45E / 1045
2. Polished or Zinc plating
3. Our products are interchangeable to the products of Ringfeder, Tollok, Chiaravalli, Sati, Challenge, Bonfix, Compomac, V-Blok, Ringblok, Kana, KTR,MAV, Fenner(Fenlock) etc. and our products now are main export to European countries.
4. And we can also produce as per your special request
Our power lock provide a wide range of keyless shaft/hub fixing assemblies offering simple installation, increased shaft strength and high torque transmission capacity.
Our locking devices is Alternative to the following products:
GB |
Z1, Z2, Z3, Z3 LONGER,Z4, Z5, Z6, Z7B, Z8, Z11, Z12A, Z13, Z14, Z19A, Z19B |
RINGFEDER |
RFN4071,RFN7012, RFN7013, RFN7110,RFN8006 |
TSUBAKI |
AS, TF, EL, SL, AD |
CHIARAVALLI |
RCK11, RCK13,RCK15, RCK16, RCK19,RCK40, RCK45, RCK50, RCK55, RCK70, RCK71, RCK80, RCK95 |
TOLLOK |
TLK110, TLK130, TLK131, TLK132, TLK133, TLK134, TLK200, TLK300, TLK400, TLK603 |
RINGSPANN |
RLK130, RLK132, RLK133, RLK200 |
BIKON |
1003, 1006,1012, 4000, 5000, 7000A, 7000B,8000 |
BONFIX |
CCE1000, CCE2000, CCE3000, CCE4000, CCE4100, CCE4500, CCE4600, CCE4900, CCE8000, CCE9500 |
SATI |
KLGG, KLCC, KLNN, KLDA, KLAA, KLDB, KLAB, KLPP, KLBB, KLHH, KLEE, KLFF, KLMM |
COMPOMAC |
A,B,C,D, ES/DS, EP, SD, F |
VBLOK |
VK400, VK800B, VK700, VK160, VK700.1, VK130, VK112 |
RINGBLOK |
1060, 1100, 1120, 1710, 1720,1800 |
KANA |
200, 201,300 |
KTR |
KTR100, KTR150, KTR200, KTR201, KTR203, KTR206, KTR225, KTR250, KTR400, KTR603 |
Our power lock features is as follow:
1,Wide range of standard designs, solutions for all applications
2,Eliminates the cost and complexity of keyways. Also allow the use of smaller shafts, as keyway does not weaken the shaft
3,Extensive bore range from 20mm up to 900mm
4,Allows for axial and angular adjustment of mounted components
5,Excels at transmission high torques
6,Good resistance to alternating torques
7,Simple installation and disassembly
8,Eliminates fretting corrosion
9,Easy selection based on torque and shaft diameter
10,Includes shrink disks
11,Super high quality with competitive price.

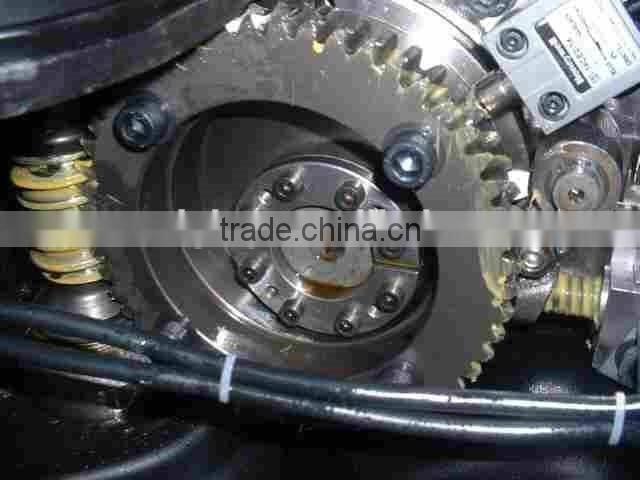

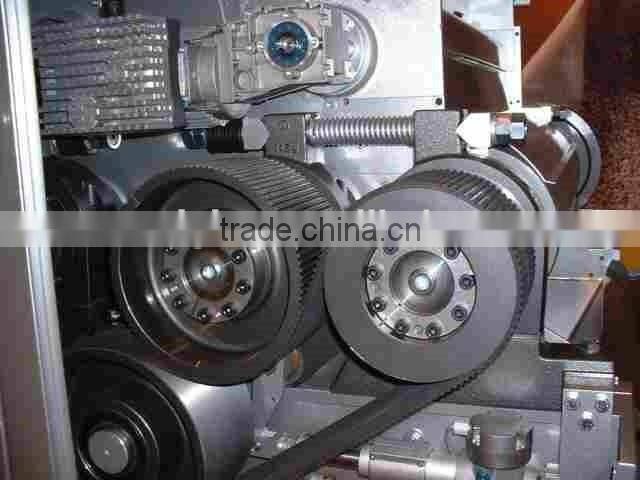

Use: application
Mainly used in the mining,metallurgical,cement,chemicals,construction,buiding materials,
Electric power,telecommunictions,textiles,and transportation departments.
Such as:
1.Conveyor:Belt conveyor,AFC conveyor,chain conveyor,screw conveyor.
2.Pum:Water pump,oil pump,slush pump,etc.
3.Fan:Draft fan,fanner,boil fan,etc.
4.Excavtor:Bucket excavator,bucket wheel excavators,bucket wheel stacker reclaimer.
5.Crane:Tower crane,gantry crane,bridge crane.
6.Others:Various elevators,coal plough,ball mill,crusher,recreation machine.
7.Blender equipment,centrifuger,washer,leather-making machine,machine for recreation
park mixer wire drawing machine.Extruder,dregs crusher of boiler.
8.Plastic feeder,rubber smelling machine,etc.
UP to now, 90% of our products have been exported to Europe& America attributed to our stable high quality and constant good service.
Our Main Advantages:
1. Strong technical support;
2. ISO 9001:2008 qualified & strictly QC controlled with stable quality;
3. Abundant experience in foreign trade;
4. Reasonable price based on large scale production.
