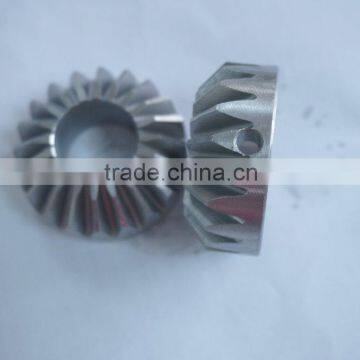

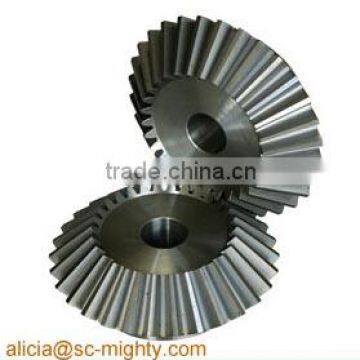

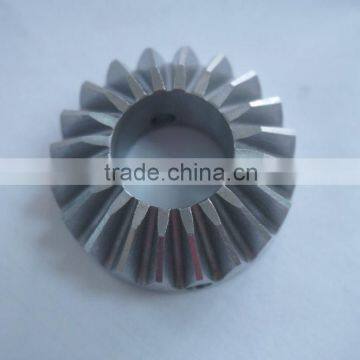

0.5mod Bevel Gear 90 Degree Angle
- shanghai/ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Model Number | M0.3-M8 | |
| Brand Name | MIGHTY | Material | Steel |
Product Description

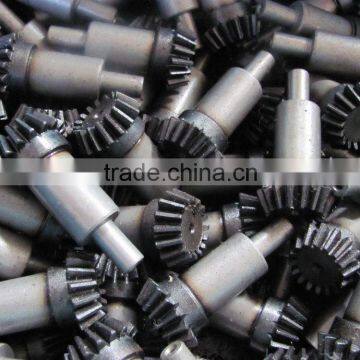

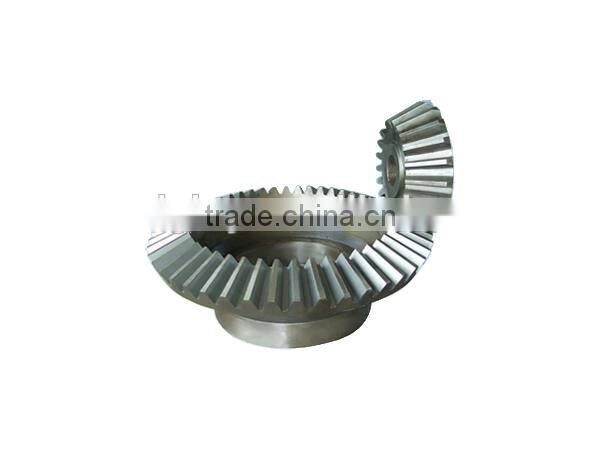

0.5mod bevel gear 90 degree angle

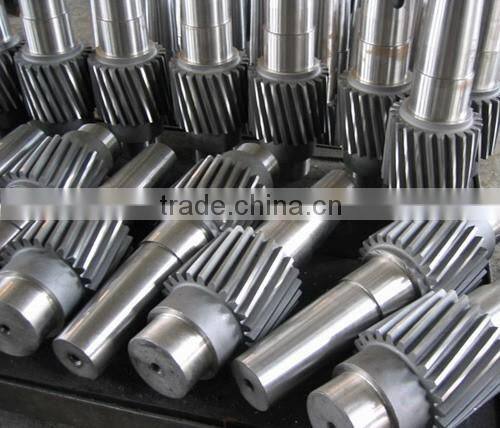

Helical gear shaft

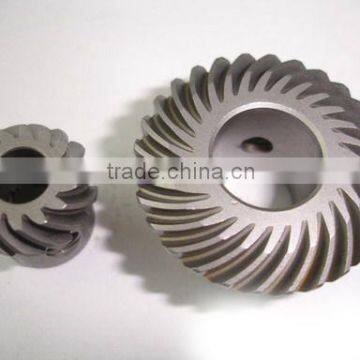

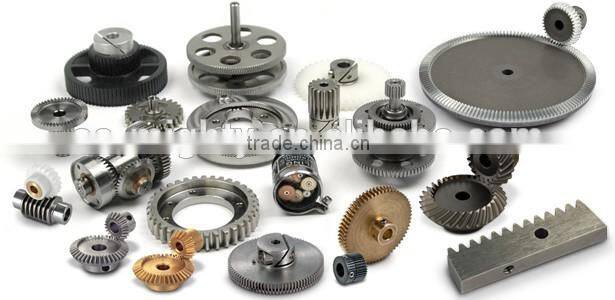

Other types of gears : warms gears, bevel gears, spirial gears, internal gears.
gear with keyway, with holes, with hubs.
Gears specification:
1) Material: stainless steel304;C45,40CrMo,42CrMo,20CrMoTi, etc steel bar, steel sheet, casting.
For big module and big OD,usually casting.
2) gear module:0.3M-30M.
3) Gear processing precision: Grade 5,6,7,8,9.
4) OD:≤2.5m
5) customers' drawing and samples are welcome.
6) Tooth flank carburization and nitrification, with rigidity of HRC58-62.
7) Quality inspection: all items ate inspected and tested through the whole production line.
8) Surface treatment such as zinc plating, black oxide... etc.
Gears classification:
1) According to shape: spur gear, bevel gear, Non-circular gear, gear rack and worm gear.
2) According to tooth: spur gear, helical gear, Herringbone gear, Curve gear.
3) According to tooth surface position: Internal gear and External gear.
The strength of casting is lower than forging and usually used in large gears.
Mechanical character of gray cast iron is lower. So always used in low load power transmission.

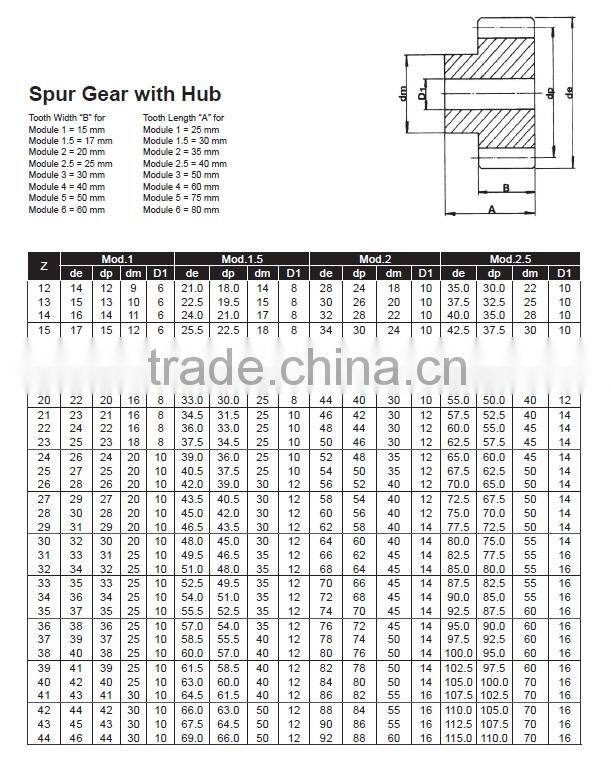

Spur gear parameter:
Sample Applications
- chemical industries
- steel plant
- machine tools
- cement plant
- textile processing
- material handling system
- sugar mills
- cooling towers
MAIN PRODUCTS:
V-pulleys,Taper bushes,Bearings,Timing pulley,Gear and Racks,couplings,Sprockets,Customized parts and etc.
We join fairs at least 3 times every year in differnent countries.
Welcome to meet us in these fairs, or visit our office and factory~
if you have any question, pls feel free to contact me:
Contact Us
- Sichuan Mighty Machinery Co., Ltd.
- Contact nameTrecy Hu Chat Now
- Phone86-028-86751889
- AddressNo.2,Tongfu Alley, Xiyulong St.,Chengdu 610015, P.R.China., Chengdu, Sichuan
