US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
IC-F6061T
Model Number:
IC-F6061T
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name IC-F6061T
Model Number IC-F6061T
Type Handheld
Dimensions 114*52*29.5MM
Frequency Range 136-174MHz 400-470MHz
Storage Channel 128
Talk Range 5-8km

UV-6R,POFUNG UV-6R Dual Band 136-174/400-520MHZ HAM RADIO ,UV-6R





UV-6R,POFUNG UV-6R Dual Band 136-174/400-520MHZ HAM RADIO ,UV-6RUV-6R,POFUNG UV-6R Dual Band 136-174/400-520MHZ HAM RADIO ,UV-6RUV-6R,POFUNG UV-6R Dual Band 136-174/400-520MHZ HAM RADIO ,UV-6R



 Description




POUV6R-UU

Features:

  • Frequency Range: 136-174 / 400-520MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 5 /1Watts
  • 128 Channels 50 CTCSS and 104 DCS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • Hight /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET


Specifications

General

Frequency Range

65-108MHz (FM Receive only)

136-174 MHz and 400-520MHz (TX/RX)

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain Dual-Band Antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

Dimension(W x H x D)

100 x 52 x 32 mm

Weight

500g (including battery, antenna)

Transmitter

Output power

5W / 1W (Max 5W)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

<5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation

<7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

<10

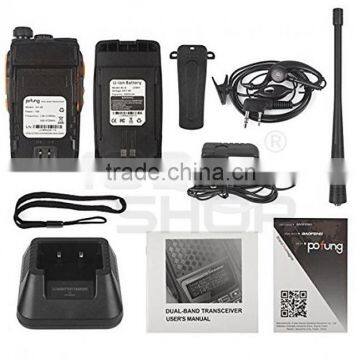

Package Contain
1 x UV-6R (VHF136-174Mhz UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x PTT Earpiece for free
