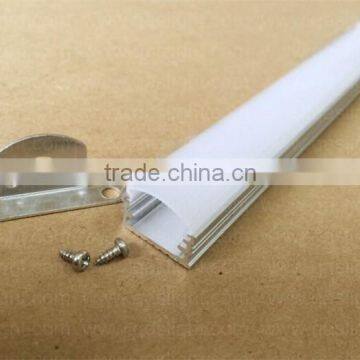

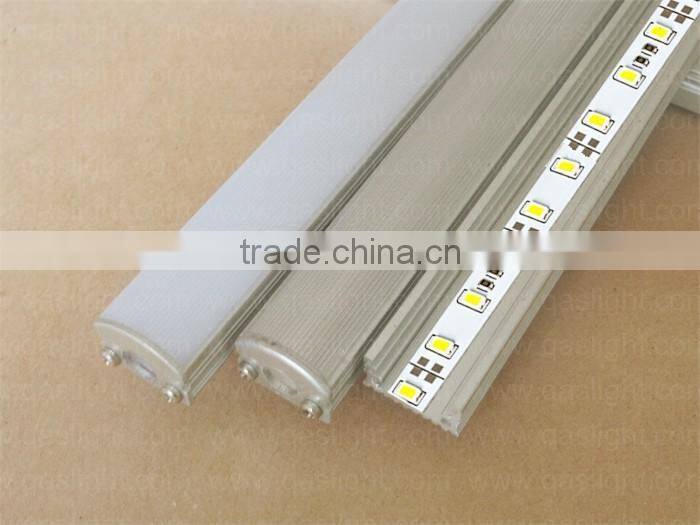

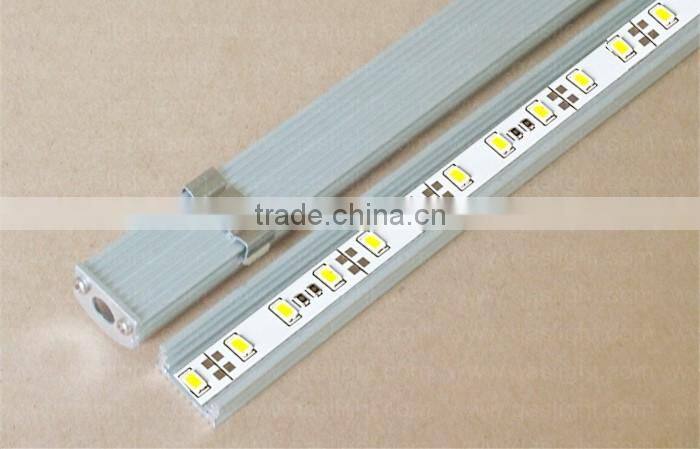

15x20mm LED Strip Aluminum Channel For Ceiling Or Pendent Light
QS-C11
Description
About light housing
| Aluminum Style | Aluminum LED Profile |
| Aluminum Material | 6063 Anodized Aluminum |
| Cover Style | Opal Matte /Semi-Clear |
| Cover Material | PMMA/PC |
| Length | 1.0m / 2.0m / others |
| Special Length | Available |

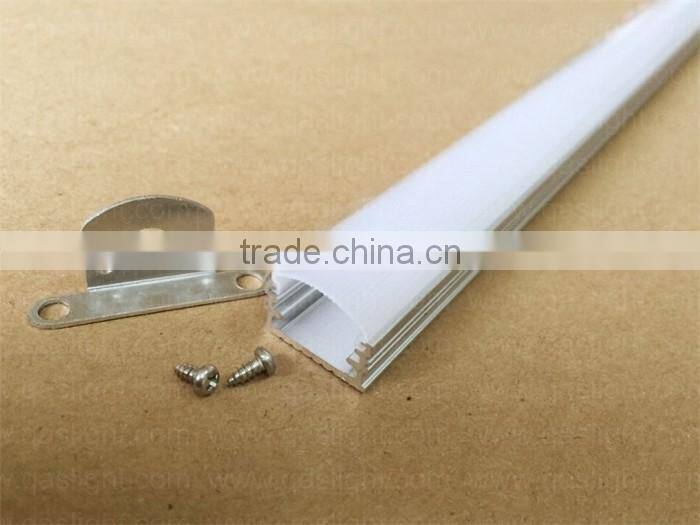

| A set Contents | PMMA cover + clips + end caps |
| Suit Strips | For LED Strips |

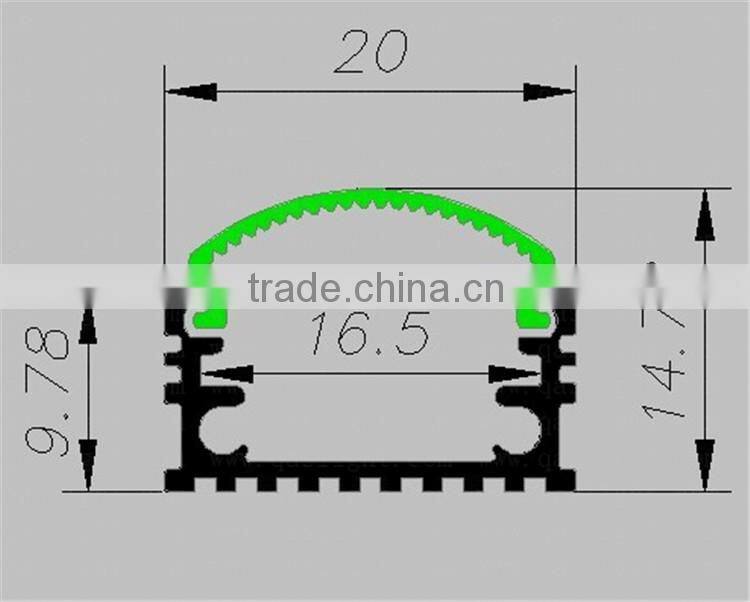

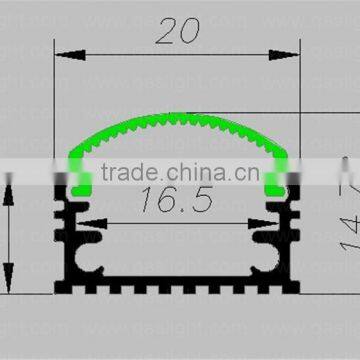

| Inside Width For Strip PCB | 15mm |
About led strip/ Aluminum Substrate
| LED Light Source | Epistar SMD5050 / 5730 |
| Input Voltage(V) | 12v |
| Lamp Power | 16w |
| Lamp Luminous Flux(lm) | 320 |
| CRI (Ra>) | 80 |
| Working Temperature(℃) | -20 - 40 |
| Color | white / RGB 3 in1 / RGBW 4 in 1 |
| Type | led strip / Aluminum Substrate |
View the RGBW show on Youtube: /watch?v=og970J1ggs0

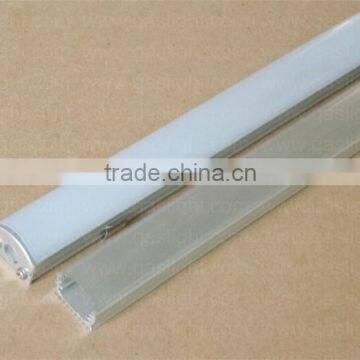

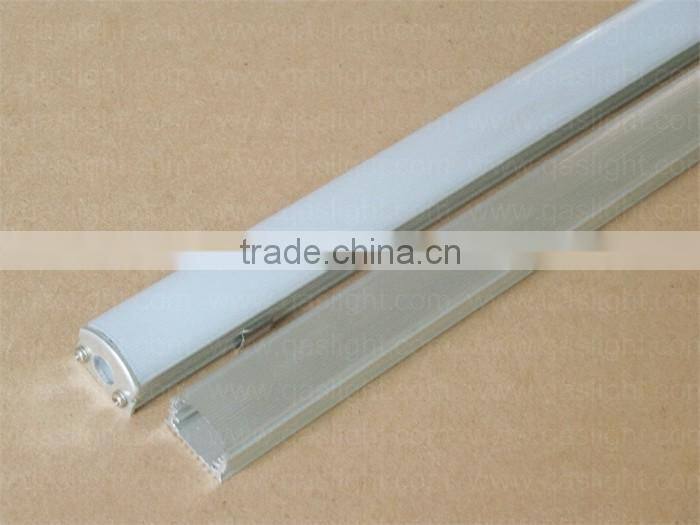

NOTE: Milky cover and Transparent cover are available .

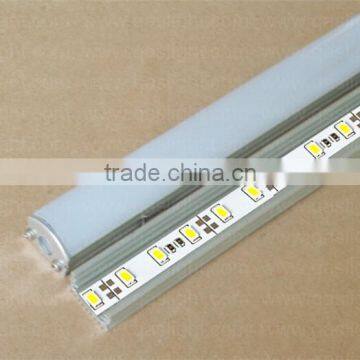

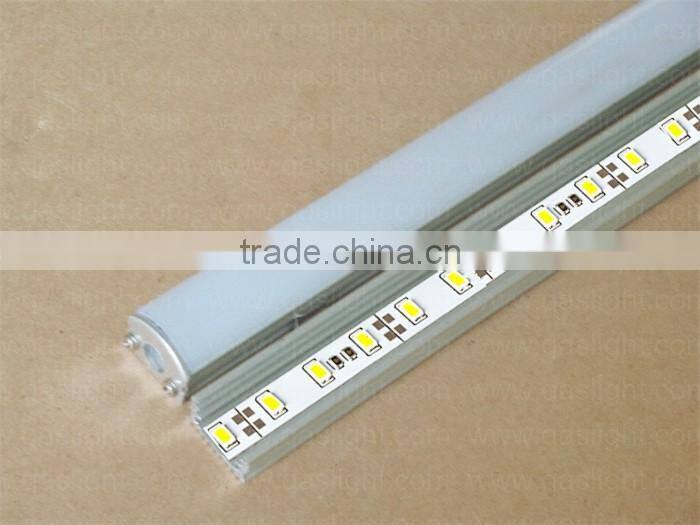

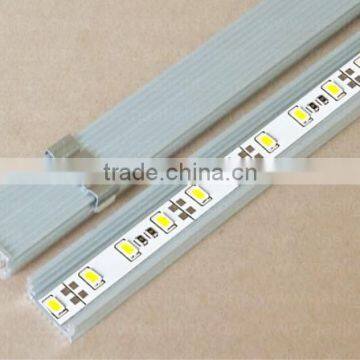

Led strip or Led rigid bar available.
Feature
High quality aluminum profiles for commercial and residential led strip lighting applications.
Suitable for recesses installation in window,counter,display case,in-ceiling or in-wall accent
decor lighting.Made specially to be routed into wood panels,dry-wall,or other substrates.
The opal/translucent cover creates a bright effect ideal for ambient lighting.
Easy assembly,light weight,and environment friendly.
The aluminum extrusion serves as a heat-sink and helps to dissipate the heat from LED light
strips prolonging their life .works with most standard led flex and hard light strips.
Packing
Inside : PP Bag
Outside: Carton Package.
Packing size :103*35*18cm
Delivery Detail: 3 ~ 7 working days after deposit
Installation
