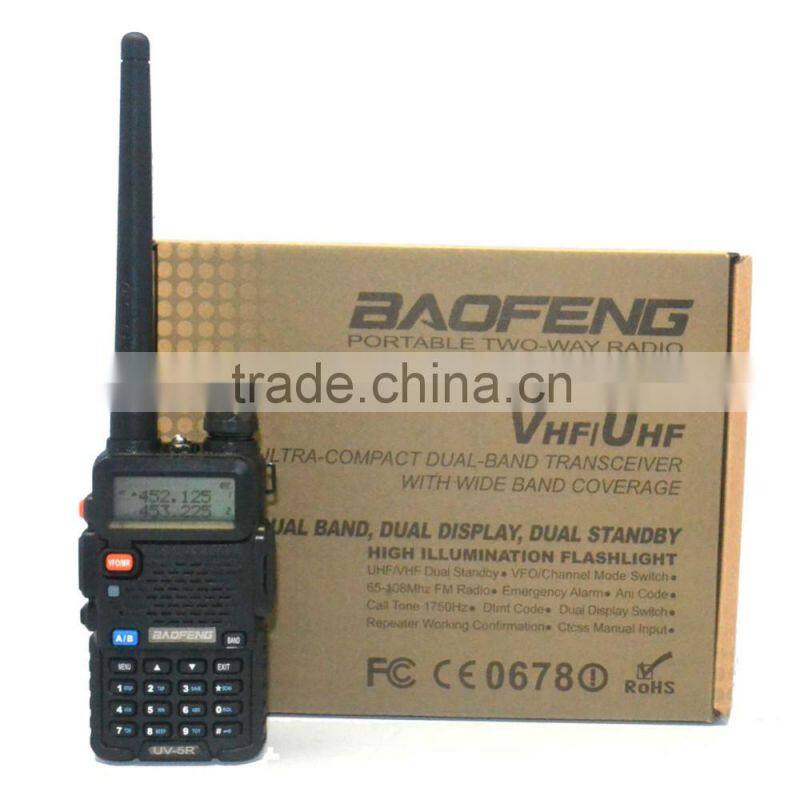

Help CenterBaoFeng UV-5R 136-174/400-520MHz Dual-Band DTMF CTCSS DCS FM Ham 2way Radio
Related Products
-
BaoFeng BF-888S Two-Way Radios FM Transceiver Flashlight Walkie TalkiesUS$ 1 - 10MOQ: 1 Set -
Baofeng UV-5RA Ham Two Way Radio 136-174/400-480 MHz Dual-Band Dmr Ham RadioNegotiableMOQ: 1 Set
-
Two-Way Radio BF-888S BaoFeng UHF Single Band 5W 16CH Walkie TalkieUS$ 1 - 10MOQ: 1 Set
-
NEW BaoFeng BF-888S Two Way Radios FM Transceiver Flashlight Walkie TalkiesUS$ 1 - 10MOQ: 1 Set
-
BAOFENG BF-999S Handheld Walkie Talkie 5W UHF 400-470MHz CTCSS Two Way RadioUS$ 1 - 10MOQ: 1 Set
Quick Details
| Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | BAOFENG |
Model Number: | UV-5R |
| Type: | Handheld |
Dimensions: | 110x58x32 mm |
Frequency Range: | 136-174MHz & 400- 520MHz |
| Storage Channel: | 128 |
Talk Range: | 3-8km |
Name: | walkie talkie |
| Output Power: | 5W/1W |
Color: | Black/ Yellow |
Step Frequency: | 2.5/5/6.25/10/12.5/20/25KHz |
| Operating Voltage: | 7.4 V |
Temperature range: | -10℃~+60℃ |
Feature 1: | 50 CTCSS and 104 DCS Codes |
| Feature 2: | VOX Function |
Certification: | CE passed |
Keywords: | walkie talkie |
Main Features:
1) Output : 5W/1W
2) Frequency Range: 136.00-174.00 MHz & 400.00-520.00MHz
3) Frequency Step Setting
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
25) Dimension: 110x58x32mm
26) Packing Details: 40 Units/CTN, Carton Size: 47.5x42x50 cm
Specifications:
Frequency Range: |
136.00-174.00 MHz |
400.00- 520.00MHz | |
Storage Channel |
128 |
Step Frequency |
2.5/5/6.25/10/12.5/20/25KHz |
Rated voltage |
DC 7.4V |
Frequency Stability |
±2.5ppm |
Work Temperature |
-20 ℃ to +60℃ |
Battery Capacity |
H-1800m Ah (Li-ion Battery) |
Battery Life |
About 12 Hours |
Frequency Combination |
PLL frequency synthesis |
Antenna Impedance |
50 Ω |
Wok Mode |
Same Frequency simplex Operation or Different Frequency simplex Operation |
Dimension |
110x58x32 mm (Excluded Antenna) |
Transmitter
Output Power |
5W/1W |
Modulation Mode(W/N Band) |
FM (F3E) |
Maximum Frequency Deviation (W/N Band) |
≤5 KHz |
Spurious Power |
≤7.5 µW |
Adjacent channel power |
≤-65dB/≤-60dB |
Audio Distortion |
<5 % |
SNR |
≥-45dB/≥-40dB |
CTSCC/DCS Frequency Deviation(W/N Band) |
0.7±0.1KHz (W), 0.4±0.1KHz (N) |
Modulation Sensitivity |
8-12mV |
Transmitting Current |
≤1500mA |
Receiver
Sensitivity |
<0.20 µ V (12dB SINAD) |
Audio Power |
1 W |
Inter modulation Interference Resistance |
≥65dB (W), ≥55dB (N) |
Adjacent channel Sensitivity (W/N Band) |
≥65dB (W), ≥55dB (N) |
Audio Distortion |
5 % |
Receiving Current |
≤ 380m A |

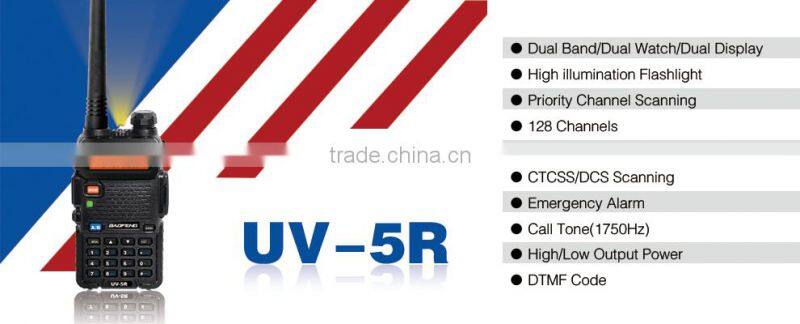

- Frequency Range: 136-174 / 400-519.995 MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 128 Channels 50 CTCSS and 104 DCS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- Hight /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET

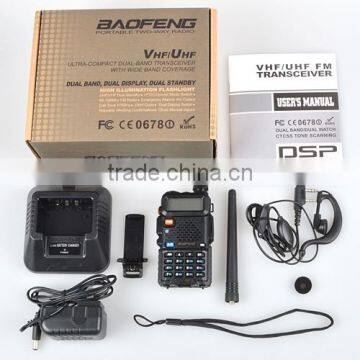

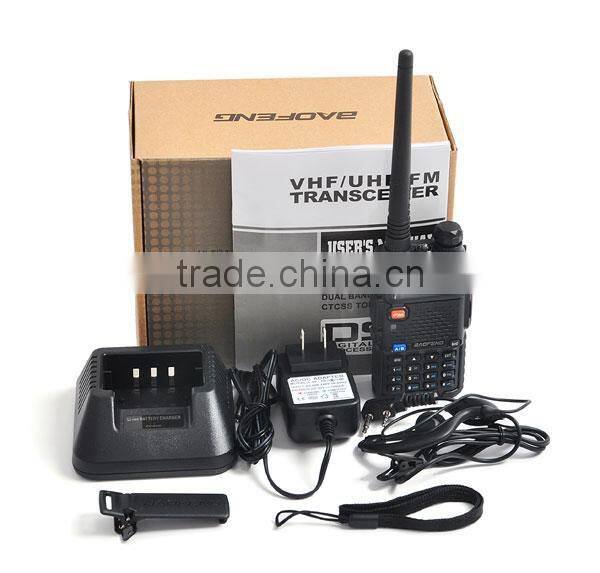

Package:
- · 1 x UV-5R (VHF136-174MHz / UHF 400-519.995MHz)

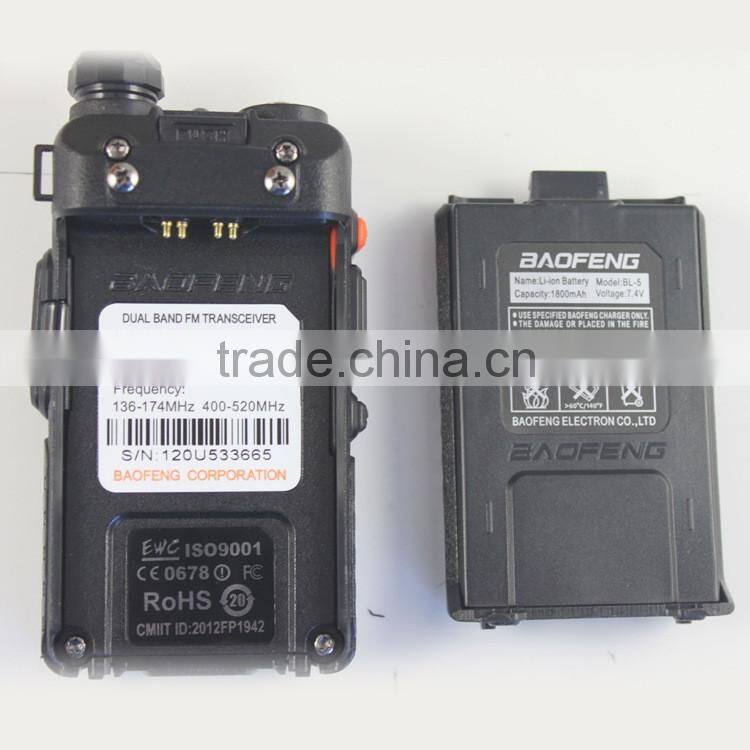

- · 1 x 7.4V 1800mAh Li-ion Battery Pack
- · 1 x Antenna 136-174/400-519.995Mhz

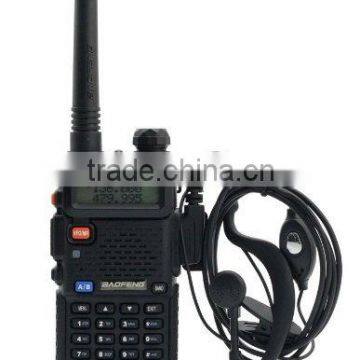

- · 1 x Earphone Mic/Headset
- · 1 x Belt Clip
- · 1 x Hand Strap
- · 1 x ENG Manual
- · 1 x adapter
-
· 1 x Desktop Charger ( 100V ~ 240V )
