Clean-Link Hot Melt Filter Bag and Pocket Filter

Name: Clean-Link Hot Melt Filter Bag and Pocket Filter
Brand: Clean-Link
SKU: 118371803
Availability: InStock

Negotiable MOQ: 1 Roll (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Efficiency:

G3 G4 F5 F6 F7 F8

Construction:

Bag Filter

Guangzhou Clean-Link Filtration Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency G3 G4 F5 F6 F7 F8

Construction Bag Filter

Filtration Grade Medium Filter

Place of Origin Guangdong, China

Brand Name Clean-Link

Certification ISO 9001/SGS

Medium Material Synthetic Fiber

Specifications

1 Low resistance
2.Long service life
3.Large dust holding capacith
4.There are rhombic and small pockets inside

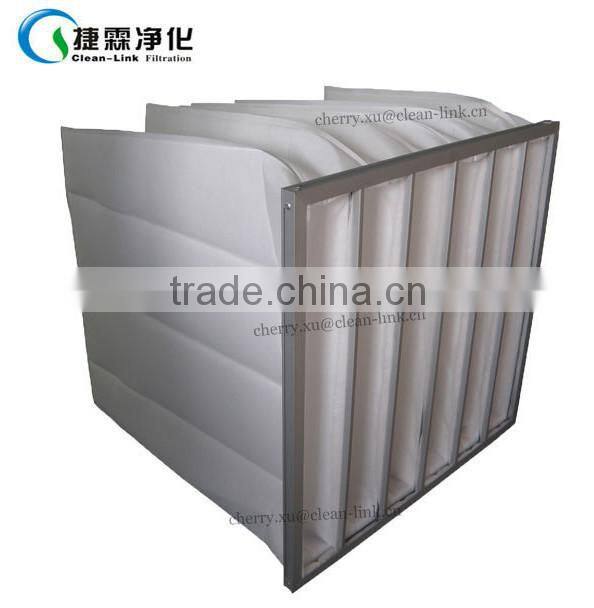

Hot melt pocker filter

Using seamless welding technology, keep structure stability and reduce the risk of leaky make sure the reliabity of use
The media are progressively structured, long service life

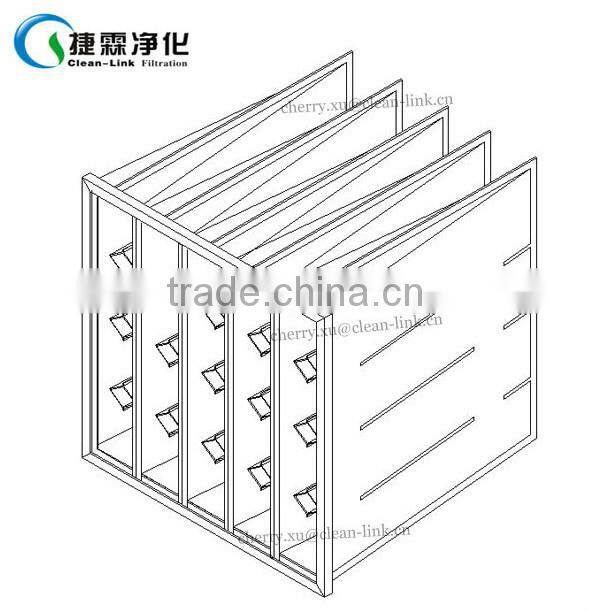

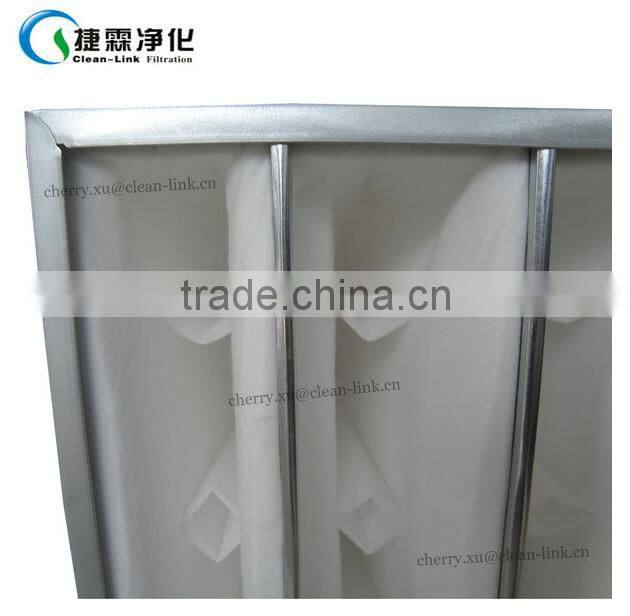

There are rhombic and small pockets inside, which not only distribute and share alike the aire flow, but also maintain the figure of the pockets, reduce power consumption and make full use of the filter media
There is no glass fiber breakage and the risk of falling. the same breeding conditions caused by micro-organisms

Specification:

Filtration class	G3	G4	F5	F6	F7	F8
Sizes	592x592x550x5p/6p 592x592x600x5p/6p 592x592x450x5p
Nominal volume (m3/h)	3400	3600	3800	3800	3800	4000
Initial pressure drop at nominal(pa)	30	40	50	60	80	120
Recommended final pressure drop(Pa)	200	200	250	400	400	400
Average arrestance ashrae dust(%)	85	90	96	98	>98	>98
Initial efficiency(%)	_	_	50	60	85	93
Dust holding capacity ASHRAE dust(g)	900	1850	1200	1400	650	500
Moisture resistance Rel.humidity	100	100	100	100	100	100
Thermal stability temporary peaks(oC)	80	80	80	80	80	80
