Help CenterH13 Deep Pleated HEPA Filters for Air-condition Filtration System
Related Products
-
HVAC System Mini-pleat Hepa Air FilterNegotiableMOQ: 1 Piece -
High Efficiency Mini-pleat Glass Fiber HEPA Filter With Galvanized Steel FrameNegotiableMOQ: 1 Piece
-
Pleat HEPA Air Filter for LaboratoryNegotiableMOQ: 1 Piece
-
Clean-Link H13 Deep Pleat HEPA Filter for PharmaceuticalsNegotiableMOQ: 1 Piece
-
Heat-resistance Compressed Air Filter Hepa With Stainless Frame Hepa Filter Air(manufacture)NegotiableMOQ: 1 Piece
Specifications

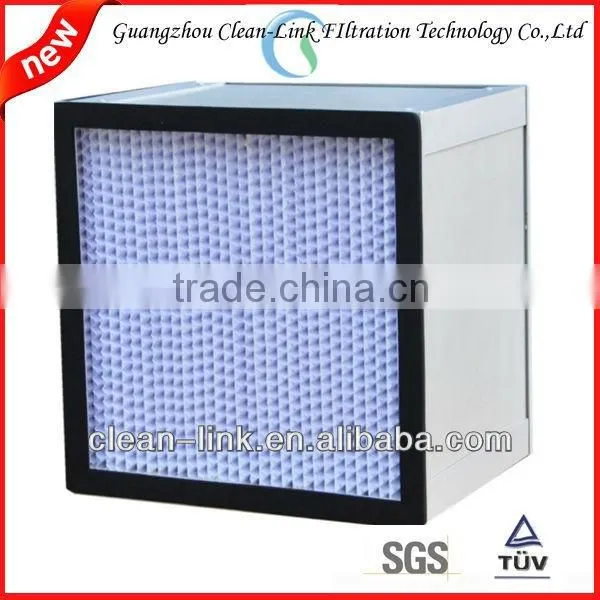

H13 HEPA Filter
applied to the terminal filtration for the air-condition system
Temp.resistance up 80 degrees
Speciality:
1.Application: ≥0.5μm (especially used in hospital, electronic Industry, food, precision instrument, electron semiconductors )
2.Frame metial: waveness aluminium foil pleat or the paper pleat
3.The thickness of the aluminum foil:0.03mm
4.The hight of the waveness:4mm
5. The filtration material: high density paper which is made from super fine fibreglass.
6. Temp.resistance :up to 80 degrees celsius
7.Small resistance high efficiency
8.Long service life
9.Each filter has laser test
10.Pleat the filtration paper (made from the fireglass) in order to enlarge the filtration area as large as possoble and to slowdown the filtration speed.
Using:
Applied to the terminal filtration fo the air-conditon filtraton system
Used in hospital ,electronic industry, food , precision instrument, electron semiconductors
Specification:
|
type |
Outside size W*H*D(mm) |
Rated air flow |
Initial resistance |
Filtration efficiency |
CHS |
320×320×220 |
500 |
≤220Pa |
≥99.99 (Sodium flame) |
484×484×150 |
700 |
|||
600×600×150 |
800 |
|||
484×484×220 |
1000 |
|||
610×610×150 | ||||
820×600×150 |
1200 |
|||
630×630×220 |
1500 |
|||
915×610×150 | ||||
820×600×200 | ||||
968×484×220 |
2000 |
|||
1220×610×150 | ||||
1260×630×220 |
3000 |
Remarks: The size can made based on customerre.
Why us
1We have specialized in the export of air filters for over 6years.
3 We have our own factory and brand.
4We provide OEM and ODM service ,sample production and service according to your demand
5 The dimension can be customized.
6 The delivery date will be within 2 weeks
7 The products have passed ISO90012008 and SGS certification.
8With independent R&D and design capablities.
9Well equipped with complete faciliies and skilled empolyees.
We are professional manufacturer of air filter in china.Our products are pre-filters, ceiling filters, floor filters (paint stop filter mats, fiber glass filters), pocket filters, panel filters, HEPA filter, HVAC filter
If any products interest you,please kindly email us.we will send you more information.
