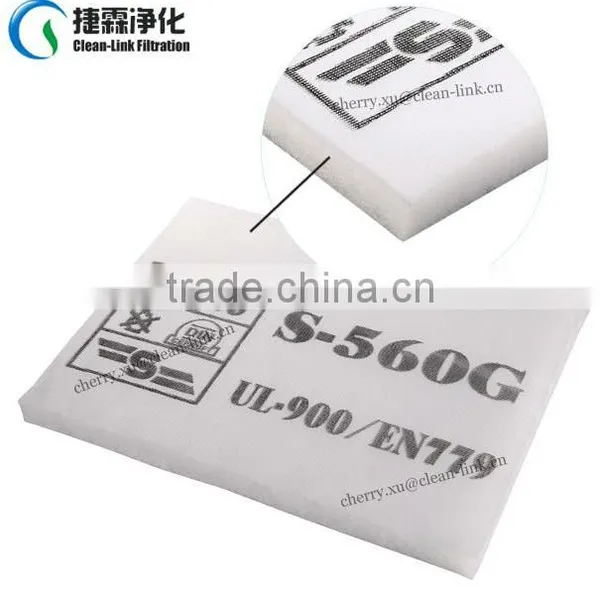

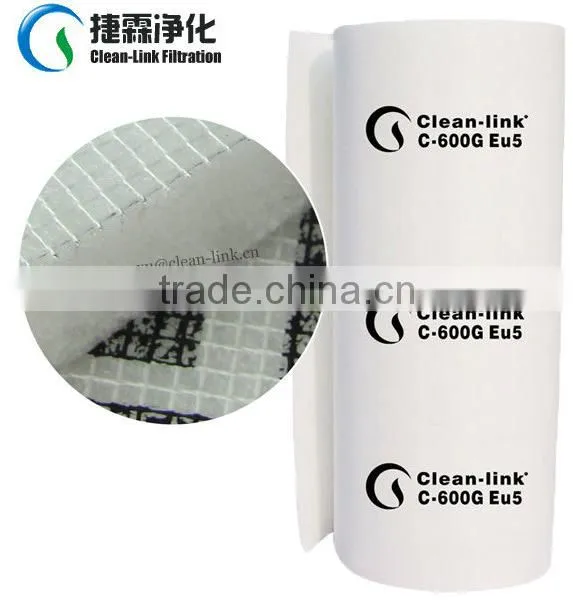

hot sale 600G solid glue Ceiling filter used for Paint Spray booth/car painting room filter/synthetic Air filter med

Specifications

1.High filtering efficiency
2.Large dust holding capacity;
3.Even more;
4.Working life;
5.Saves the systems operation cost;

Specifications

1.It is made from the anti-break organic synthesis fiber in high-powered high melt way;

2.The wind surface of the mesh is specially compact, this structure make the filtering material keep the:



-High filtering-efficiency

-Large dust holding capacity;

-Working life;

-Saves the systems operation cost;



3.It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry  procession



Using

1.Applied to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.



2.Applied to automotive factory, the automobile repair shop, the motorcycle factory, the bicycle factory, the operating system of the household appliances painting.





Spray booth ceiling filters data sheet:

Type	C-600G	C-560G	C-350G	AF-600G	FS-600G	CL-600G	S-600G
Material	Polyester
Initial resistance	30 Pa	35 Pa	30 Pa	45 Pa	35 Pa	30 Pa	30Pa
Final resistance	450 Pa	430 Pa	400 Pa	430 Pa	450 Pa	400 Pa	450Pa
Dust holding at tested final	650 g/m²	580 g/m²	380 g/m²	430 g/m²	620 g/m²	600 g/m²	600g/m²
Filtration class	F5
Resistance humidity	100%
Temp.resistance	120°C	120°C	110°C	120°C
Temp. short peaks	140°C	140°C	120°C	140°C
Thickness	22mm
Roll Sizes	1.6*21 2.0*21 1.0*21
