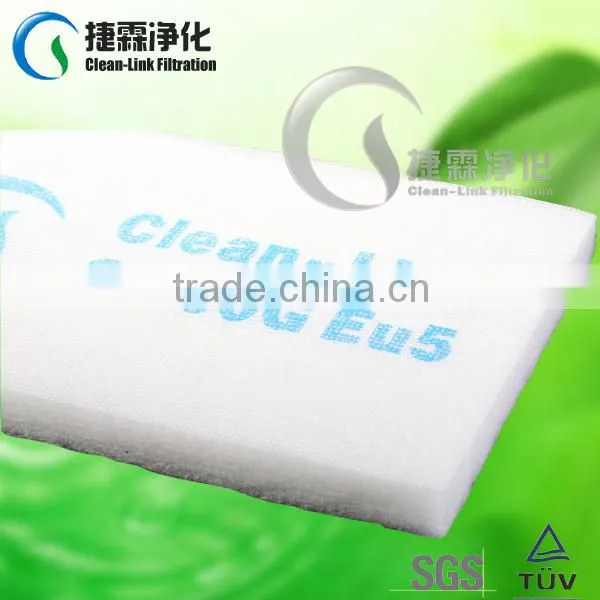

Painting Spray Booth Synthetic Fiber C-600G Roof Pre Filter

Painting Spray Booth Synthetic Fiber C-600G Roof Pre Filter photo-1
US$ 1 - 5 MOQ: 10 Rolls
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
F5
Construction:
Other, Progressive in Structure
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Efficiency F5
Construction Other, Progressive in Structure
Filtration Grade Other, Pre Filter, Medium Filter
Medium Material Synthetic Fiber
Place of Origin Guangdong, China
Brand Name Clean-Link
Model Number C-600G
Dimension(L*W*H) 1.6*21m, 2.0*21m,1.0*21m
Weight 600g/square meter
Certification ISO90012008 and SGS certification

Specifications

aint Booth Celling Filter
gradual structure
compact wind surface,extend working life
cutting service

Speciality:

1.applied to the air filtration for the painting factory,the spray workshop, stoving varnish room and so on.(especially be used for the automotive factory, the automobile repair shop, the motorcycle factory, the bicycle factory, the operating system of the household applianes painting.

2.made from anti-break organic synthesis fiber in high-powered high melt way

3.Gadual structure,the fibre density increases gradually toward pure air which made the efficiency much higher.

4.prevent the dust in the different densitylevel according to the size of the dust

5.The wind surface of the mash is specially compact,this structure make the filtering matirial keep the high filtering efficiency and large dust holding capacity

6.the types of the material:entire coherency,the surface viscosity,dry processin

7.DIN53438-F1,UL900-class2



SPECIFICATION:







type C-600G C-560G C-350G AF-600G FS-600G S-600G
avg.arrestance 99% 98% 96% 98% 98% 97%
initial resistance 30pa 35pa 30pa 45pa 35pa 35pa
final resistance 450pa 430pa 400pa 430pa 450pa 450pa
dust holding at tested final(g/m2) 650 580 380 430 620 680
thickness(mm) 22 22 18 22 22 22







REMARK:



based on customer's requirements,the whole roll and all the size are supplied .It can be made into the plank filter mesh.



Using



1.Applied to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.





 2.Applied to automotive factory, the auomobile repair shop, the motorcycle fctory, the bicycle factory, the operating system of the household appliances painting.

Why us







1We have specialized in the export of air filters for over 6years.



2 We have our own factory and brand.



3We  provide OEM and ODM service ,sample production and service according to your demand



4The dimension can be customized.



5The delivery date will be within 2 weeks



6 The products have passed ISO90012008 and SGS certification.



7With independent R&D and design capablities.



8Well equipped with complete faciliies and skilled empolyees.

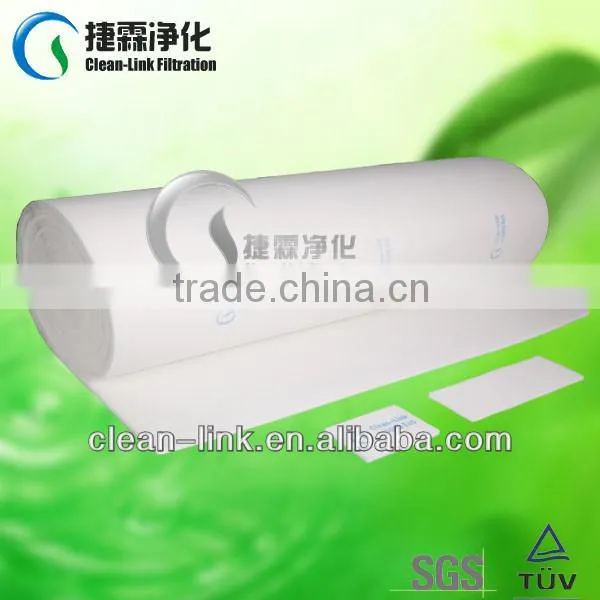

painting spray booth synthetic fiber C-600G roof Pre filter

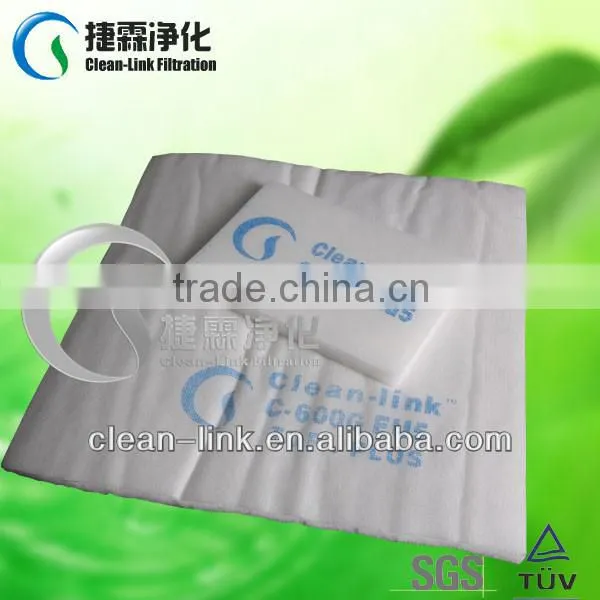

painting spray booth synthetic fiber C-600G roof Pre filter
