Specifications
1.Trailer body material :galvanized plate then powder coated2.Easy open with 45 secondes
3.Off -road with dual shorck
Dimension:
1.Trailers size: 3900*1920*1700mm(L*W*H)
2.Trailer box size:2400*1920*1080mm(L*W*H)
3.Inner size of solar panel steel bracket: 1370*2230m(not including solar panel)
4.Net weight of trailers: 960Kg
5.Draw bar material: Q345
Features:
1.4wd 360 degree off road coupling, with hand brake, in accord with Australia standard.
2.Jockey wheel:Inflatable and Solid jockey wheel
3.Stone guard & spare wheel carrier on tailgate
4.Large tool box on driver’s side
5.Wiring harness under trailer concealed in steel conduit
6.Jerry can Holder for 9 Kg Jerrycans
7.Kitchen Assembly –Demountable with stove slide
8.Leaf spring suspension (Independent suspension is available)
9.10” electric brakes with mechanical over ride back up
10.Galvanized sheet, then fully powder coated finish
11.Powder coated finish to camper metalwork
12.Boat rack side cast for 60Kg boat prewired for solar option
13.Boat motor mount for 30Kg motor located on front tailgate
14.Twin fridge frame inside front tailgate
15.Dedicated position for generator
16.LED tail lights, turn indicators and number plate lights
17.Rims 16” 6-stud pattern *3
18.Storage cubes in kitchen with water hand pump hose
19.Pre-stressed, reinforced drawbar
20.Trailers can be built as per customer/s special requirements

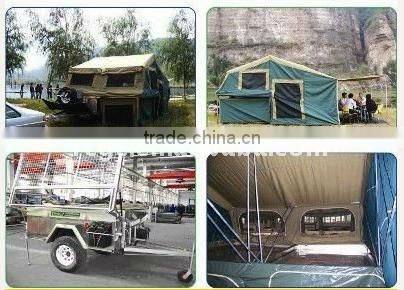

Tent spec:
14OZ Rip-stop,rain-stop canvas tents available for choice
Size:25 square meters
Rated for 6-8 persons
Clear PVC overlays for tropical windows *2
Queen size high density foam mattresses *2
2* Ladders to bed area
Marine carpet to floor of tent area-floor protection
Full length tropical windows*3
Mesh Floor protector under tent and floor to annex
Midgy proof fly mesh used on all windows and gazebo
Shade awning off main bed windows *2
Poles, ropes and pegs for annex and awnings
Hammer/Peg puller
Optional:
Gas burners with AGA, Jerry can, Solar panel
Material | ||||||
| 1.1 GRADE | ||||||
| DuraGal angles,channels and flats are manufactured by a cold forming process which ensures that it complies with the requirements shown below | ||||||
| section | Actual thickness t mm | Grade | Minimum Yield Stress Mpa | Minimum Tensile Strength MPa |
|
|
| Flats | t≤6.0 t>6.0 | C400LO C350LO | 400 350 | 450 400 | 20 20 | |
| Angles and Channels | t≤6.0 t>6.0 | C400LO C400LO | 450 400 | 500 450 | 16 16 | |
| DuraGal profiles comply with the requirements of steel type 7B in Talbe 10.4.1 of AS4100. | ||||||
| LO indicates that DuraGal profiles have Charpy V-notch impact properties as specified in TS100[11]. Table 10.4.1 of AS4100 Steel Structures permits impact tested LO grades to have the following minimum servicetemperature: | ||||||
| Actual thickness mm | Lowest one day mean ambient Temperature ºC | |||||
| t≤5 | -30 | |||||
| 5<t≤10 | -20 | |||||
| 1.2 SURFACE FINISH | ||||||
| A minimum of 100g/m² coating of zinc is applied by in-line galvanising to a mechanically(shot blasted)and chemically cleaned bright metal(AS 1627.4 Class 3.0) surface. A clear polymer barrier coating protects the protects the galvanising prior to fabricartion. | ||||||
| 1.3 SIZE RANGE | ||||||
| Equal Angles | Unequal Angles | Channels | Flats | |||
| 30x30 to 150x150 | 75x50 | 75x40 to 300x90 | 50to300 | |||
Craft : blanking,stamping, grilding,welding,assembling,painting, baking etc.
Blanking workshop
surface finishing--- painting finish or baking finish
Fiberglass workshop
Assembly shop
Delivery
Our certification:
Our products & factory:
