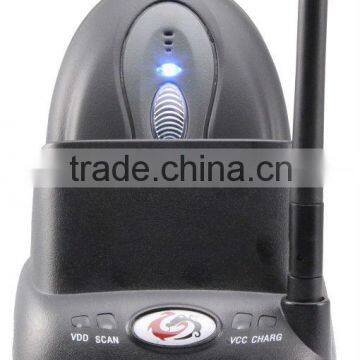

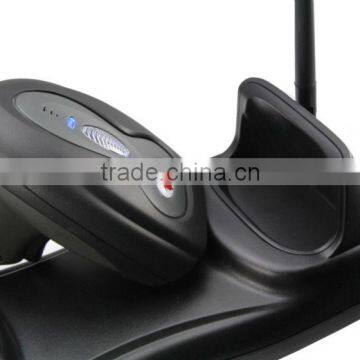

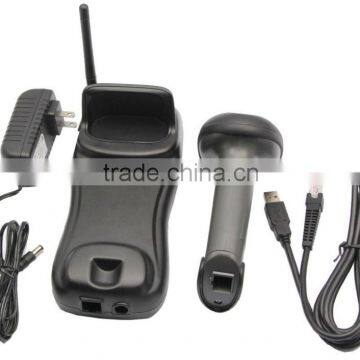

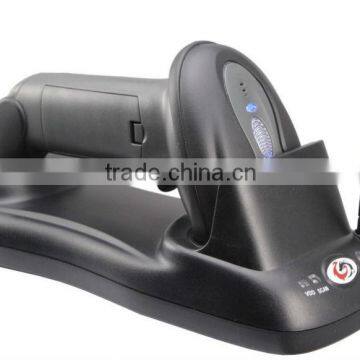

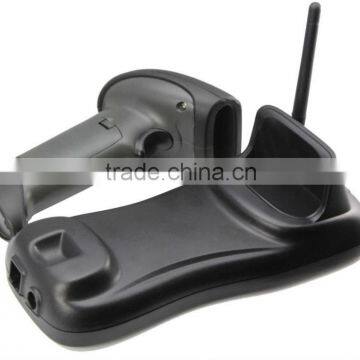

Wireless Laser Barcode Scanner XL9309

Name: Wireless Laser Barcode Scanner XL9309
Brand: SUNLUX
SKU: 118362875
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Type:

Barcode Scanner

Scan Element Type:

Other

SUNLUX IOT Technology (Guangdong) Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Barcode Scanner

Scan Element Type Other

Colour Depth 32 Bit

Interface Type USB

Scan Speed 100times/second

Brand Name SUNLUX

Model Number XL9309

Place of Origin Guangdong, China

Specifications

Wireless Laser Barcode Reader XL9309
communication distance is up to 300m on open places,
the CPU is 32Bit
Compatibility w

Wireless Laser Barcode Reader Feature:

Exterior Antenna, reliable communication and extended operating range.

1 base frame can support 99 scanners

The communication distance on open places is up to 300m.

Extremely comfortable operation.

Full independent intellectual property rights (which have been award with numerous national patents)

The service life of the button is up to 50,000,000 times.

Compatibility with RS232, PS2 keyboards as well as USB interface.

Performance Parameter:

Function	Parameter
WorkingFrequencyRange	433MHzISM frequency range
Communication Distance	Up to 300m at open places.
Light Source Type	650nm graphic laser diode
Use Mode	Hand-held or bracket-held installation
Bit error rate	1/5 million
Safety Performance	Meet the Grade II National Criteria for Laser Safety
Barcode Type	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,Chinese postcode etc.
Supported Interface	RS 232, PS2 keyboards, USBetc.
Scanning Mode	Manual, automatic
Transmission Rate	RS232 Baudrate: 2400-38400
Resolution (pcs0.9)	0.10mm(4mil)
Depth of Field	10-800mm (pos0.9)
Reading Speed	100 times/second
Reading angleof elevation	60°
Reading angle of dip	45°
Operating temperature	-20 -45
Storage temperature	-20 -45
Operating humidity	5%-85%
Storage humidity	5%-85%
Power supply	5V
Working current	57mA
Static current	36mA
Fall test	100times/1.5m
Light intensity	Daylight 6000lux max
Electromagnetic interference	Complying with en50081, par1 criteria
