Home > Products > PCB Terminal Blocks > New spring UTL product MU1.5H7.62-M1 Pitch 7.62 PCB Mount Terminal Block
New spring UTL product MU1.5H7.62-M1 Pitch 7.62 PCB Mount Terminal Block
- 1000000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | UTL | Model Number: | MU1.5H7.62-M1 |
Type: | Other, PCB |
Product Description
Utility Electrical Co., Ltd.

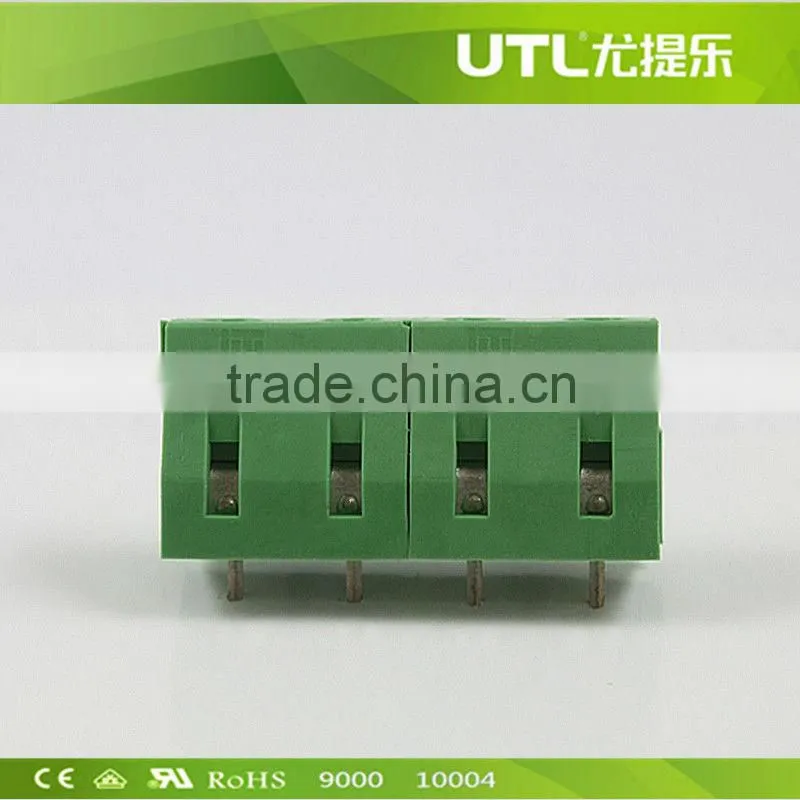

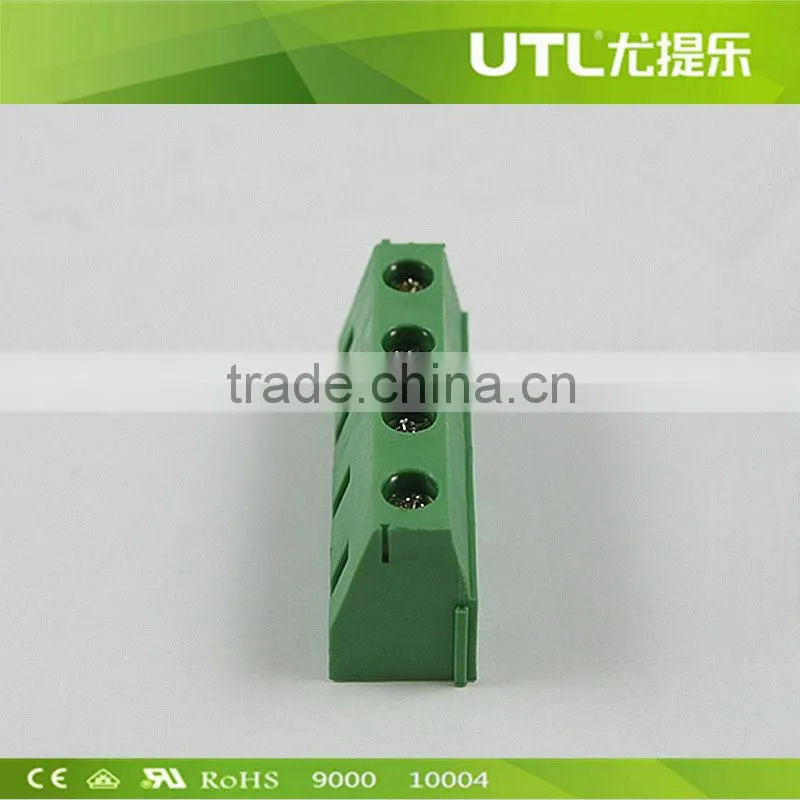

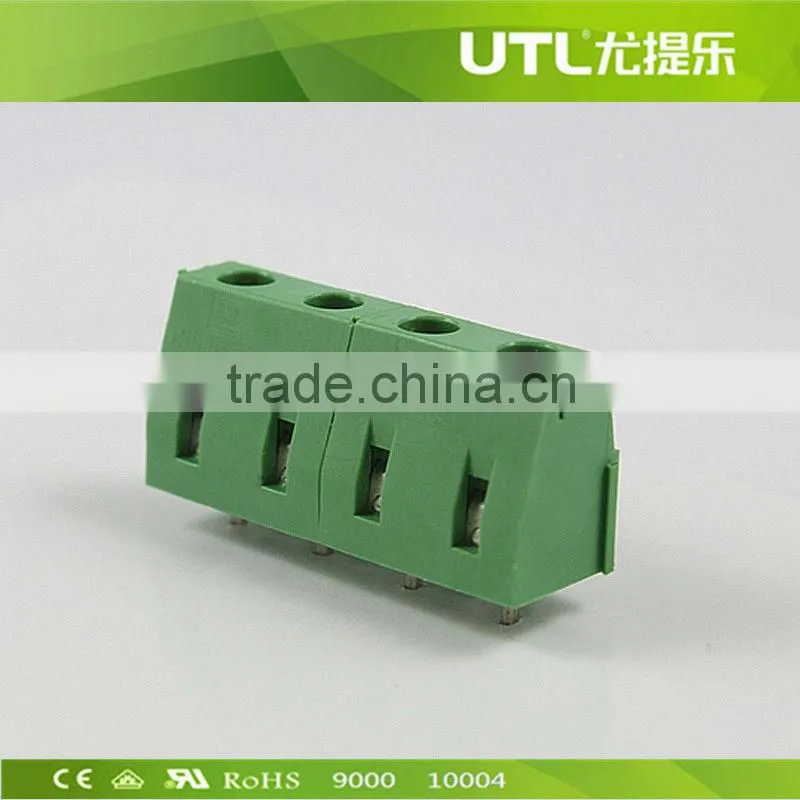

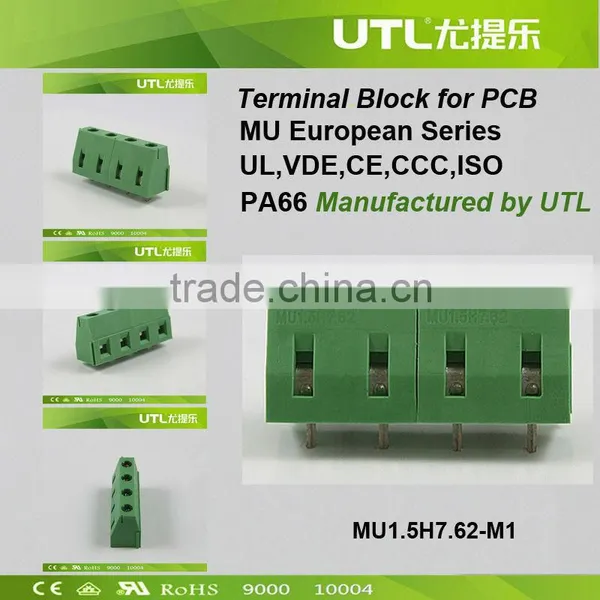

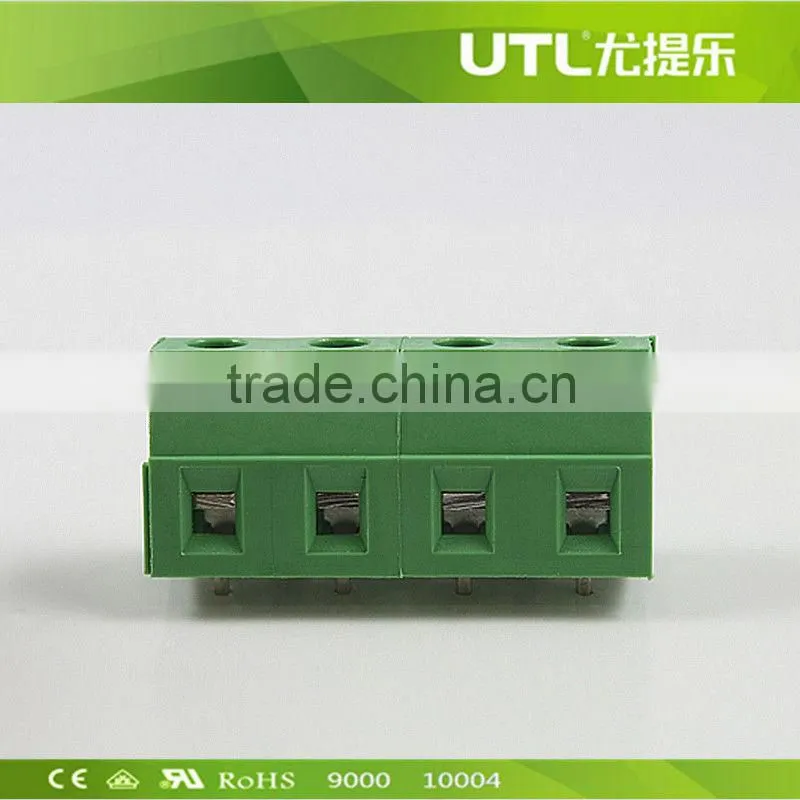

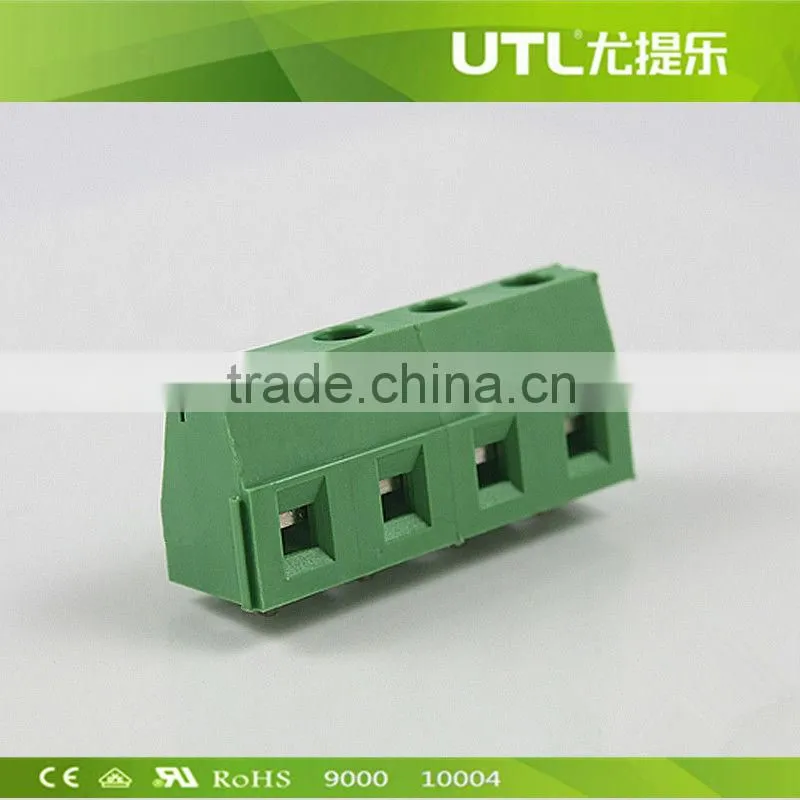

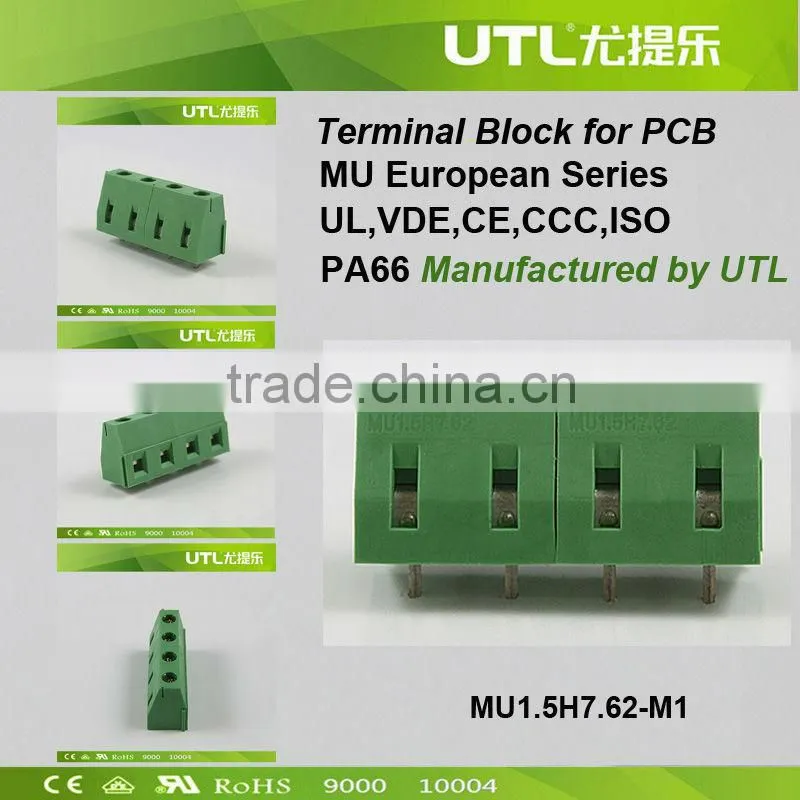

New UTL MU1.5H7.62-M1 Pitch 7.62 PCB Mount Terminal Block
1. PCB Mounted.
2. Screw Type.
3. CE, UL, ROHS.
4. OEM Acceptable.
UTL ELECTRICAL CO,. LTD. is a PROFESSIONAL MANUFACTURE of all kinds of terminal blocks, which was founded in 1990. Through persistent research and development, we have grown into a leading manufacturer of this field. The main products have gained the certifications, such as VDE, UL, CE, RoHS, ISO9001, CCC and CCS etc.
Brief Introduction
1. Terminals with universal mounting feet which can be installed on the PCB Boards.
2. Closed screw pilot holes to ensure ideal screwdriver operation .
3. For a plurality of cross-sectional level of terminals equipped with a unified attachments,
such as the end plates, packet separator.
4. Potential distribution through a fixed bridge or insert line access terminals central cavity
side plug -in bridge .
5. Terminal: With general-purpose mounting feet, can be installed on computers telephones etc.
6. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt
from dropping out.
7. Electric potential distribution is realized by eitherconnecting central adaptor to the center of
terminal or inserting a side adaptor to the cone jack.
8. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal
with multiple sections.
9. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of
high mechanical intensity, good electic property, and super flexibility.
10. Two ends on the top with white marking system to realize uniformed sign.
11. 15 years lifetime.
12. OEM acceptable.
Parameter
Voltage | 300V |
Current | 15A |
Wire Size(AWG) | 30-14 |
Cross Section | 0.5 |
Solid(mm2) | 0.14-1.5mm2 |
Strand(mm2) | 0.14-1.5mm2 |
Torque(N*m) | 0.5-0.6 |
Insulation Material | PA66 |
Inflammability Class(UL94) | V0 |
Contact | Phosphor Bronze |
Screw | M3 Steel |
Operation Temperature | -40°c~+120°c |
Pitch | 7.62mm |
Drawings
Product Details
Factory Details
Injection Workshop--15 Injection molding machines & Mold workshop--Design all kinds of terminals
Storage Warehouse--Prepared to be shipped & package to be cartons
Product Line
