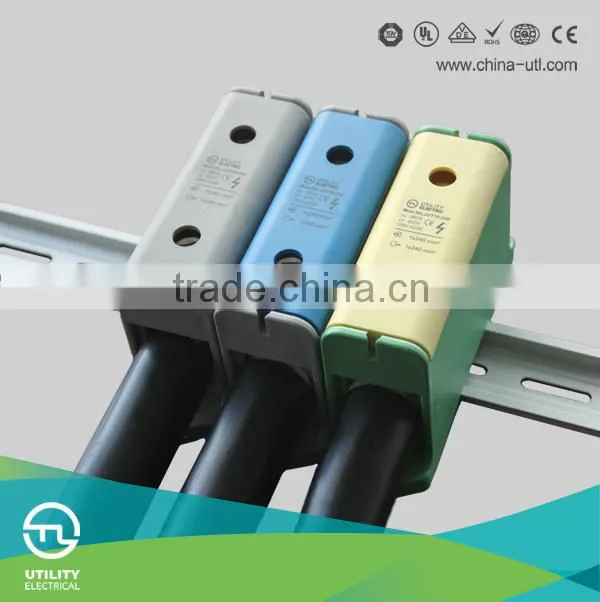

Newest UTL JUT10-150 KE63 Terminal for Al/Cu Conductor
1. CE, RoHS
2. Al, Cu
3. High Quality
4. OEM Acceptable
Details
JUT10-50 Universal Terminal for Al/Conductors
Conductor Cross-section(mm²): Cu 2.5~50mm² Al 6~50mm²
Coneductor Size(AWG): 1/0~6
Cover Material: Polyamide
Mounting: DIN rail
Screw: Hexagon 5mm
Operating Temperature(°C): Max 80°C
Standard: EN61238-1,EN60947-7-2
JUT10-95 Universal Terminal for Al/Conductors
Conductor Cross-section(mm²):16~95 mm²
Coneductor Size(AWG):4/0~4
Cover Material: Polyamide
Mounting: DIN rail
Screw: Hexagon 5mm
Operating Temperature(°C): Max 80°C
Standard: EN 61238-1,EN 60947-7-1
JUT10-150 Universal Terminal for Al/Conductors
Conductor Cross-section(mm²): 35~150 mm²
Coneductor Size(AWG): 300~2
Mounting: DIN rail
Screw: Hexagon 8mm
Operating Temperature(°C): Max 80°C
Standard: SFS 2663
JUT10-240 Universal Terminal for Al/Conductors
Conductor Cross-section(mm²): 35~240 mm²
Coneductor Size(AWG): 500~3/0
Mounting: DIN rail/Screw
Screw: Hexagon 8mm
Operating Temperature(°C): Max 80°C
Standard: EN 61238-1, EN 60947-7-1

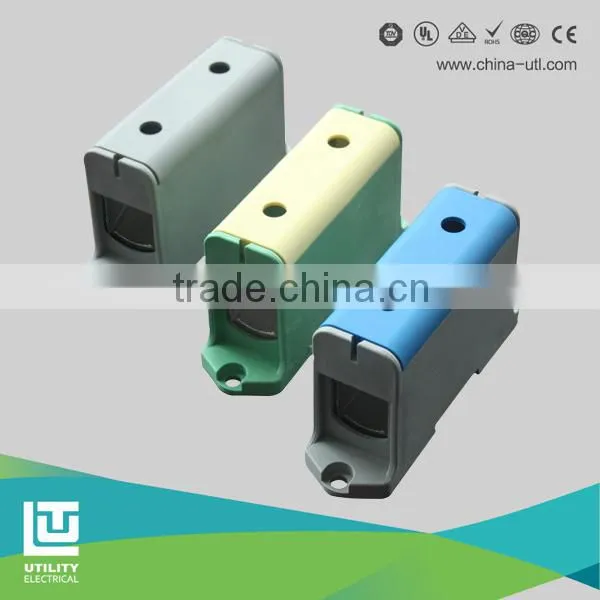

Pictures
JUT10-50
JUT10-95
JUT10-150
JUT10-240
| Model No. | Color | Pole | Tighten torque(Nm) | Current(A) | Voltage(V) | Weight(g) | |
| JUT10-50-PE | Yellow/Green | 1 pole Al/Cu 2.5~50mm² |
4Nm(35~95mm²) 12Nm(120~150mm²) |
Cu:160A Al: 145A |
800V | 35g | |
| JUT10-50-GY | Grey | ||||||
| JUT10-50-BE | Blue | ||||||
| JUT10-95-PE | Yellow/Green | 1 pole Al/Cu 16~95mm² |
20Nm |
Cu: 245A Al: 220A |
800V | 90g | |
| JUT10-95-GY | Grey | ||||||
| JUT10-95-BE | Blue | ||||||
| JUT10-150-PE | Yellow/Green | 1 pole Al/Cu 35~150mm² |
14Nm(35~95mm²) 24Nm(120~150mm²) |
Cu: 320A Al: 290A |
750V | 160g | |
| JUT10-150-GY | Grey | ||||||
| JUT10-150-BE | Blue | ||||||
| JUT10-240-PE | Yellow/Green | 1 pole Al/Cu 35~240mm² |
12Nm(35~70mm²) 40Nm(95~240mm²) |
Cu: 425A Al: 380A |
800V | 306g | |
| JUT10-240-GY | Grey | ||||||
| JUT10-240-BE | Blue |
Newest UTL JUT10-150 KE63 Terminal for Al/Cu Conductor

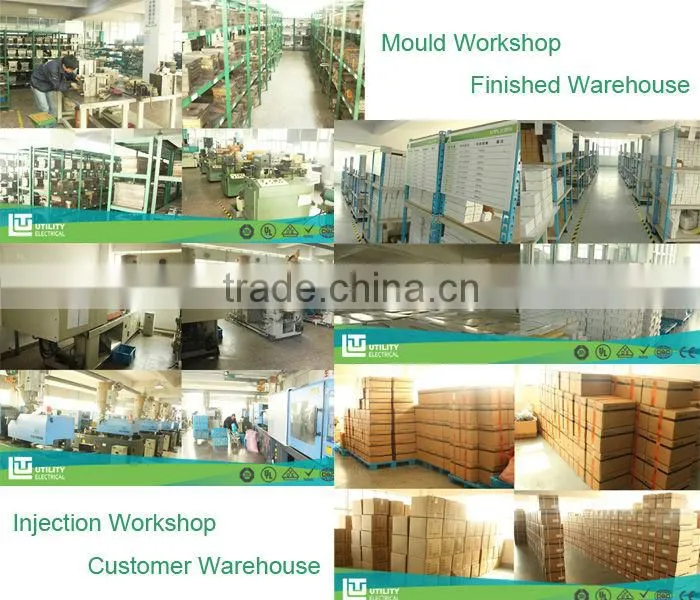

Factory
Certifications
Power Cable Terminal Block
