Specifications
New AD108-22ES 220V LED Cabinet Indicator Light1. High Quality
2. LED Lamp
3. CE, CCC, UL, ROHS
4. OEM Service
UTILITY ELECTRICAL CO.,LTD.

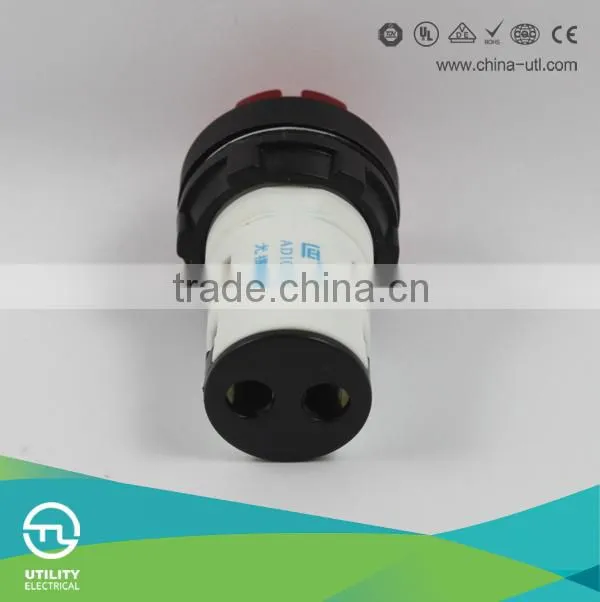

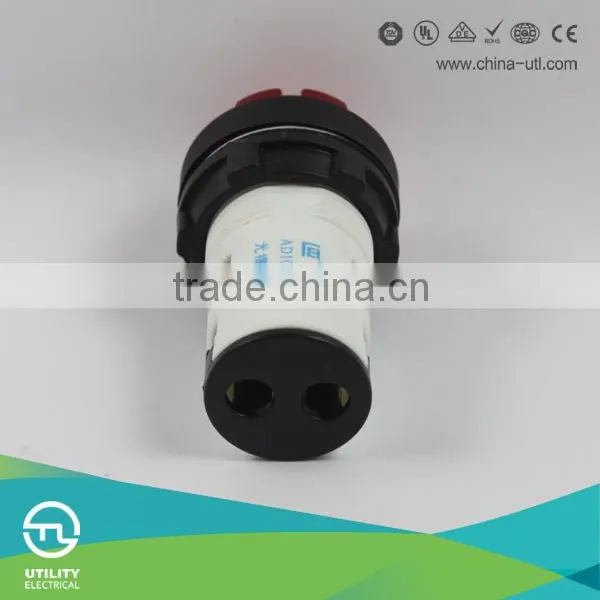

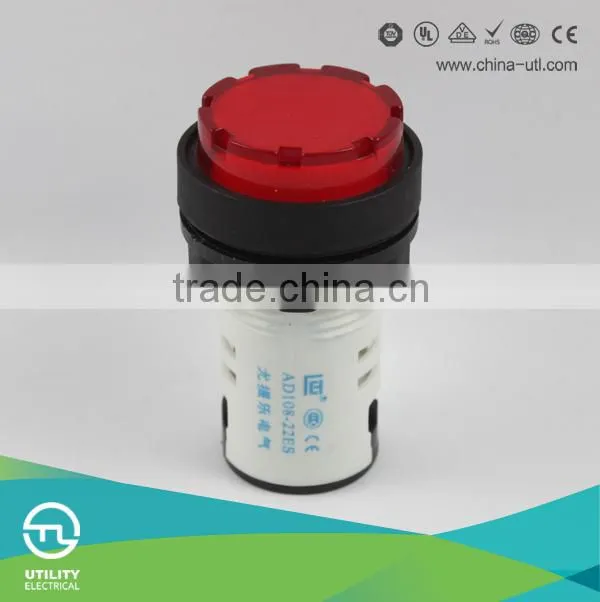

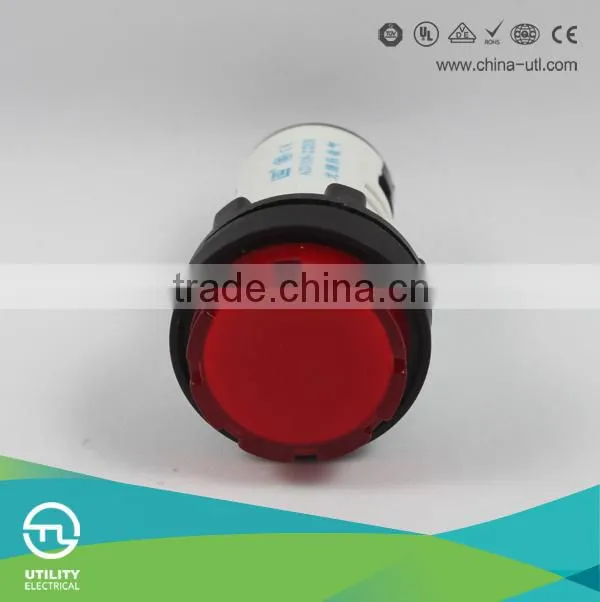

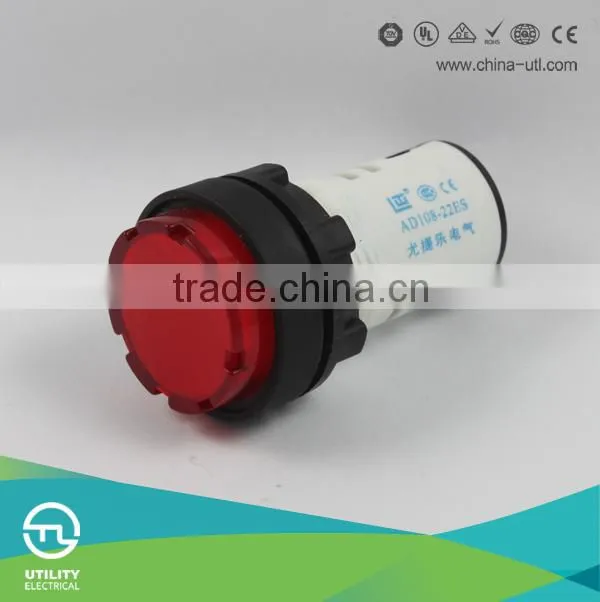

New AD108-22ES 220V RED LED Indicator lamp
1. High Quality
2. LED Lamp
3. CE, CCC, UL, ROHS
4. OEM Service
UTL ELECTRICAL CO,. LTD. is a PROFESSIONAL MANUFACTURE of all kinds of TERMINAL BLOCKS, PUSH BUTTONS, INDICATOR LIGHTS..which was founded in 1990. Through persistent research and development, we have grown into a leading manufacturer of this field. The main products have gained the certifications, such as VDE, UL, CE, RoHS, ISO9001, CCC and CCS etc.
Brief Introduction
1. The ultra-short type is suitable for installing in a narrow space.
2. All lights are suitable for mounting holesΦ22~ Φ25 without additional accessories.
3. All the signal lamp should adopt high-luminace LED light source.
4. DC power supply can be replaced by AC.
5. For heat dissipation condition, the electric discharge lamp and over DC220V has no super-short type, so we could provide common signal lamp abd common discharge lamp.
Parameter
| Power Frequency withstand Voltage | 2.5KV/1min(effective AC value) |
| Insulation Resistance | ≥2mΩ |
| Allowabie Voltage Fluctuation | ±20% |
| Continuous Operating Life | ≥30000h |
| Brightness | ≥100cd/m2 |
| CT1 | ≥100 |
| Protection Degree | Head IP65(OEM could be IP67) |
| Applying Frequency | AC50~60HZ |
| Ambient Temperature | -25°c~+50°c |
| Relative Humidity | ≤98% |
| Polltion Degree | 3 |
| Installs Group | III |
Voltages: AC220/AC380/AC.DC6/AC.DC12/AC.DC24/AC.DC36/AC.DC48/AC.DC110/AC.DC127/DC220/FD380
Colour:
Red, Yellow, Green, Blue, White
Product Details
Drawing
Factory Details
Injection Workshop--15 Injection molding machines & Mold workshop--Design all kinds of terminals
Storage Warehouse--Prepared to be shipped & package to be cartons

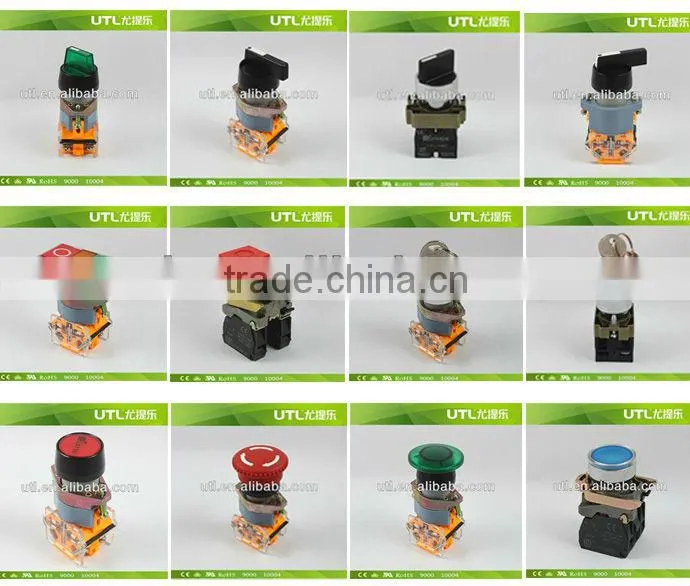

Other Types
