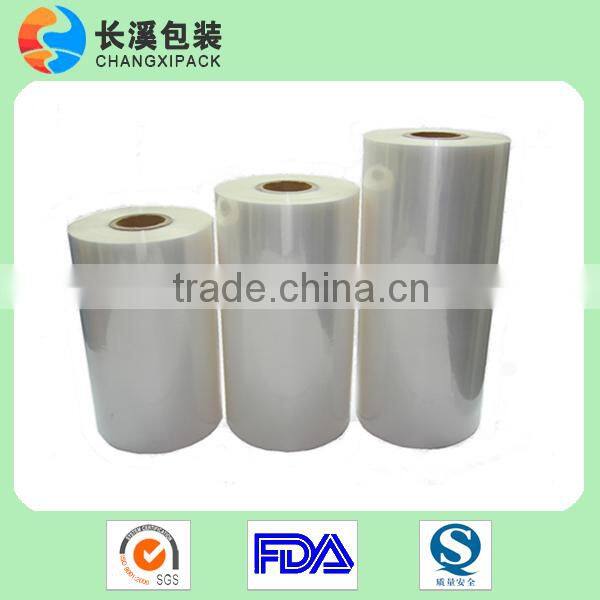

EVOH Transparent Color Plastic Film

Name: EVOH Transparent Color Plastic Film
Brand: changxipack
Availability: InStock

FOB Price

US$ 3.6 - 4.5 / Kilogram

500 Kilograms(Min. Order)

Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Polyimide	Type	Other
Usage	Other, Food&Medicine Film	Feature	Moisture Proof
Hardness	Soft	Processing Type	Multiple Extrusion
Transparency	Transparent	Place of Origin	China
Brand Name	changxipack	Model Number	changxi01

Product Description

Specifications

1. High barrier,High transparent
2.SGS. FDA BPA free

product description

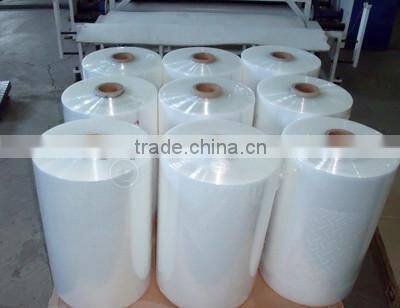

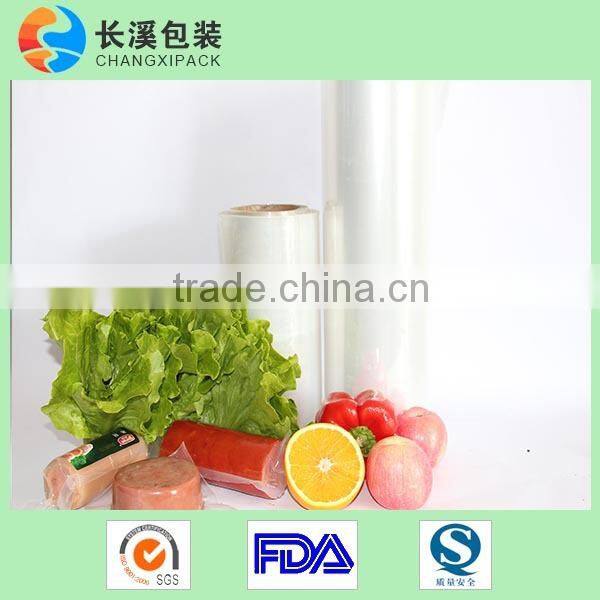

Product Show&Application

Details

Material: EVOH PA PE PP TIE

Processing type: 7-layer co-extrusion

Thickness :60-280 micron

Width: within 1000mm

Hot temperature: Under 100c.d and under 121°c

Low temperature: -30°c

Heat sealing temp:110°c-150°c

Features:

♦Highly transparent

♦Puncture and toughness resistance

♦Good thermoforming property

♦Environmetally Friendly

♦Excellent Barrier to Oxygen and Moisture proof

♦Low temperature Frozen -30℃ to high temperature Sterilization 121℃

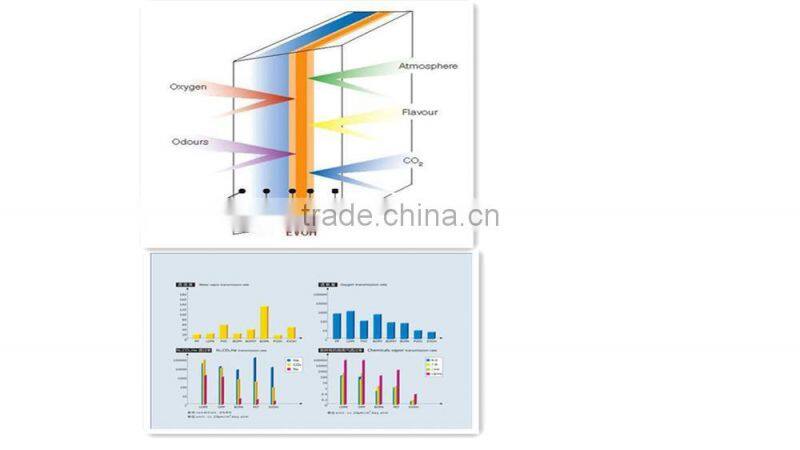

Material property:

Specification:

Production series	Barrier property	Structure	Advantages
HBE	♦♦♦♦♦	PA/TIE/PA/EVOH/PA/TIE/PE PE/TIE/PA/EVOH/PA/TIE/PE	EVOH barrier layer, high barrier performance; PA layer, good puncture resistance
HBP	♦♦♦♦♦	PA/TIE/PA/EVOH/PA/TIE/PP PP/TIE/PA/EVOH/PA/TIE/PP	EVOH,PA good barrier performance; PP sealant layer, high temperature resistance ;
MBE	♦♦♦	PA/TIE/PE/TIE/PA/TIE/PE PE/PE/TIE/PA/TIE/PE/PE	PA barrier layer, medium barrier performance; PE layer;excellent sealing property
MBP	♦♦♦	PA/TIE/PE/TIE/PA/TIE/PP PP/PP/TIE/PA/TIE/PP/PP	PA barrier layer, medium barrier performance PP sealant layer, high temperature resistance

Data Sheet:

Properties		Unit	Typical Value	Test Value
Tensile strength	MD	N/25mm	DIN 53455-6	400
Tensile strength	TD	N/25mm	DIN 53455-6	450
Elongation	MD	%	DIN 53455-6	560
Elongation	TD	%	DIN 53455-6	570
Heat seal strength		N/15mm	DIN 53455-6	39/368,33/8,40/243
Haze		%		7.9
Gloss		%		87
C.O.F	US	In/in	<0.3
	UK	In/in
	US	Out/out	<0.5
	UK	Out/out
WTR (at 38℃, %RII,1 atm )		g/m^2*24h	DIN 53122	<3
OTR (at 23℃,Dry,1 atm)		Cc/m^2*24h	DIN 33880	<12
Resistance hot		℃	121
Resistance cold		℃	-20
