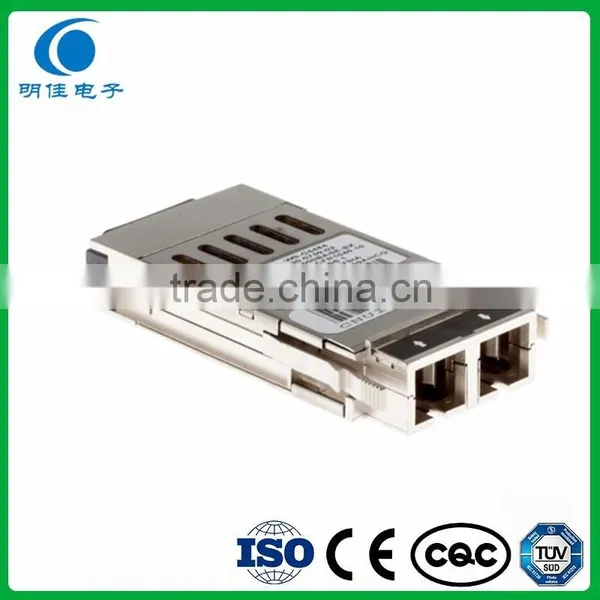

1.25G 1470nm~1610nm CWDM GBIC 80km Single Mode Optical Transceiver
US$ 10 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
MJ-CGB-1GXX-80-xx
Model Number:
CGB-1GXX-80-xx
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.25G 1310nmT/1490nmR BIDI GBIC 20km Single Mode Optical TransceiverUS$ 10 - 1,000MOQ: 1 Piece -
1.25G 1470nm~1610nm CWDM GBIC 40km Single Mode Optical TransceiverUS$ 10 - 1,000MOQ: 1 Piece
-
1.25G 1470nm~1610nm CWDM GBIC 70km Single Mode Optical TransceiverUS$ 10 - 1,000MOQ: 1 Piece
-
1.25G 1470nm~1610nm CWDM GBIC 60km Single Mode Optical TransceiverUS$ 10 - 1,000MOQ: 1 Piece
-
100GBASE-SR10 100m CXP Optical Transceiver ModuleUS$ 800 - 850MOQ: 1 Piece
Place of Origin
Hubei, China
Brand Name
MJ-CGB-1GXX-80-xx
Model Number
CGB-1GXX-80-xx
1.25G 1470nm~1610nm CWDM GBIC 80km Single Mode Optical Transceiver
CGB-1GXX-80-xx
The CWDM GBIC transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 40km transmission distance with SMF. The transceivers meet the Gigabit Interface Converter (GBIC) specification Rev.5.5, for serial optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI application. This module is designed for single-mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eight center wavelengths available from 1470 nm to 1610 nm, with each step 20 nm.The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Key Features
Data-rate of 1.25Gbps operation8-Wavelength CWDM DFB LD Transmitter from 1470nm to 1610nm, with step 20nmAverage Output Power:-5~0dBmReceiver Sensitivity:-24dBm
Transmiss Distance:80km
3.3/5V Power Supply and TTL Logic InterfaceHot Pluggable with Duplex SC Connector InterfaceClass 1 FDA and IEC60825-1 Laser Safety CompliantCompliant with GBIC Specification Rev. 5.5
