  New waterproof limit switch





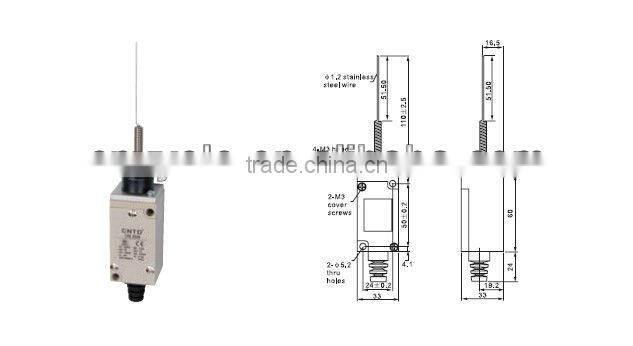

2015 New waterproof IP65 on off electrical switches CHL-5330







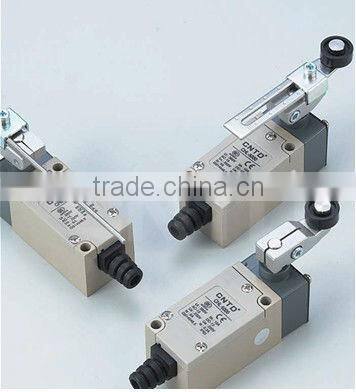

Features
 Metallic bottom shell
 Stainless steel roller,punch and spring

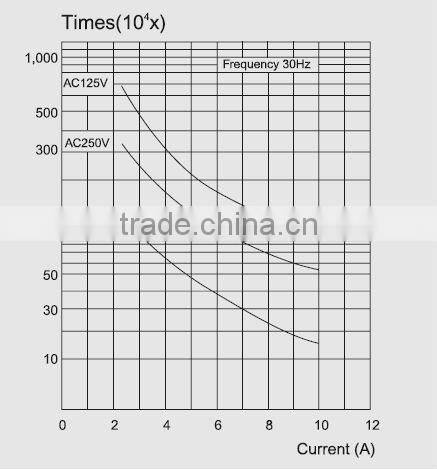

 Strong electric property 10A ,250V,for 500,000 times







  Electrical Life





2015 New waterproof IP65 on off electrical switches CHL-5330









Specifications

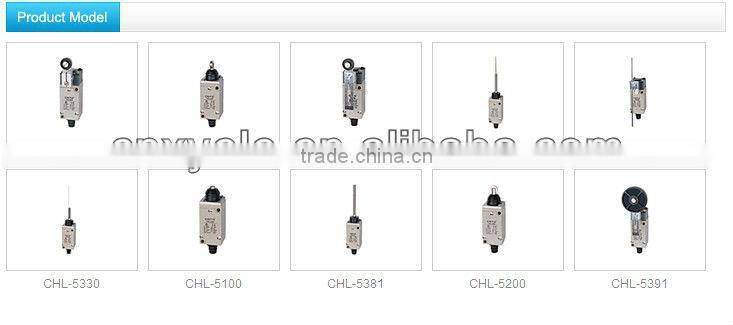

Model CHL 5000 5030 5050 5100 5200 5220 5300 5330 5381 5391
Opening force OF(Max.) 750g-cm 750g-cm 750g-cm 750g-cm 900g-cm 900g-cm 150g 150g 150g 550g-cm
Release force RF(Min.) 100g-cm 100g-cm 100g-cm 200g 200g 200g 30g 30g 30g 100g-cm
Pre-travel PT(Max.) 20° 20° 20° 1.8mm 1.8mm 1.8mm 30mm 30mm 30mm 20°
Tripping position TP ± 10% 22.5° 22.5° 22.5° 2.0mm 2.0mm 2.0mm 22.5° 22.5° 22.5° 22.5°
Movement differential MD(Max.) 10° 10° 10° 1.2mm 1.2mm 10° 14° 14° 14° 14°
Over travel OT(Min.) 75° 75° 75° 4.0mm 4.0mm 4.0mm 20mm 20mm 20mm 75°
Total travel TT(Min.) 95° 95° 95° 5.8mm 5.8mm 5.8mm 50mm 50mm 50mm 95°









Product Features
Double Break Mechanism INO+INC Force Break snap action
Rated Voltage / Current 10(4)A,125,250VAC / 6(2)A,380VAC     For inductance Load ,Cos Φ =0.4
Contact Resistance 25mΩ max.(initial value)
Insultation Resistance 100mΩ min.(at 500VDC)
Dielectric Strength 1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
1500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
1500VAC,50/60 Hz for 1 minute between each terminal and ground
Electrical Life 500,000 at 10A 250VAC Resistive
Mechanical Life 10,000,000 operations min.(under rated conditions)
Operating Speed 5mm/s to 0.5m/s
Degree of Protection IP65
Ambient Temperature Rised Max 30°C over ambient temperature at rated voltage/current
Conformed Standards Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660
Operating Temperature -5°C~+65°C (with no icing)
Storage Temperature -5°C~+65°C (with no icing)
Ambient Operating Humidity 95% RH Max.
Shock Resistance Mechanical durable:1000m/s²min.
Malfunction:300m/s²min.
Vibration Frequency Malfunction:10 to 55Hz,1.5mm double amplitude
Terminal Screw Torsional Force 6-8 kgf-cm
Other Screw Torsional Force Cover 12-14 kgf-cm/Head  8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare Wire Diameter Φ2 Max
Cable Diameter Φ9 Max(IP 65 if use cable Φ8-9)
