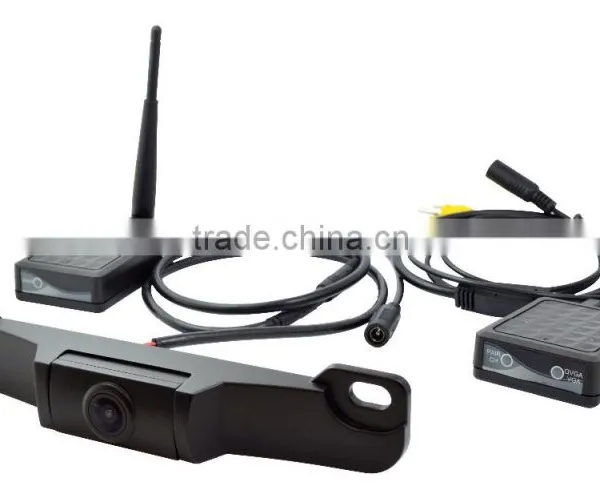

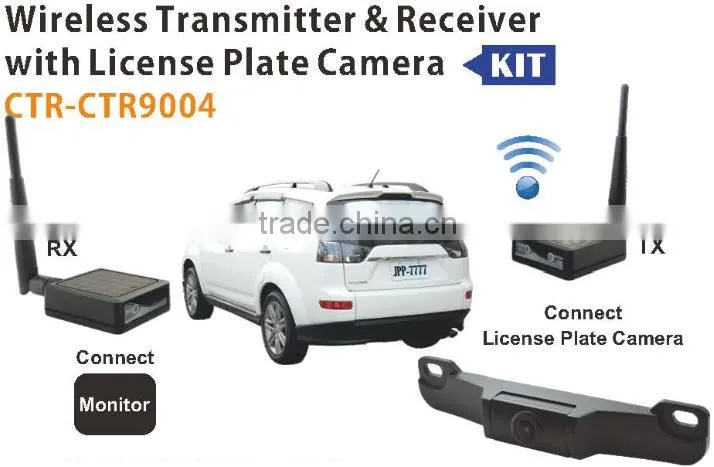

CTR-CTR9004, Wireless Transmitter & Receiver with License Plate Camera

Model no.: CTR-CTR9004

Wireless Transmitter & Receiver with License Plate Camera

Camera Specification

Input Voltage : DC5+/-1V

System : NTSC/ PAL

Range : 100m (open side)

Transfer Resolution : 640 x 480 (VGA) up to 25 fps

Video Compression : MJPEG

RF Frequency ; 2.4GHz ISMBand

Standard : WiFi 802.11b/g/n

Video Output : 1 Vp-p composite

Connectors : 8 pin and DC jack for power in

TX Box

Input Voltage : DC6V-24V

Operating Current : 80mA

Connectors : RCA for video input and DC jack for power in

Trabsmitting Power : 12dBm@11n /  17dBm@11b /  14dBm@11g

Sensitivity : 11Mbps -83dBm@8% /  54Mbps -73dBm@10% /  130Mbps -64dBm@10%

Dimension : 50(W)*18(H)*60(L-without cable SR) mm
