Model no.: C-TWDP4

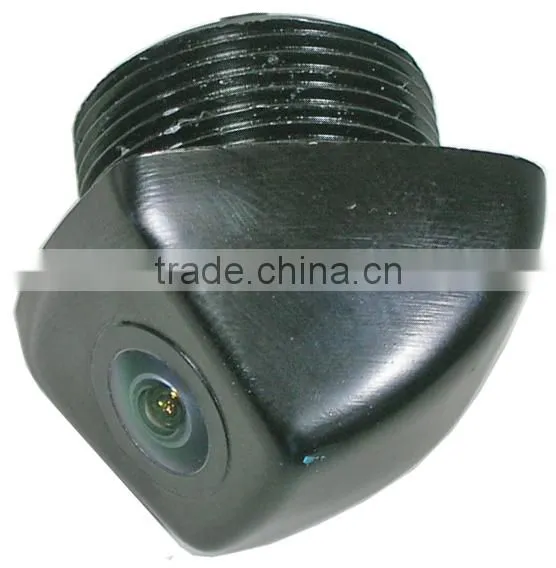

700 TVL waterproof IP69K backup car Camera wide angle 175(D)
l Wide View angle:175(D)
l WDR (Wide Dynamic Range)
l Wide power range DC7-18V
l With Micro phone
l HD-1280*720 (700 TV Line)
l IP-69K
l Dimensions: 36(W)*36(H)*36(D)mm
l Made in Taiwan
Specification:
Water proof: |
IP69 |
Image sensor |
APTINA –AR0141 |
Pixels |
1280*720 |
Pixel dynamic range |
96 dB |
Lens element |
4G2P |
View angle--- TP4 |
175(D), 145(H), 80(V) |
View angle--- TP41 |
75(D), 60(H), 45(V) |
Resolution (TV Lines) |
700 TV Lines |
S/N Ratio |
more than 48dB |
Illumination |
0.2 Lux |
Electronic shutter |
50/60 fps |
Gamma Correction |
0.45 |
Back light compensation |
Yes |
Shutter |
Auto |
Gain Control |
Auto |
Sync. System |
Internal sync |
Video output |
1Vp-p , 75 ohm composite |
Storage temperature |
-40 to 80 Degree C |
Working temperature |
-30 to 70 Degree C |
Power source |
DC 7~18 V |
Power current |
100 mA (12V) |
Cable standard |
1+0.2M=1.2M |
Cable option |
10M |
Normal/mirror image |
Factory pre-define |
Weight |
60g |
Install hole |
28~30mm |
