Model no.: C-TR5

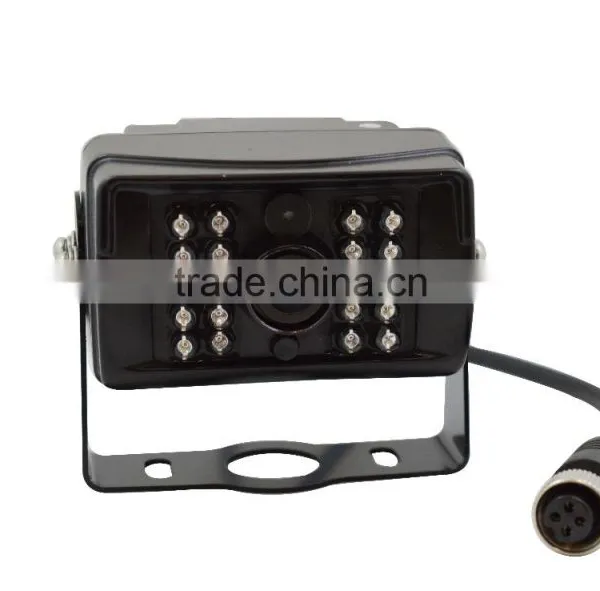

700 TVL HD Camera waterproof IP69K Heavy Duty back up camera 18 IR LED wide angle 180(D)
l Wide View angle:180(D)
l WDR (Wide Dynamic Range)
l Wide angle IR x 18 pcs
l Wide power range DC9-36V
l With Micro phone
l HD-1280*720 (700 TV Line)
l IP-69K
l Dimensions: 77(W)*49(H)*56(D)mm(without bracket)
l Made in Taiwan
Specification:
Water proof: |
IP69K |
Image sensor |
APTINA –AR0141 |
Pixels |
1280*720 |
Pixel dynamic range |
96 dB |
Lens element |
4G2P |
IR |
850 (5mm*18pcs) |
View angle |
175(D), 145(H), 80(V) |
Resolution (TV Lines) |
700 TV Lines |
S/N Ratio |
more than 48dB |
Illumination |
0 Lux/ IR on |
Electronic shutter |
50/60 fps |
Gamma Correction |
0.45 |
Back light compensation |
Yes |
Shutter |
Auto |
Gain Control |
Auto |
Sync. System |
Internal sync |
Video output |
1Vp-p , 75 ohm composite |
Storage temperature |
-40 to 80 Degree C |
Working temperature |
-30 to 70 Degree C |
Power source |
DC 9~36 V |
Power current |
200 mA (12V)---- IR ON |
Cable standard |
0.7+1=1.7M (RCA*2+DC) |
Option cable |
5,8,10,15,20,25M extension |
Bracket |
Stainless steel |
Normal/mirror image |
Factory pre-define |
Weight |
410g |
