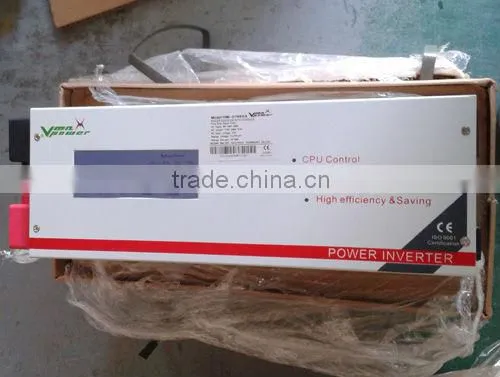

Vmaxpower UPS

Name: Vmaxpower UPS
Brand: Multifit
SKU: 118299485

US$ 80 - 120 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Multifit

Model Number:

MU-D500

Beijing Multifit Electrical Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Multifit

Model Number MU-D500

Output Power 301 - 400W

Output Type Single

Size 510*200*350mm

Weight 10KG

Input Voltage 12/24V

Output Voltage 220V/230V

Type Other, DC/AC Inverters, Standby

Output Frequency 50Hz/60Hz

Output Current 30A

Specifications

500VA-800VA
UPS
Transfer time: less than 4ms
Overload and short circuit protection

Model/Power		VMI-D500	VMI-D1000	VMI-D2000	VMI-D3000	VMI-D4000	VMI-D5000
Model/Power		500VA	1000VA	2000VA	3000VA	4000VA	5000VA
DC Input	Voltage (V DC)	12V	24V	48V	48V	48V	48V
	Current (A)	40A	40A	50A	75A	100A	125A
	DC Range	10~15V	20~30V	40~60V
AC Bypass	Input Voltage (V)	160V~280V / 95V-135V
	Input Frequency (Hz)	45-55 / 55-65
	Bypass Current	2.3A / 5A	4.5A / 9A	9.1A / 18A	13.6A / 27A	18.2A / 36A	22.7A / 45A
	Charge Current (A)	10A - 30A - 50A
	Transfer Time	≤ 4ms
	Out Put Votalge	220V ± 3% AC / 110V ± 3% AC
	Frequency	50Hz ± 0.5% / 60Hz ± 0.5%
Output	Power factor	0.7
	Power	350W	700W	1400W	2100W	2800W	3500W
	Generator working	Work With Generator
	THD	Less than 3%
	Effiency	85%
	Waveform	Pure Sine Wave Form
Protection	Over Temperature	Yes
	Over voltage	Yes
	Under voltage	Yes
	Over load	Yes
	Short circuit	Yes
Function	Panel	LED Display
	Automatic charge	Yes
	Voltage	110V / 220V / 230V Optional,CPU Control
	Frequency	50Hz / 60Hz Optional,CPU Control
	Battery Manager	Automatic Manager of Battery Charging,extend the Battery Life
	Beeping	Inverter Mode,Beeping Sound or Slience Optional
Environmental	Temerature	20^oC ~ 45^oC
	Humidity	0% ~ 95%
	Noise	≤40dB (1M)
Physical	Net Weight	9.5	15	19.5	26.5	30.5	36
	Gross Weight	12	18	23	30	34	39
	Dimension for Unit	510 x 200 x 350		510 x 200 x 350
	Dimension for Packing	560 x 240x380		560 x 240x380
	Output socket	2	2	2	2	2	2
