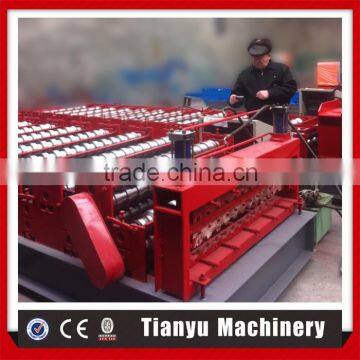

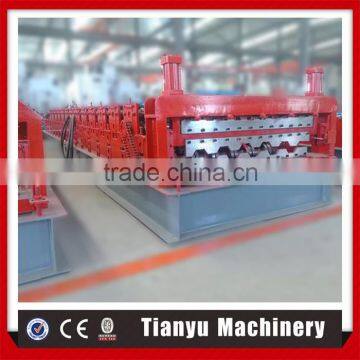

Aluminium roof panel automatic double layer roll forming machine
USD $7,299 - $26,499
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- TIANJIN XINGANG
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Alumimum automatic double layer roll forming machine
-
Africa automatic double layer roll forming machine
-
Adjustable roof panel automatic double layer roll forming machine
-
Adjustable automatic double layer roll forming machine
-
Hot sale abm automatic double layer roll forming machine
-
ibr profile&corrugation sheet metal steel roofing double layer roll forming machine
Product Details
| Condition | New | Type | Other, Tile Forming Machine, china supplier double layer roll forming machine | |
| Tile Type | Other, colored steel and galvanized steel | Use | Roof | |
| Production Capacity | 8-12M/Min | Place of Origin | Hebei, China | |
| Brand Name | TIANYU | Model Number | china supplier double layer roll forming machine | |
| Power(W) | 3kw+4kw | Voltage | 380V.50HZ.3Phase | |
| Dimension(L*W*H) | 6500*1500*1500 | Weight | About 4.5T | |
| Certification | CE &ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Aluminium roof panel automatic double layer roll forming machine
Specification
| Main Technical Parameters: 1.Forming specifications:1000mmx(0.5-0.8mm); 2.Working speed: 15M/min; 3.Roller stations: 13/13 groups station; 4.Main motor power: 4kW; 5.Motor power of hydraulic station: 3kW; 6.Material of rollers: fine 45 forge steel, surface coating chrome; 7.Material of main shaft: adopted fine 45# steel heating process; 8.Diameter of main shaft: φ75mm; 9.Pressure of Hydraulic station: 10~12 Mpa; 10.Material of cuttng blade: Cr12 quenching process; 11Whole machine adopted PLC control; 12.Cutting length tolerance≤2mm.
CONTACT US |

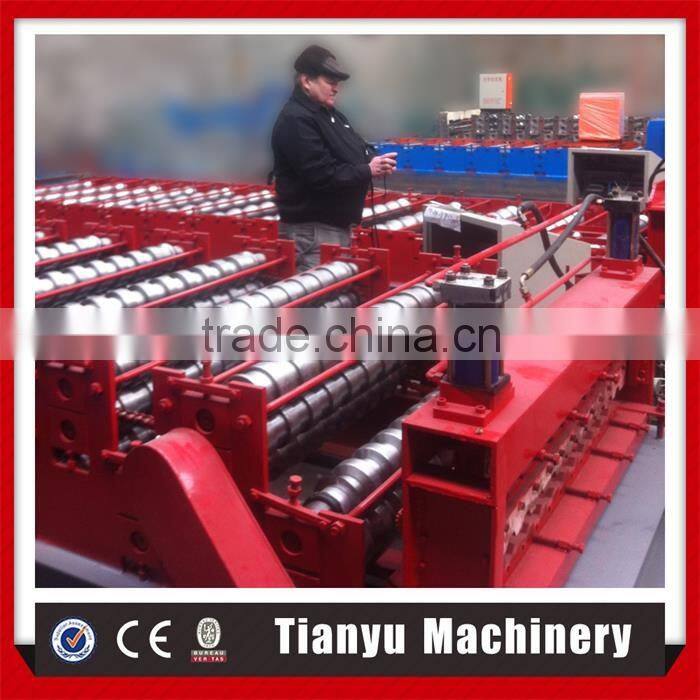

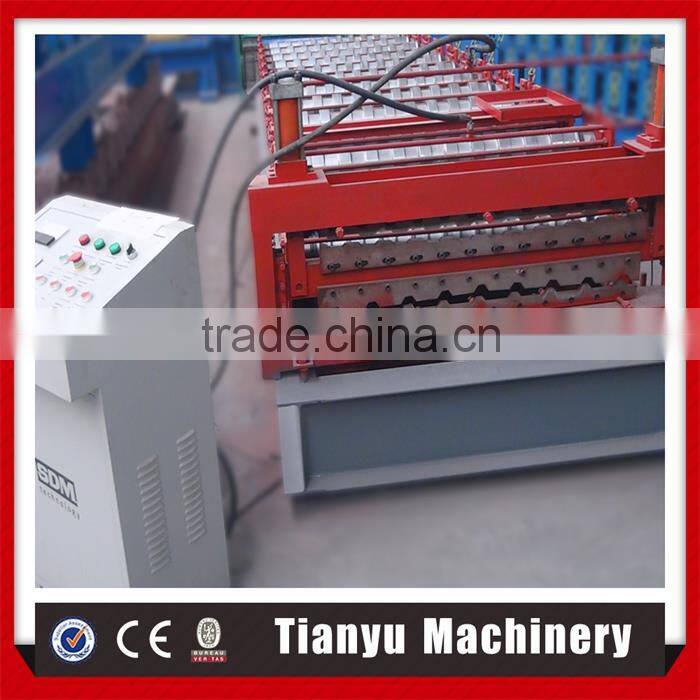

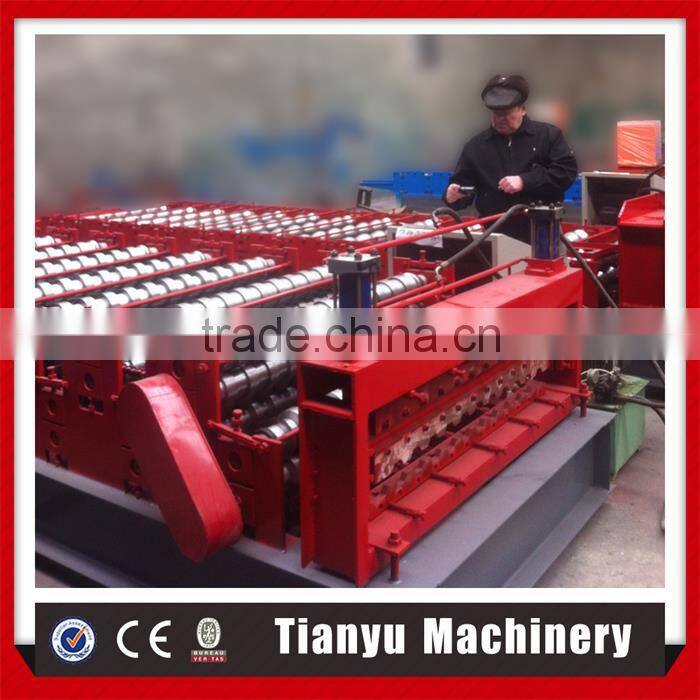

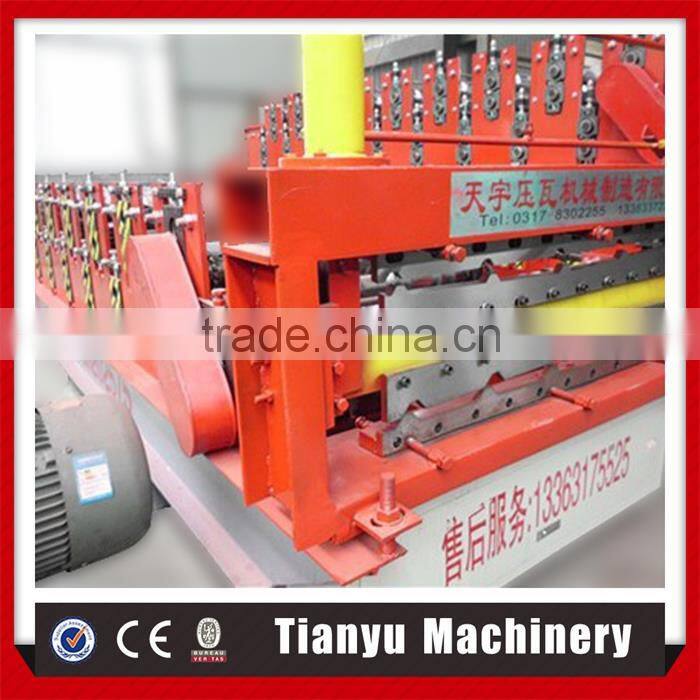

Product show

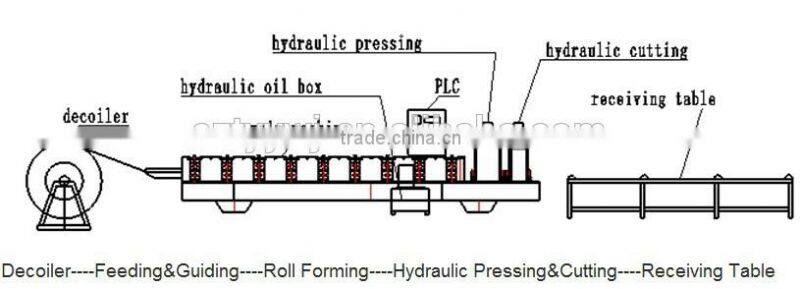

Flow Chart
uncoil ------guide feeding ----- roll forming -----cuting after forming -----output
Whole production line

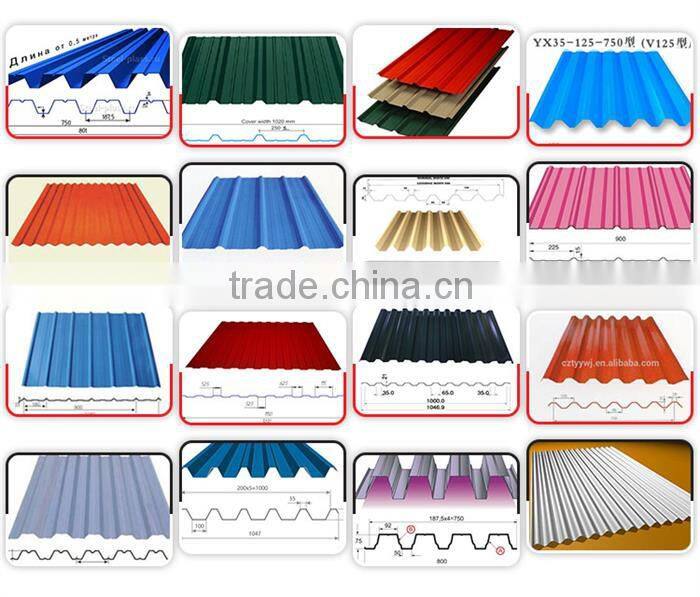

Roof and wall panel smples
FAQ
Q:How is this machine's service life?
- In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
- If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
- Our machine's warranty period is 1 year,if the broken parts can't repair, we can free send the new parts replace the broken parts to you;
Q:Can you supply the raw materials?
- Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
