Hydraulic diamond chain saw fire fighting equipment

Specifications

1 rescue fire fighting equipment
2 earthquake rescue
3 hand operate tool
4 concrete heavy rescue tool
5 INTACA product

          Hydraulic Diamond chain saw rescue fire fighting



Feature:

1.Powerful functions, small size, light weight, portable;

2.Can cut concrete, reinforced concrete, pipes, brick and so on;

3.Can quick cut collapsed concrete precast panel, depth of cutting to 380mm, and quick 4.open hole on the wall and precast panel;

5.Key components like motor, diamond chain, chain panel all import from USA;

6.Diamond weld on the chain is about twice as same type in home, quicker cutting speed   and longer working life.



Application:

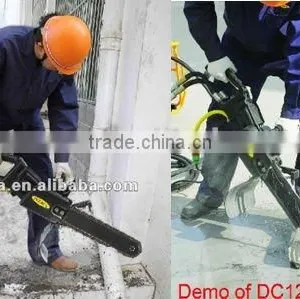

The Hydraulic Diamond chain saw used to cut and quick open hole on collapsed concrete precast panel and reinforced concrete wall in Earthquake rescue and Firefighting rescue application, In order to place life detectors and Lifestyle Article for the trapped people

Specification:

Weight	Chain panel size	Depth of cutting	Flow scope	Working Pressure	Length	Width	Height
12.4 kg	380mmm	380mm	26-34lpm	105-140 bar	585mm	240mm	265mm
