Specifications
1.Small size, light weight, portable2.B&S enigne ,Honda engine
3.CE,ISO9001
4.1 year warranty

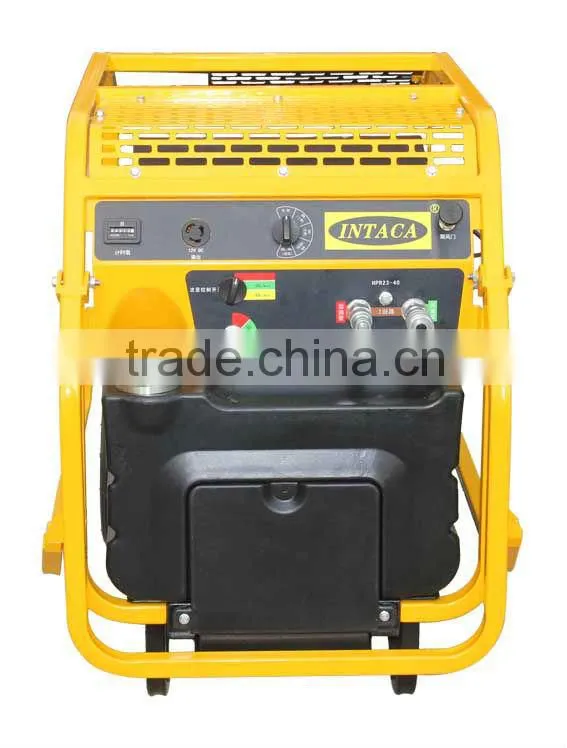

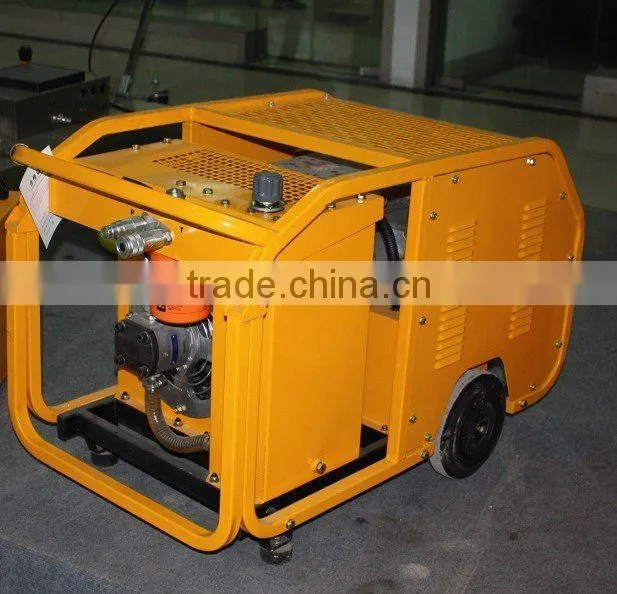

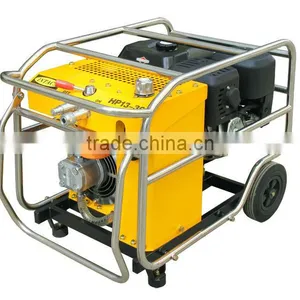

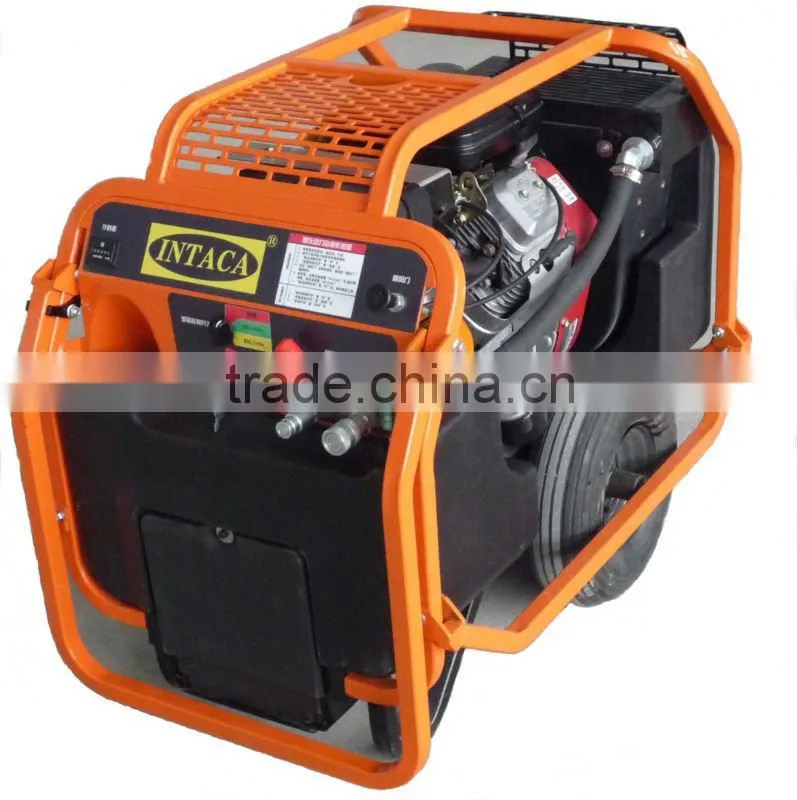

hydraulic power unit

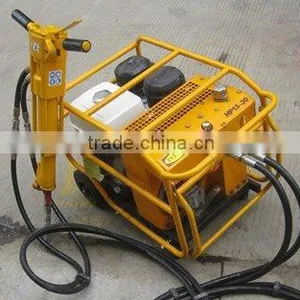

The hydraulic power units supply for INTACA handheld hydraulic tools. It has the characteristics with high efficiency,
lower noise, small size, light weight, high reliability, and good economy. INTACA company has specialized in researching

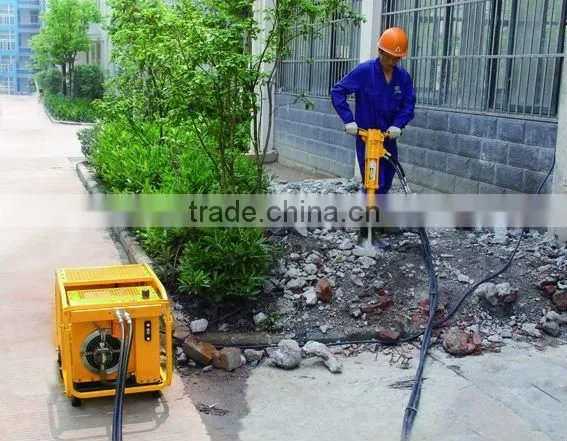

and producing hydraulic handheld tools since 1997 in China, the products mainly used in municipal and highway maintenance,
fire and earthquake rescue, gas and water rush repair, building project,garden planting and so on.
Features
1,Compact structure with stainless steel frame, foldable anti-vibration handles, working smoothly during loading operation
2, Big volume hydraulic oil tank, the large power air-cooler, which makes the cooling system more efficient so it can be worked
for a longer time without overheat problem
3, With external hydraulic filter, easy to change
4, Advanced original high-pressure gear pumps imported
5,Starting up by manual or electricity, simple to operate
There are five kind of hydraulic power units as follow:
Type |
HP09-20 |
HP13-20 |
HP13-30 |

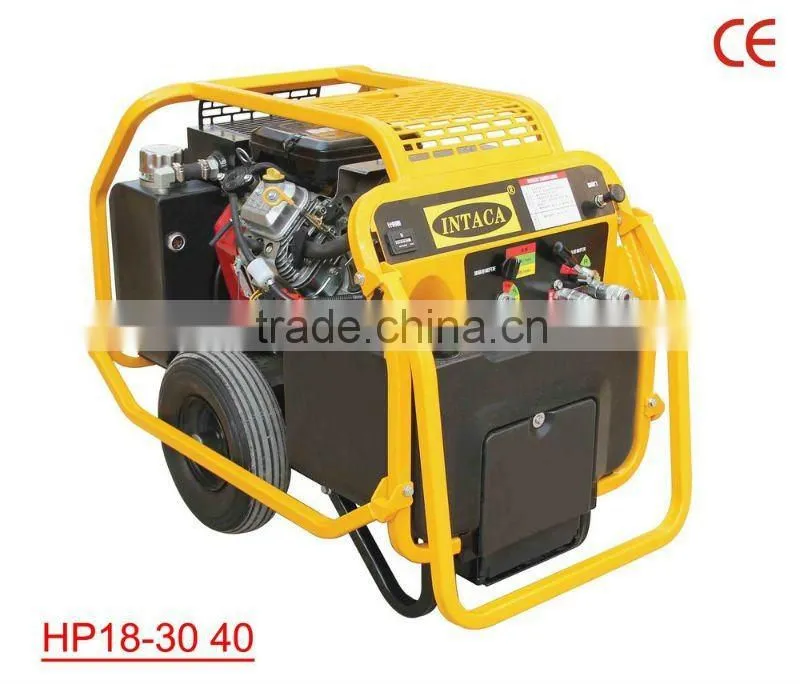

HP18-30 |
HP18-40 |
Weight(kg) |
60 |
75 |
75 |
120 |
120 |
Size(mm) |
780x510x600 |
780x510x600 |
780x510x600 |
900x590x740 |
900x590x740 |
Output flow(l/min) |
20 |
20-24 |
30 |
20/30 |
30/40 |
Output pressure(bar) |
155 |
155 |
155 |
155 |
155 |
|
Engine |
Honda9hp (6.6kw) |
Honda13hp (9.6kw) |
Honda13hp (9.6kw) |
B S18hp (13.2kw) |
B S18hp (13.2kw) |
Wheel/handle |
Yes |
Yes |
Yes |
Yes |
Yes |
Cooling power(hp) |
3 |
5 |
5 |
5 |
5 |
Capability of oil tank(L) |
12 |
12 |
12 |
12 |
12 |
Pollution indication |
Yes |
Yes |
Yes |
Yes |
Yes |
SPECIFICATIONS
|

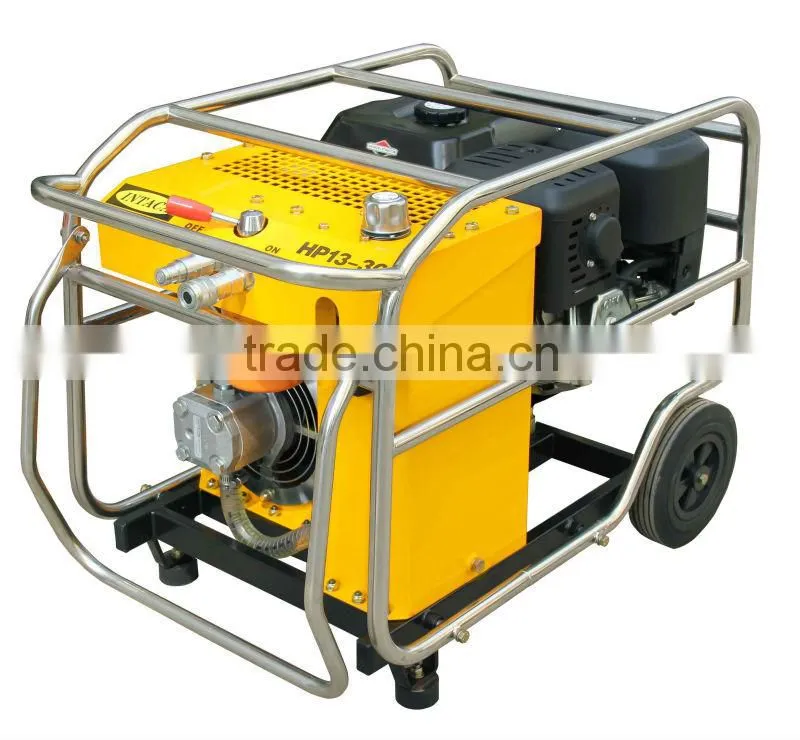

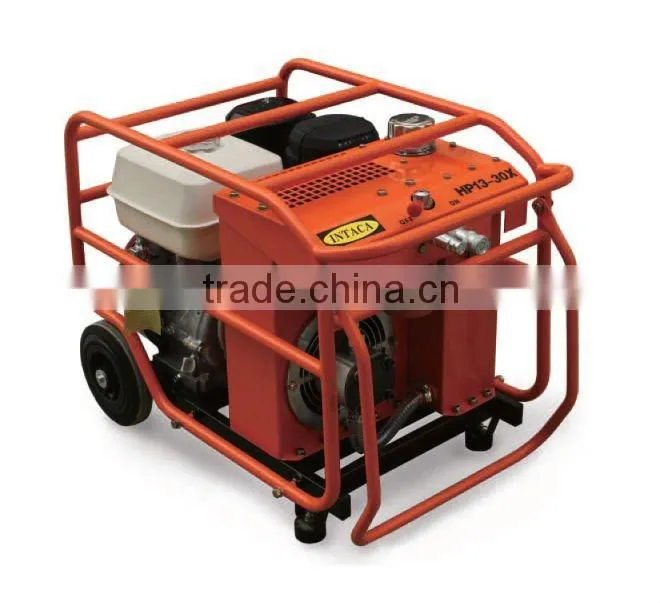

HP13-30 |
Capacity |
30L/min |
Pressure Range |
70~140bar |
Couplers |
HTMA Flush Face Type Male,Female |
Weight |
80kg |
Overall Length |
780mm |
Overall Width |
510mm |
Overall Height |
600mm |
Engine |
Honda13hp |
Fuel Tank Capacity |
12L |
EHTMA Category |
“D” (20L/min, 138bar) |
Sound Power Level |
101Lwa |
Noise |
81db |

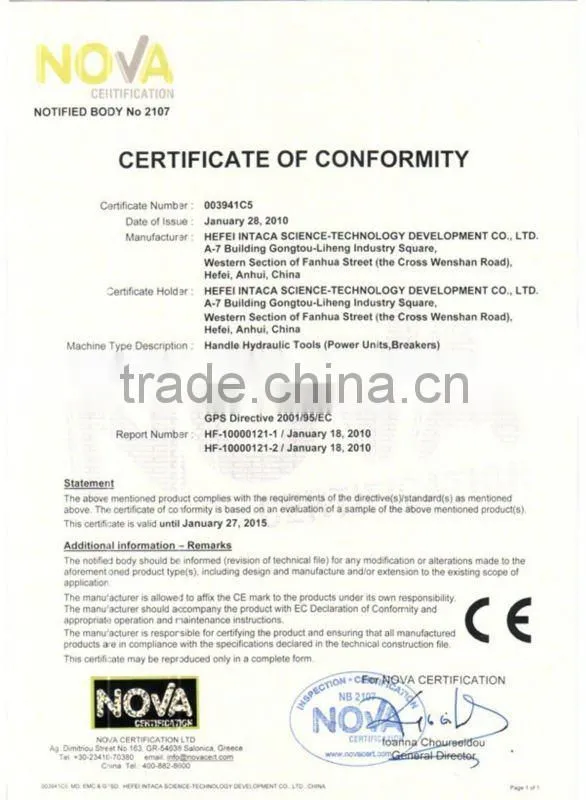

INTACA all hydraulic power units are with CE certification
