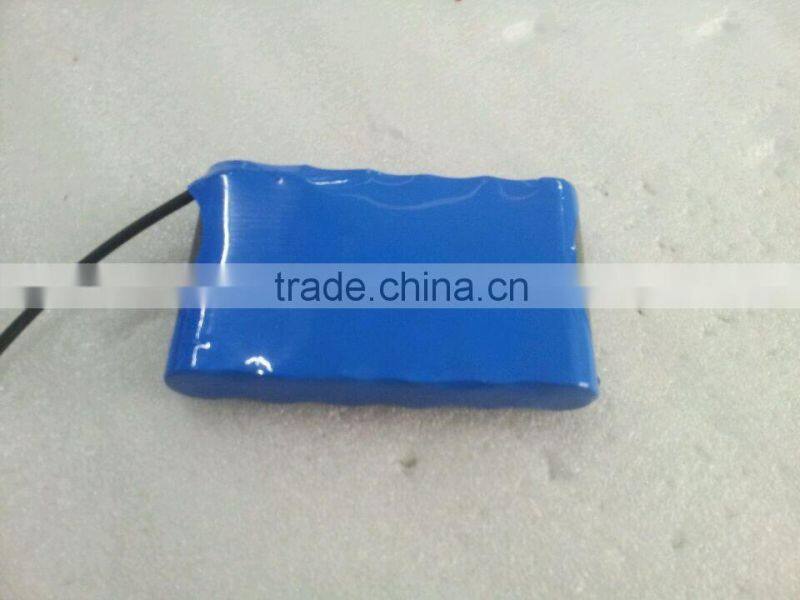

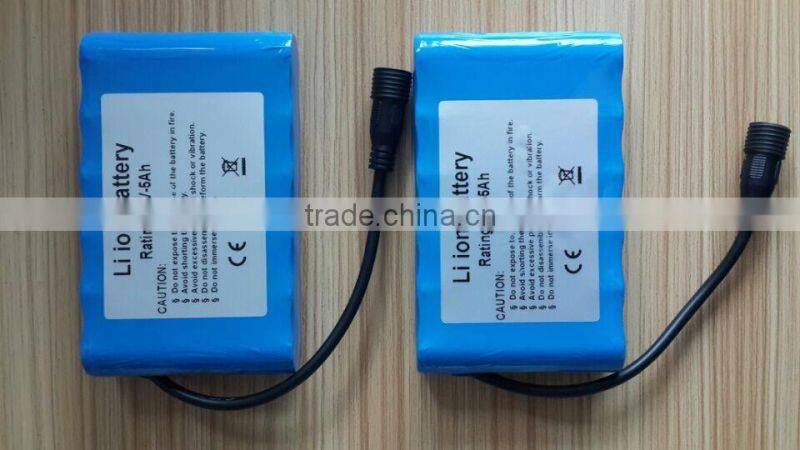

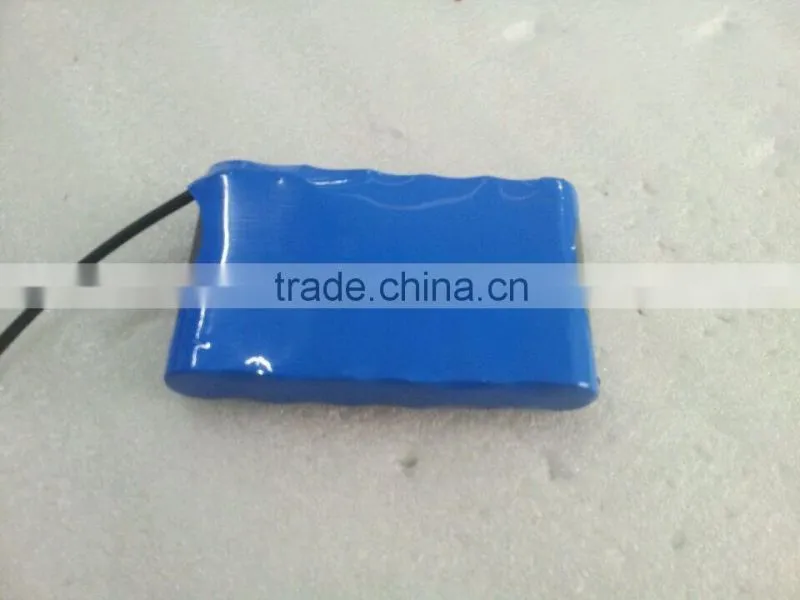

Long life cycle 12v 5ah lithium battery pack for led light
1. Basic Characteristics | ||||||||||
Weight |
≤ 180g |
|||||||||
Dimension(T*W*H) |
19x110x67 |
|||||||||
Working temperature |
Charge Temperature |
0~45°C |
||||||||
Discharge Temperature |
-20~65°C |
|||||||||
Retention of charge (store in one month) |
≥95% |
|||||||||
2. Technical Data | ||||||||||
Rated Voltage |
12V |
|||||||||
Rated Capacity |
≥ 5ah |
|||||||||
Battery Resistance |
≤100 mΩ |
|||||||||
Charge |
Way of Charge |
CC/CV |
||||||||
Standard Charge Current |
2A |
|||||||||
Max Charge Current |
5A |
|||||||||
Max Charge Voltage |
12.6V |
|||||||||
|
Cell Over Charge Protection Voltage |
12.6V |
|||||||||
Discharge |
Standard Discharge Current |
5A |
||||||||
Max Discharge Current |
can be customized |
|||||||||
Discharge Cut-off Voltage |
8.1V |
|||||||||
|
Cell Over discharge Protection Voltage |
8.1v |
|||||||||
Cycle Life |
500 times,capacity>60% |
|||||||||
3. Safety Test | ||||||||||
Short Circuit Safety Test |
No fire, No explosion |
|||||||||
Overcharge Safety Test | ||||||||||
Crush Safety Test | ||||||||||
Needling Safety Test | ||||||||||
Extrusion Safety Test | ||||||||||
130°C High Temperature Safety Test | ||||||||||
Other information
Payment Terms |
T/T,Paypal,Western Union |
Minimum Order |
200pcs |
Lead Time Delivery Time |
15-20 business days |
Sample Available |
Yes |
Delivery Details |
carton packaging |
FOB Port |
Shenzhen |
Loading Info |
air transpotation |
Packing Info |
Standard carton packaging |
Certification
Product show
Production and test process

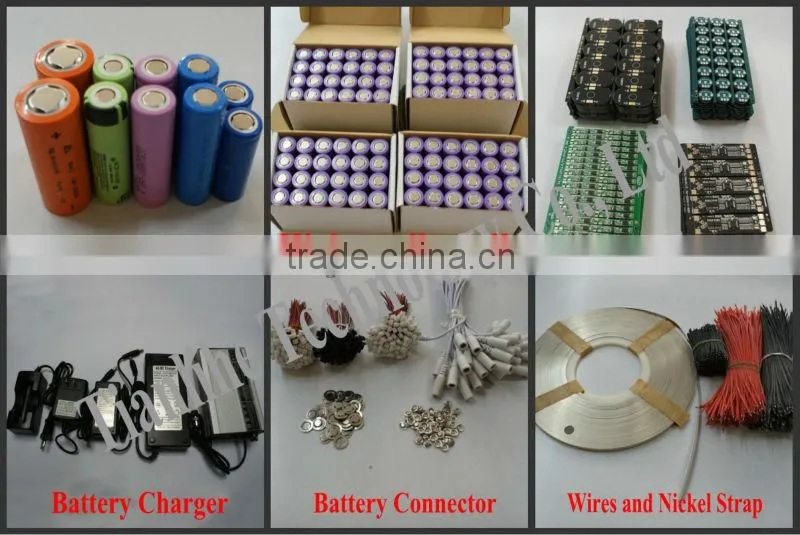

High quality material
We can offer the import brand cell such as sony ,samsung ,panasonic etc, also our local brand
Grade A cell are available ,The capacity of the cell client can choose are 1800mah, 2000mah,
2200mah, 2400mah 2600mah,2800mah,2900mah, 3000mah, 3100mah, 3400mah etc,
You can customize the battery capacity from 60mA to 80aA, and the pcm is designed
according to the working current and max currnt of your product, the wires,connectors,
and chargers are all available
Our successful project
Now ,with lithium ion battery pack becoming the mainstream instead of the NI-MH,NI-CD,and Lead acid, At the advantage of rich experiences ,skilled technlogy and best quality control,we have offers a lot of successful cases of battery application for many clients all over the world
We have made the battery for ebike,e-scooter, e-weelchair ,e-golf cart, medical equipment,power tool, flashlight, pos machine, speaker, heater clothes etc .Any battery issues from youis welcome

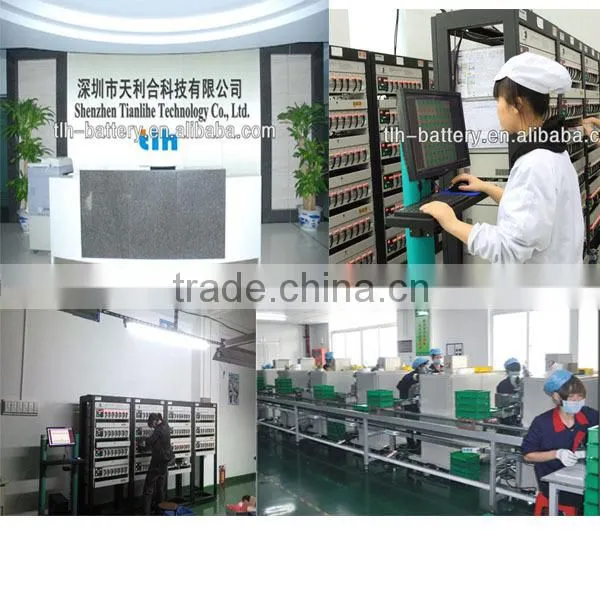

Factory show
Tianlihe is the professional manufactur for rechargeable lithium battery ,which is set up in 2001 year, with 1000 square metres workshop and strong R@D ability, Best material use ,good quality control and excellent after-service are the principle we always insisted, which have make us build a long-term cooperation with all of our customers
