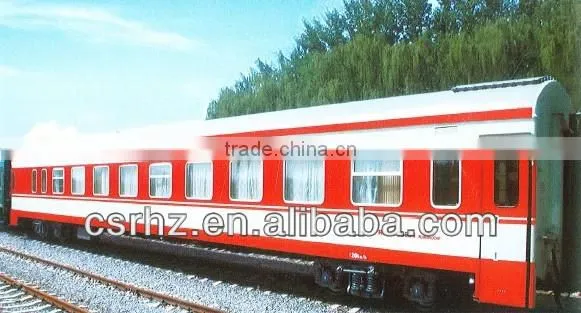

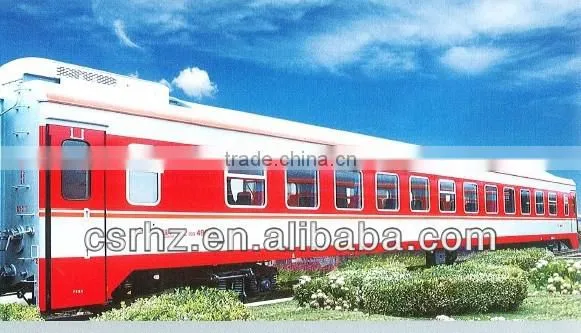

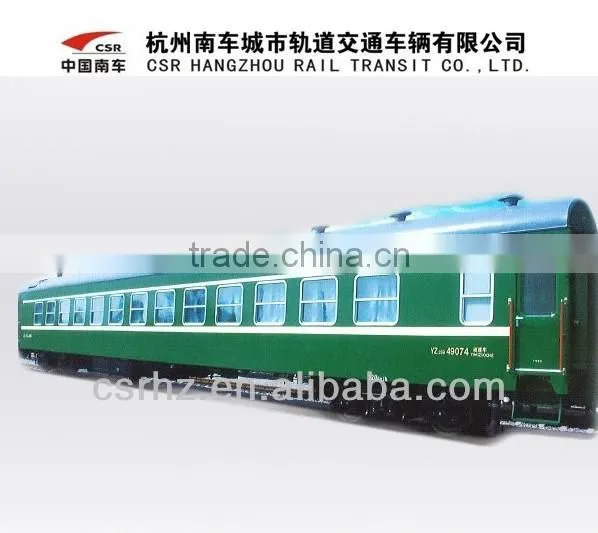

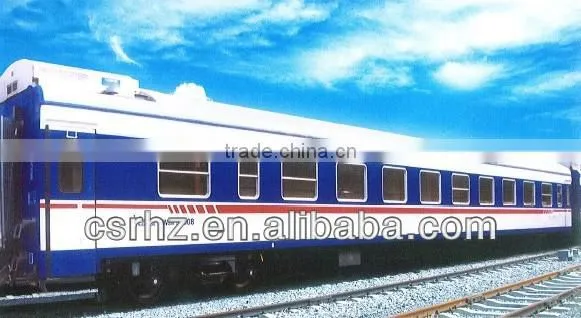

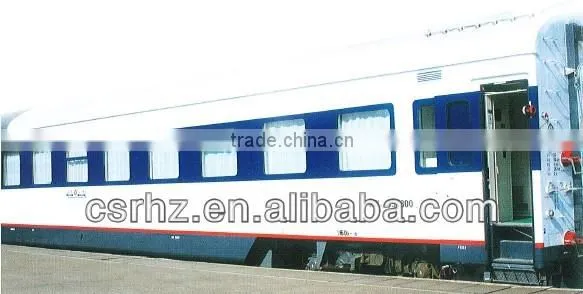

Help Center25B Hard Seating Passenger Coach/ Trail Car/ Carriage/ Railway Train
Related Products
-
DMU "New Dawn" Diesel Multiple UnitNegotiableMOQ: 1 -
DMU Exported to TUNISIA Diesel Multiple UnitNegotiableMOQ: 1
-
DMU Exported to Malaysia Diesel Multiple UnitNegotiableMOQ: 1
-
DMU Exported to GEORGIA Diesel Multiple UnitNegotiableMOQ: 1
-
DMU "Harmony" Tourism Internal Combustion Diesel Multiple UnitNegotiableMOQ: 1
Specifications
Application: The coach is used for main trunk line passenger transportation.≤25B coach is main type of 25 series coach, which is prime type of the third generation railway vehicle of China. This coach is a type that without air condition. It's electric power is supplied from the diesel generator which is equiped under the carbody. The carbody is structured by pre-process weather-proof steel plate and cylinder overall bearing structure without ribbing and centre sill. It has half open type aluminum alloy window and folding door. We can also design air condition unit for the coach in the case of customer need.
Main techical parameters:
| Ambient temperature | -40°c~40°c |
| Rated passenger capacity | 128P |
| Design speed | 140km/h |
| Min. curve radius | Coupler: 145m |
| Single car: 100m | |
| Emergency brake distance (straightness track) | ≤1100m (Initial speed 140km/h) |
| ≤800m (Initial speed 120km/h) | |
| Stability index | W≤2.5 |
| Mean heat transfer coeffcient at stationary state | 1.16w/m²K |
| Height from coupler center to rail roof | 880mm |
| Bogie | 209P |
| Brake equipment | 104 brake |
| Basic brake | J type brake shoes stack adjuster, disc brake |
| Water tank | 1200L |
| Electric device | Generator at axle head |
| 1. To supply DC48V power for the coach | |
| 2. To charge the battery |
These products may interest you:
The company:
1.Brand: We are the subsidiary company of CSR, which is a big state-owned group called "China South Railway".
2.Experience & Profession: Our parent company is an enterprise specialized in research and manufacture of rail transport equipment in China, and is the first-class large-scale company in China’s railway equipment manufacturing industry. It has a history of more than 100 years in the railway vehicle field and its products sold to 18 railway bureaus and local railways.
3.Why choose us?
• Customized products that meet the demand of running in different environments. In order to ensure the products performing well in local conditions, We could design and manufacture products according to basic needs of clients.
• Various products, different railway transit products, including EMU&DMU, passenger coach, metro, light rail, tramway, locomotives, freight wagon and others relevant products.
4.High quality after-sale service: We will despatch professional technical stuff to the site for after-sale services, at the same time, we are also a professional agency of railway equipment. What we can provide is not just only railway vehicles but also an integrated system that suitable for any kinds of railway cars' maintenance and refurbishment.
