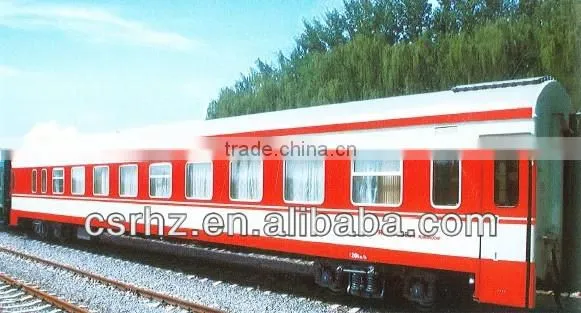

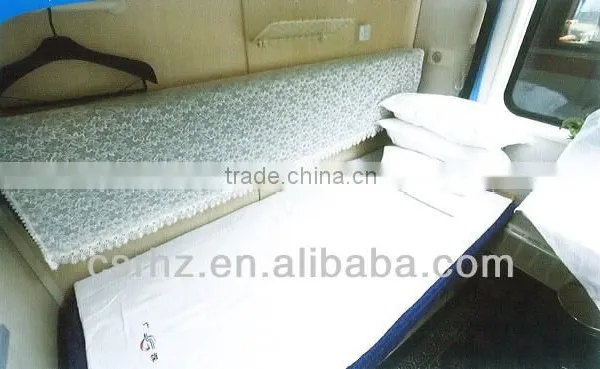

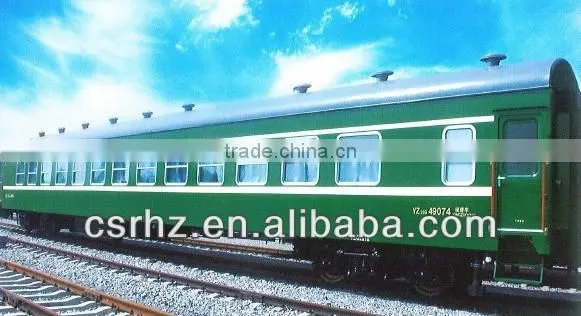

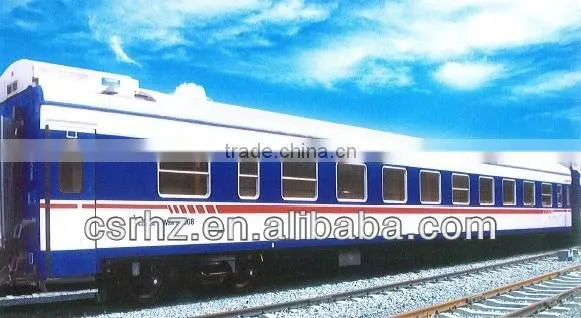

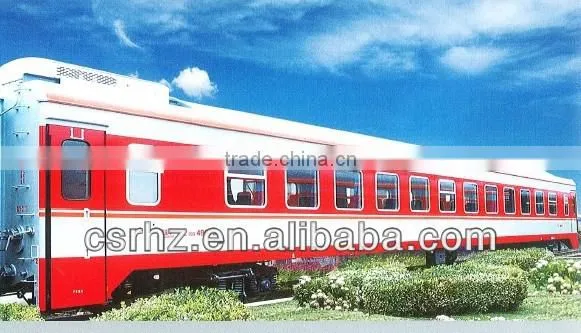

25T sleeping carriage with cushioned berths/ passenger coach/ trail car/ carriage/ railway train

Specifications

Application: The coach is used for main trunk line passenger transporting.

Operation condition:

Ambient temperature: -40°C~+40°C

Max. relative humidity: ≤95%

Altitude: <1500m

Platform height: 300mm, 500mm, 1200mm.

Max. gradient: ≤30‰



Main technical parameters:

design speed	180km/h
Continuous speed	160km/h
Height from coupler center line to top rail (AW0)	880mm
Fixed distance between two cars	18000mm
Dead weight	48t
Fixed passenger capacity	36P
Emergency brake distance(straightness rail, initial speed: 160km/h)	≤1400m
Min. curve radius	Single: 100m
	Coupling: 145m
Stability index	W≤2.5
Noise (140km/h)	≤65dB(A)
Carbody heat transfer coefficient (stationary state)	≤1.1W/m2.K
Illuminance	In accord with GB/T12815
Bogie	SW-220K
Passenger capacity	36P
Clearance	In accord with GBI46.1
