Home > Products > Electric Golf Trolley Lithium Battery > 48v 20ah Electric Bike Polymer Li-ion Battery for 1000W Motor

48v 20ah Electric Bike Polymer Li-ion Battery for 1000W Motor

FOB Price

US$ 100 - 180 / Piece

5 Pieces(Min. Order)

Port shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TLH
Model Number	TLH-14032820	Type	Li-Ion
Nominal Voltage	Other, 48v	Size	Other, customize
Nominal Capacity	20ah

Product Description

Specifications

48v 20ah polymer li-ion battery
1,30A current for 1000W
2,Include BMS and charger
3,High quality battery cell
4,Fast delive

48v 20ah electric bike polymer li-ion battery
1. Basic Characteristics
Model			TLH-14032820
Weight			≤ 3.5kg
Dimension(TWH)			105110145mm
Working temperature		Charge Temperature							0~45°C
		Discharge Temperature							-20~65°C
Retention of charge (store in one month)										≥95%
2. Technical Data
Rated Voltage				48V
Rated Capacity				≥ 20ah
Chemical				Li-ion polymer
Battery Resistance				≤100 mΩ
Charge	Way of Charge					CC/CV
	Standard Charge Current						2A
	Max Charge Current						5A
	Max Charge Voltage						54.6V
	Over Charge Protection Voltage						55.25V
Discharge	Standard Discharge Current						15A
	Max Discharge Current						30A
	Discharge Cut-off Voltage						35V
	Over discharge Protection Voltage						39v
Cycle Life								500 times,capacity>80%
3. Safety Test
Short Circuit Safety Test					No fire, No explosion
Overcharge Safety Test
Crush Safety Test
Needling Safety Test
Extrusion Safety Test
130°C High Temperature Safety Test

Other information

Payment Terms	T/T,Paypal,Western Union,L/C
Minimum Order	1pcs
Lead Time Delivery Time	7 business days
Sample Available	Yes
Delivery Details	carton packaging
FOB Port	Shenzhen
Loading Info	air transpotation by Fedex,TNT,UPS,DHL,EMS
Packing Info	Standard carton packaging

Certification

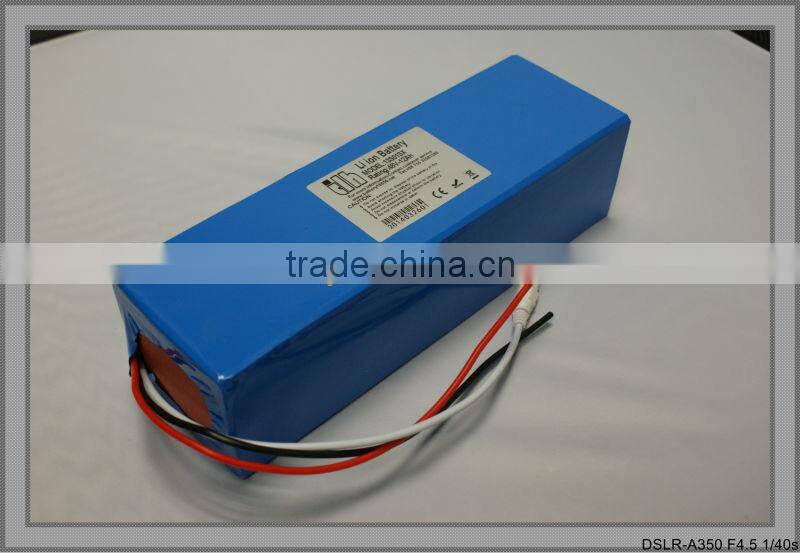

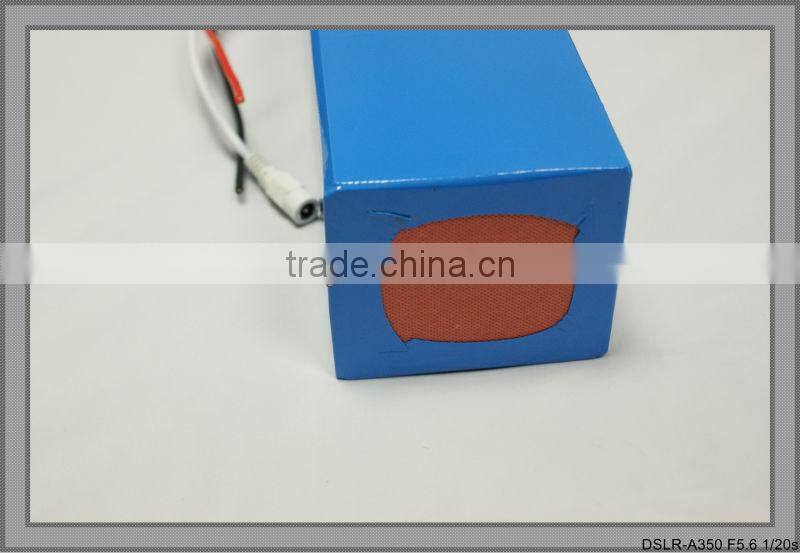

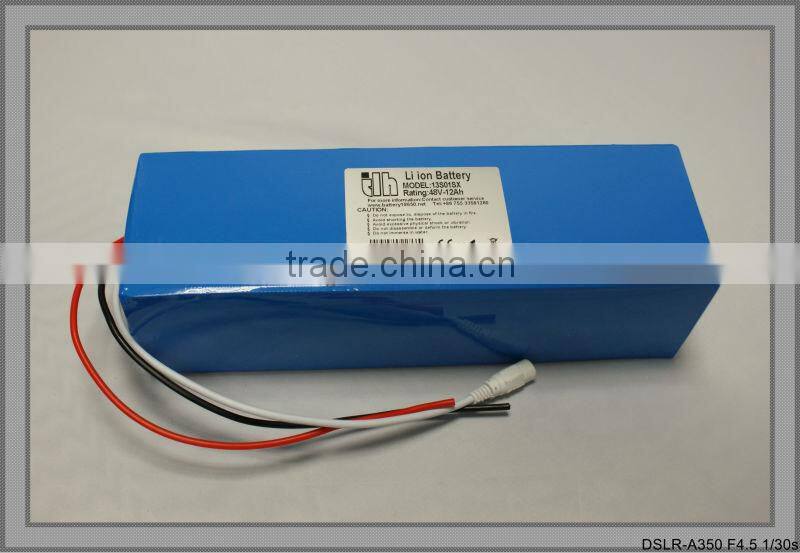

Product show

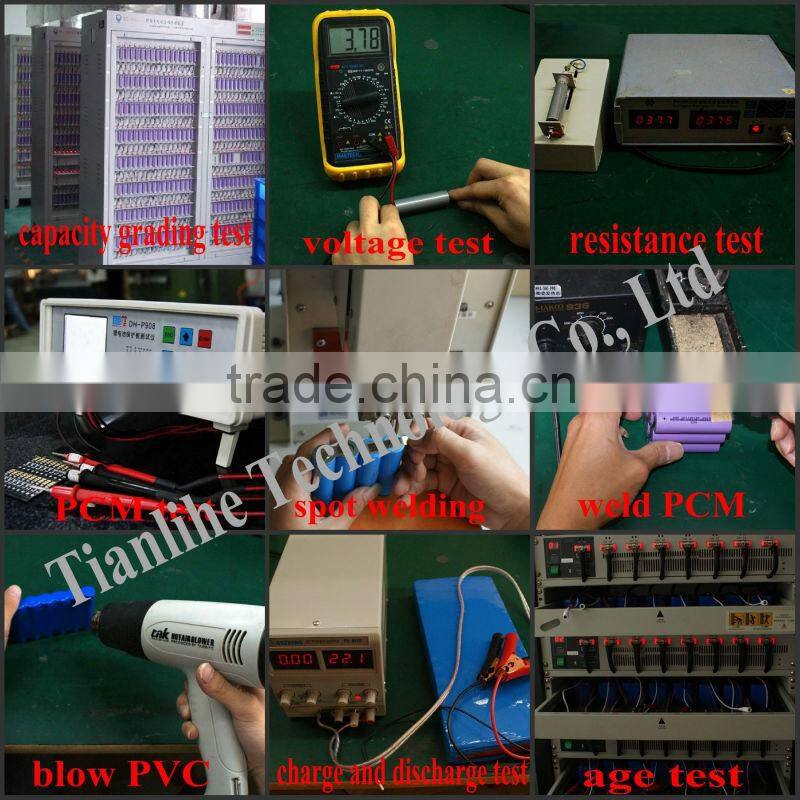

Production and test process

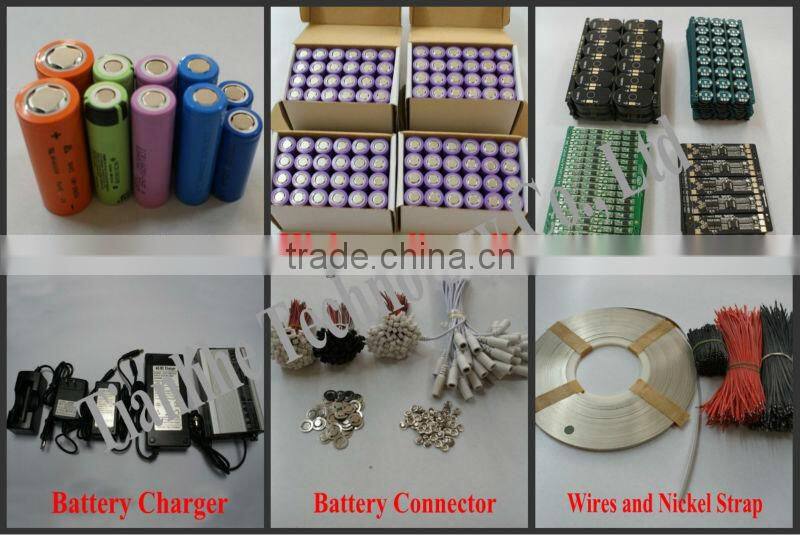

High quality material

We can offer the import brand cell such as sony ,samsung ,panasonic etc, also our local brand

Grade A cell are available ,The capacity of the cell client can choose are 1800mah, 2000mah,

2200mah, 2400mah 2600mah,2800mah,2900mah, 3000mah, 3100mah, 3400mah etc,

You can customize the battery capacity from 60mah to 80ah, nd the pcm is designed

according to the working current and max current of your product, the wires,connectors,

and chargers are all available

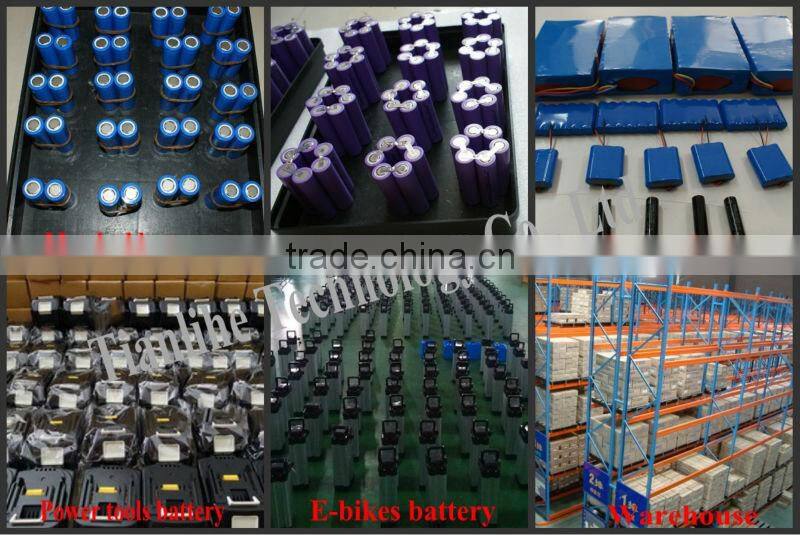

Our successful project

Now ,with lithium ion battery pack becoming the mainstream instead of the NI-MH,NI-CD,and Lead acid, At the advantage of rich experiences ,skilled technlogy and best quality control.

We have made the battery for ebike,e-scooter, e-weelchair ,e-golf cart, medical equipment,power tool, flashlight, pos machine, speaker, heater clothes etc .Any battery issues from you is welcome

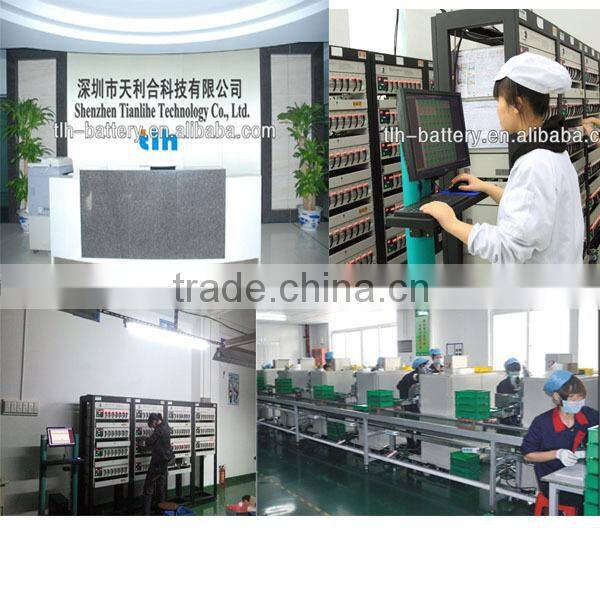

Factory show

Tianlihe is the professional manufactur for rechargeable lithium battery ,which is set up in 2001 year, with 1000 square metres workshop and strong R@D ability, Best material use ,good quality control and excellent after-service are the principle we always insisted, which have make us build a long-term cooperation with all of our customers
