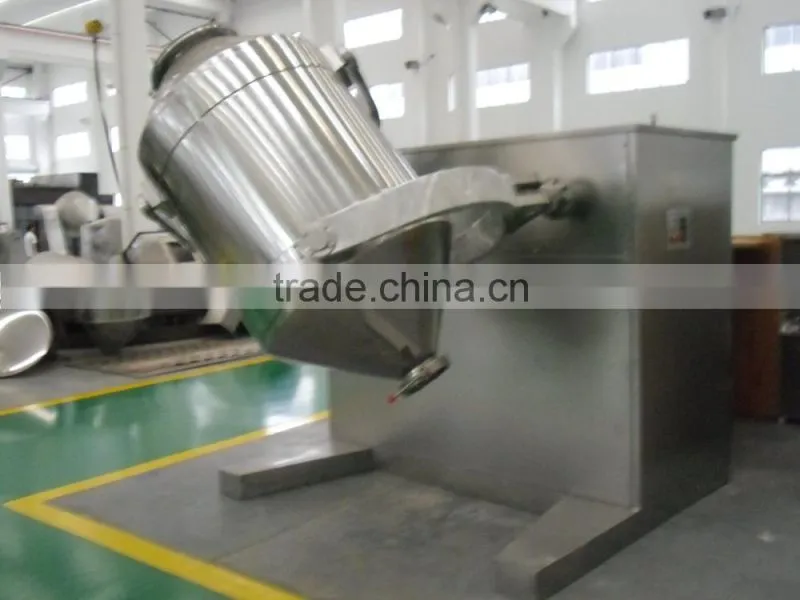

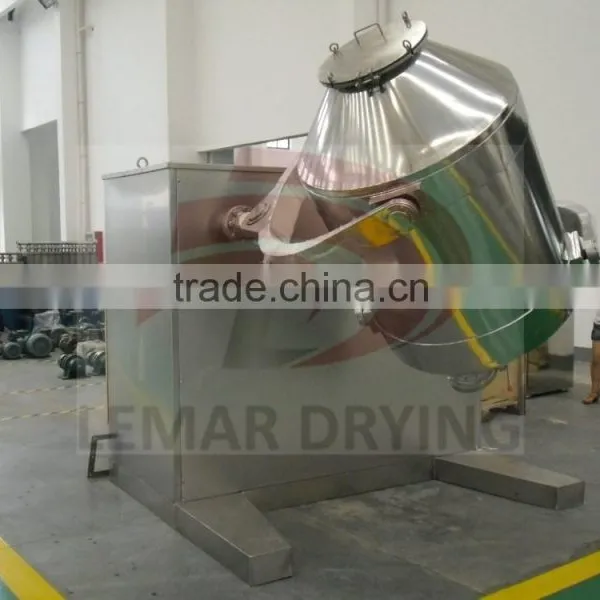

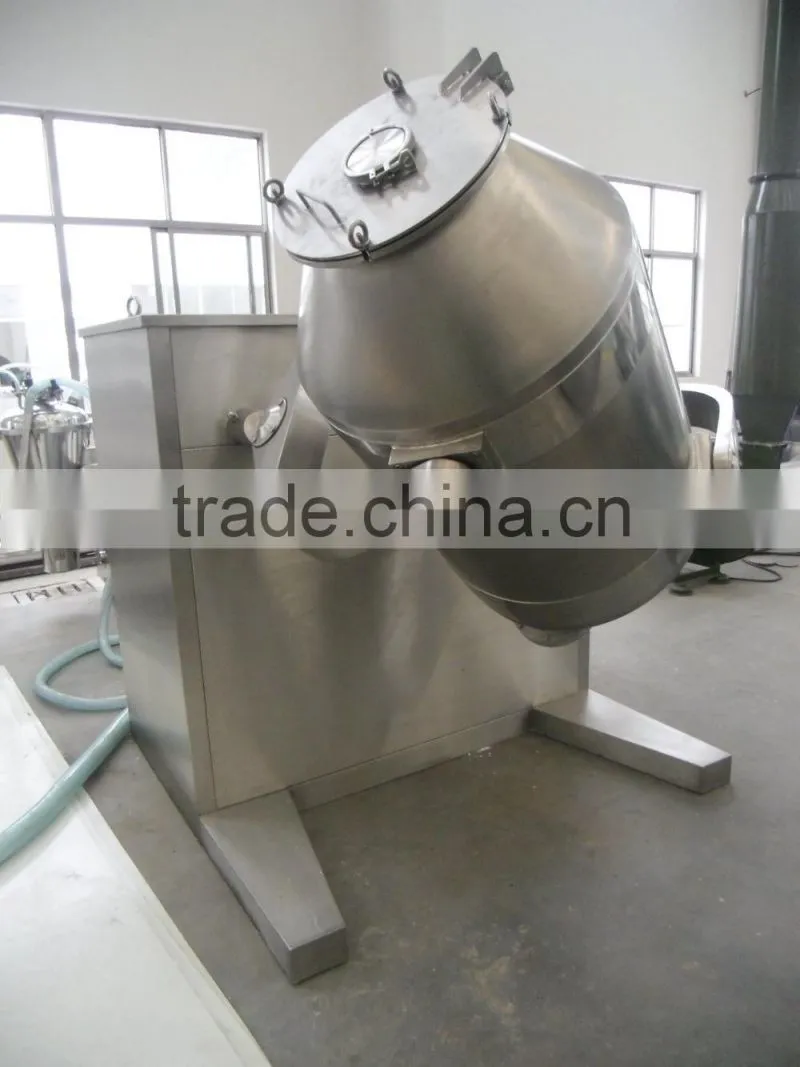

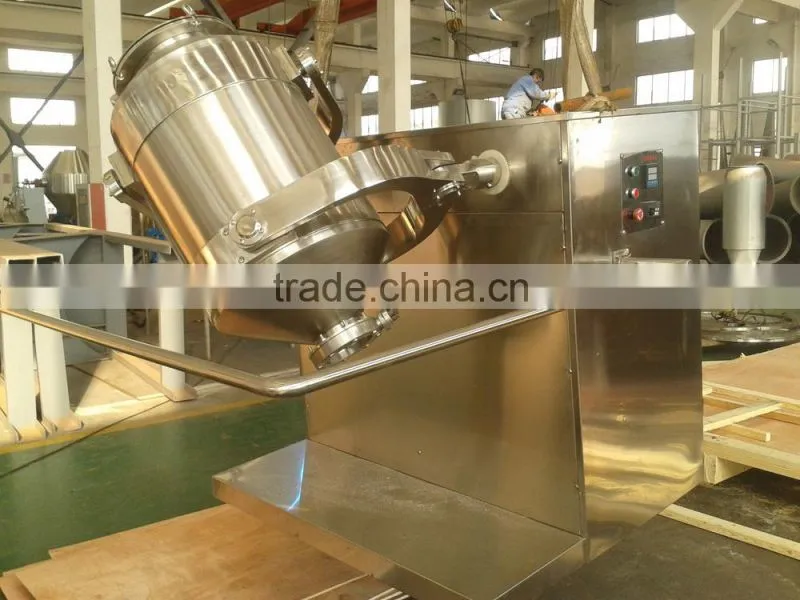

Description of Laboratory mixer:
The mixing barrel moves in multi-directions. Materials have no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Mixing rate can reach over 99%. So far, this machine is one ideal mixer among all kinds of mixers. The loading capacity of barrel is good. it can reach 80%(40&%for normal ones).
Each part of drum is transited by circle arc and polished precisely, meeting the GMP requirements.This machine is used high homogeneity mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, national defense industry and scientific research etc.
Features of Laboratory mixer:
The loading barrel performs a composite motion including horizontal moving, rotation and turning when driven by the main drive shaft. In the space, by which, materials also performs 3-dimensional motion inside the barrel so that all kinds of materials inside the barrel flow, diffus e, penetrate each other and finally form uniform states. It avoids the specific gravity segregation, lamination and accumulation during mixing because of the centrifugal force.
parameters of Laboratory mixer:
| model | SYH-1 | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 |
| barrel volume(L) | 1 | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
| Max. loading volume(L) | 0.9 | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 600 | 750 | 1200 |
| Max. loading weight (kg) | 0.5-0.9 | 2.4-4.5 | 7.4-13.5 | 25-45 | 50-90 | 100-180 | 200-360 | 300-540 | 400 | 500 | 750 |
| speed of driving shaft | 30 | 25 | 25 | 25 | 20 | 20 | 15 | 15 | 10 | 10 | 10 |
| powe of motor (kw) | 0.12 | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.2 | 11 | 11 |
| size(mm) | 500× 600 ×600 |
600× 1000 ×1000 |
800× 1200 ×1000 |
1150×1400 ×1300 |
1250×1800 ×1550 |
1450×2000 ×1550 |
1650×2200 ×1550 |
1850×2500 ×1750 |
1900×2400 ×2100 |
1950×2500 ×2400 |
2600×2500 ×2350 |
| weight(kg) | 50 | 50 | 200 | 300 | 800 | 800 | 1200 | 1200 | 1650 | 1800 | 2500 |
