Alibaba China machine manufacturers for roof tile forming machine
Machine Description |
Quantity |
Delivery time |
Container Type |
Price(FOB TIANJIN) |
Roof panel roll forming machine |
1 SET |
30 working days after receiving deposit |
One 20GP |
USD 6500---12500 |
Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and
different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'
requests.
Roof panel roll forming machine Production Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products
receiving

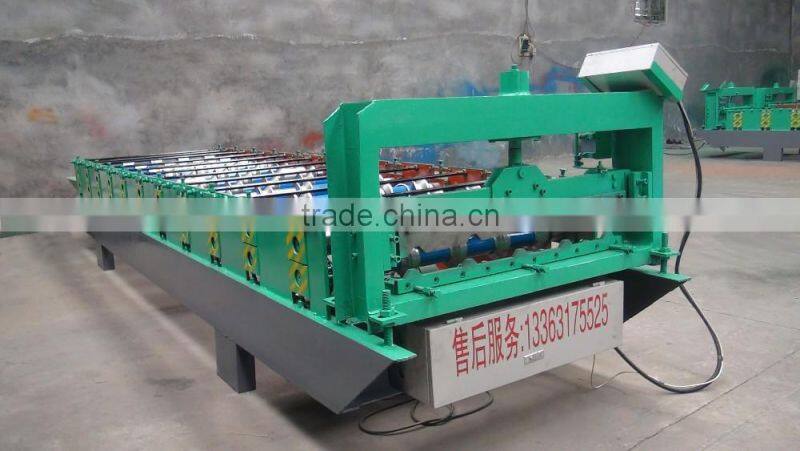

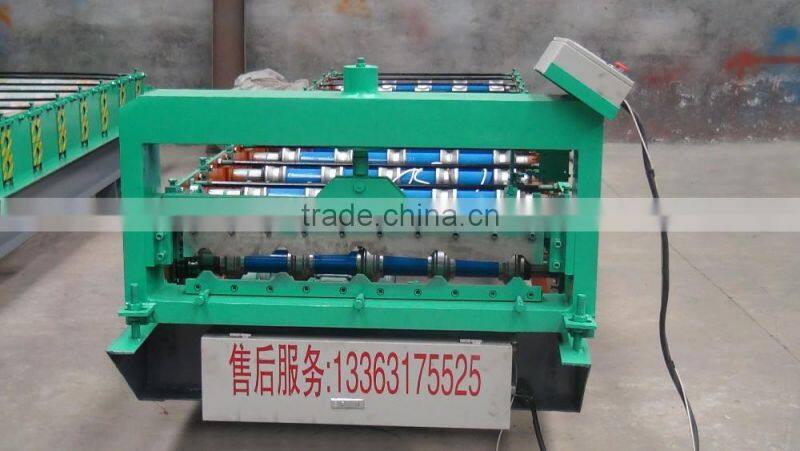

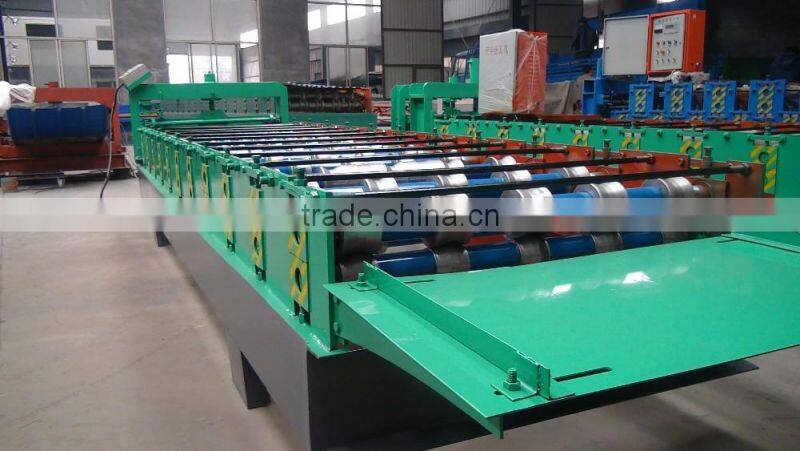

Product show
Roofing Sheet Roll Forming Machine has following advantages
- Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;
- Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;
- The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;
- Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);
- Forming machine all parts baking finishing and then assembly
Technical data of Good quality metal roofing roll forming machine
Model |
MS35-125-750 |
MS26-125-900 |
MS25-210-840 |
MS25-210-850 |
Dimension(L*W*H) |
520cm*133cm*90cm |
750cm*130cm*100cm |
560cm×130cm×120cm |
550cm×130cm×140cm |
Voltage |
380V,60HZ |
380V,60HZ |
380V,60HZ |
380V,60HZ |
Diameter of the roller |
65mm 45# |
68mm 45# |
68mm 45# |
68mm 45# |
Rollers |
10 |
11 |
12 |
13 |
Rotating mode |
Chain wheel and chain |
Chain wheel and chain |
Chain wheel and chain |
Chain wheel and chain |
Control systerm |
PLC |
PLC |
PLC |
PLC |
Main Motor power |
3KW |
3KW |
3KW |
4KW |
Material of the cutting blade |
Gr12 |
Gr12 |
Gr12 |
Gr12 |
Forming speed |
8-10m/min |
8-10m/min |
8-10m/min |
12-15m/min |
Thickness of plate |
0.2-0.7mm |
0.2-0.7mm |
0.2-0.7mm |
0.2-0.7mm |
Width of plate |
1000m |
1000m |
1000m |
1000m |
Distance |
130mm Depth:8mm |
130mm Depth:8mm |
130mm Depth: 8mm |
1300m Depth:8mm |
Machine weight |
2600KG |
2800KG |
3500KG |
|
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $80/days |
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed with water proof paper coverage
|
|
|
|
|
|
|
|
Business term
Payment terms: 30%TT in advance, 70%-the balance should be paid before loading.
Delivery time:30 days after receiving the 30% advance payment.
Guarantee period: 12 months service for free, paid service for the whole machine life
Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration. It is of high tensile steel and comes in spectrum of colors, to enhance the appearance, life and value of the building: specially designed sewing machines eliminate use of fasteners and thus ensure 100% leakproof roofing.
Q:How is this machine's service life?
- In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
- If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
- Our machine's warranty period is 1 year,if the broken parts can't repair, we can free send the new parts replace the broken parts to you;
Q:Can you supply the raw materials?
- Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Contacting
