The brewhouse system had various combinations according to customers' demands:

mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank

Optional: 1-mash/brew kettle, lauter tun/whirlpool

                2-mash tun, lauter tun, brew kettle/whirlpool

                3-mash tun, lauter tun, brew kettle, whirlpool

Main features of the brewhouse and fermentation system

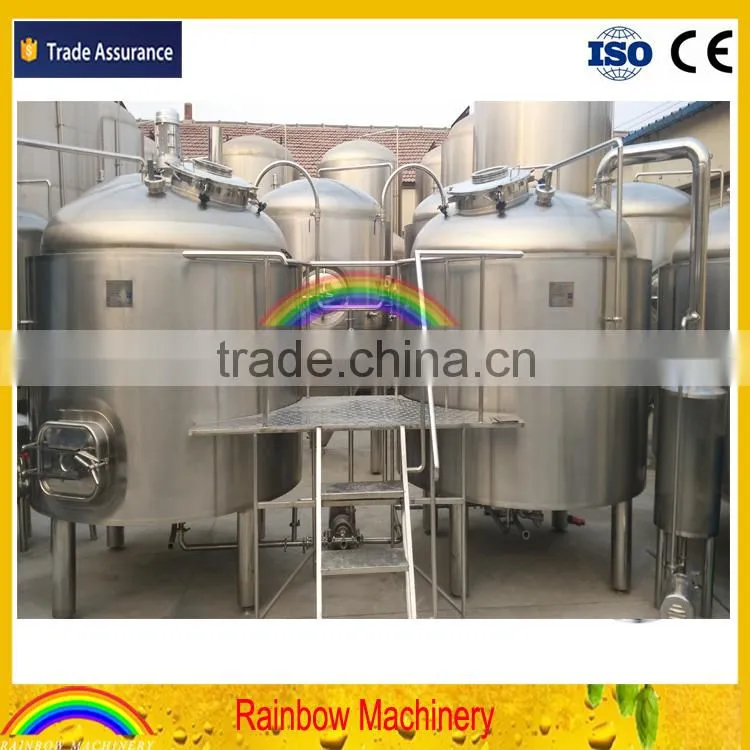

Brewhouse System

Mash/Lauter tun installed mash agitator,

Installed rakers and false buttom for grains separation

-Usage:Mashing, mixing-stainless steel mixer driven by frequency convertor,

lautering-eparation of mash grains from wort during wort producing process.

Brew/whirlpool tun, wort boiling and make wort whirlpooling

-Wort Whirlpool-sanitary centrifugal mash pump activate the whirlpooling.

-Heating: electricity gas fired or stream

Hot water tank-water heating and hot water storing/preparation

connected to the controller for automatic temperature controlling

1)-Inner wall stainless steel 304, 3mm; - surface wall stainless steel 304 2 mm or copper, 1.5mm

      Insulation:Polyurethane-thickness:100mm

2) Dome top, top manway with glass, Side manway, cone bottom 160 degree

3)-Mash tun, Lauter tun, Brewing Kettle, Whirlpool tun in various combinations

4)-Agitator motor with VFD, DANFOSS

5) -insulation: polyurethane/rockwool 100mm;
    -with inside CIP washing ball
    -raking agitator
    -removable false bottom
    -sparging arm, sight glass
    -Tangential inlet for whirlpool
    -Thermowell for temperature sensor and thermometer....


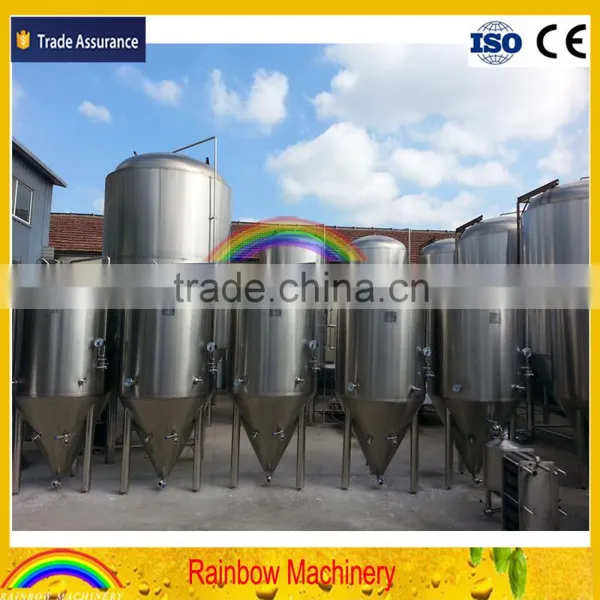

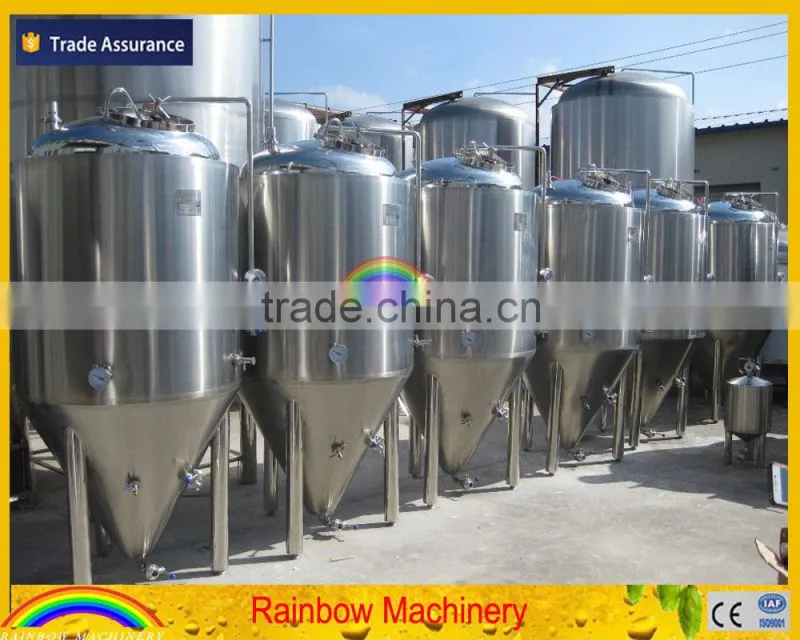

Fermentation system:
1) -Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm

2) Dome top, conical bottom,
Top manway, or side manway
3) Insulation: polyurethane 100mm,  dimple plate jacket, thickness 1.5mm
4) Glycol cooling jackets on both cylinder and cone

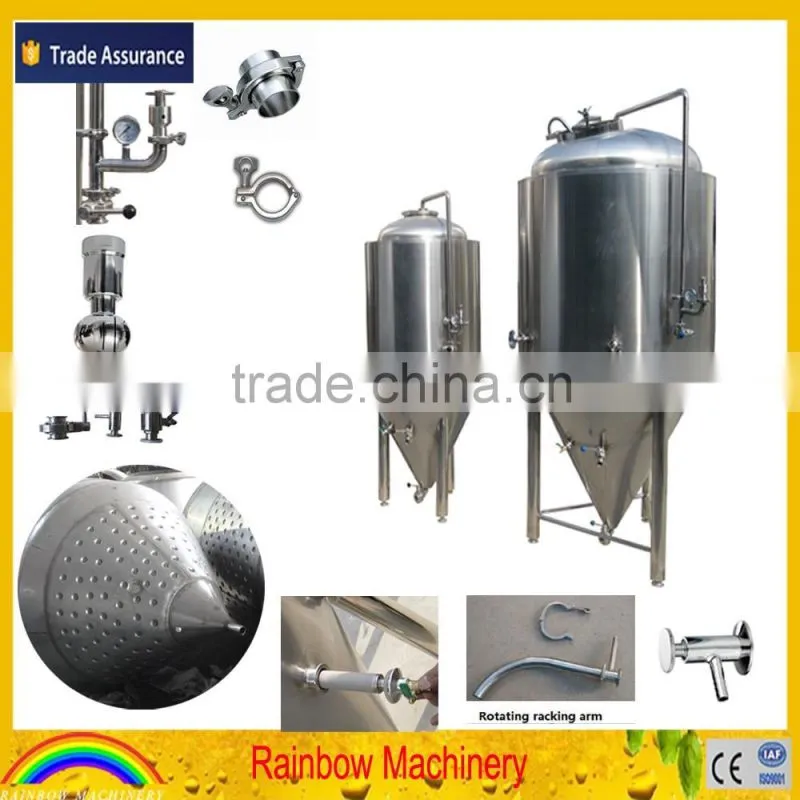

5) -Inside 360 degree rotating CIP washing ball;
    -CIP arm
    -Pressure gauge
    -safety&vacuum valve on top
    -sample valve
    -rotating racking arm

    -Carbonation port and stone

    -thermometer, PT100
    -dry hops port
6) Testing pressure: 3 bar, working pressure: 1.5-2 bar

Cooling System

Glycol water tank

-Material:

Inside wall, SUS 304, 3mm Outside wall, SUS 304, 1.5mm Insulation, PU, 100mm

-Cone bottom, 60 degree

-Thermowell, 8mm

-Temperature sensor, Model: PT100

-Water supply piping: ø32mm

-Drainage piping and butterfly valve, ø32mm

 Including all pipes, fitting, insulation materials

Cooling compressor

-Scroll copeland type compressor

-Capacity: 3-7hp according to the capacities

-Refrigerant: R404A

Controlling System

Digital display control system/PLC Controlling system

-Brewhouse temp. and time setting/controlling

-Fermenting temp. setting and controlling

-Cooling temp. setting and controlling

 -All pump, agitators control

 -All themocouple, solenoid valves control

CIP System

-CIP Washing Tank

-Sterilization Tank

-Pump and Valve

Features&Applications:

1.Adopting siemens PLC control system(or digital display control system) can get the required standards of free switch from automatic to manual.

2.The brewery equipment can also brew draft beer, pale beer, brown beer, stout beer etc,

 to meet different taste of customers.

3.We also have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, etc per patch for your reference.

OPTION:  We can also supply these machines together with our brewery equipments;

beer filling line,

bottle washing machine,

filling machine,

capping machine,

pasteurization tank,

labelling machine.

And beer kegs(10L,20L,30L,50L...), beer tower.

Kegs washer and filler.

Steam boiler.

It can be customized, such as the capacity, material, voltage, heating source, etc.

4. Provide beer production technology and brewing formula, installation and personal training.

1.LCL/FCL(20GP/40GP/40HQ)

2.Beer brewing equipment main tanks packed with soft material or packed in fumigation wooden case and fixed onto iron frame

3.standard exporting packing, suitable for long time marine shipping

4.According to customer's requirements

Germany, Czech Republic, USA, Canada, Russia, Sweden,

Paraguay, Singapore, Australia, Finland. etc

Functions

1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customize: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)

                        b. voltage(220v or 380v or other electricity voltage )

                       c. material thickness(our standard is inner wall 3mm sus 304, outer wall 1.5mm sus304,

insulation 100mmPU or rock wool)

                     d. dimension of all the tanks(length, height, width)

                     e. heating source(electric, steam, direct gas fire heating)

3-Water and Pressure Test is made before shipment.

Reference Photos
