easy performance wood twigs chipper with engineers available to service machinery overseas
YLBX21010 disc wood chipper factory

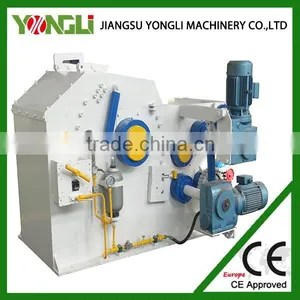

1.Introductions of drum wood chipper
- Drum wood chipper is the special equipment for producing perfect wood chips, logs and small wood can be cut into high quality with even length and uniform chip thickness. It can be widely used in paper plant, particle board plant, fiber-board plant, chip production and export bases.
- Available raw material: wood logs, branches and twigs with moisture more than 15%.
2.Technical Parameters
| Model | YLBX213 | YLBX216 | YLBX2108 | YLBX21010 | YLBX21013 |
| Rotor diameter(mm) | 320 | 650 | 800 | 1000 | 1300 |
| Number of rotor knives(pieces) | 2 | 2 | 16 | 18 | 39 |
| Feed opening(mm) | 120*350 | 180*500 | 250*600 | 350*700 | 500*1000 |
| Rotor speed(rpm) | 760 | 590 | 650 | 550 | 375 |
| Feed speed(m/min) | 37 | 37 | 26 | 21 | 22 |
| Stock processed max diameter(mm) | 90 | 120 | 200 | 300 | 400 |
| Clip length(mm) | 26 | 22/30 | 20 | 20 | 20 |
| Capacity(m3/h) | 6-8 | 25 | 33 | 75 | 180 |
| Main drive motor power(kw) | 30 | 55 | 90 | 160 | 220-315 |
| Feed roller motor power(kw) | 1.1*2 | 3*2 | 4*2 inverter optional | 7.5*2 inverter optional | 11*2 inverter optional |
| Pump motor power(kw) | Manual | 1.5 optional | 1.5 optional | 2.2 | 2.2 |
| Machine net weight(kg) | 1250 | 4070 | 5700 | 7500 | 14500 |
| Overall dimensions(mm) | 1555*1184*1120 | 4348*1730*1258 | 2900*2990*1500 | 3532*3260*1650 | 5484*5400*1860 |
3.Features
- Low power consumption, which is 20-30% lower than similiar product in market.
- Special material blade, with high strength and anti-abrasion. Free of any professional tool shapener, low maintenance cost, which enjoys thepatent: ZL201420054885.
- IPR: knife roll is wholistic processing and is undertaken dynamic balance test to improve accuracy and stable operation. It can process larger diameter wood with its special structure.
- Feeding system consists of feeding and squeezing parts:
(1)Squeezing part: automatic controlled by hydraulic systems.
(2)Feeding system: can be frequency controlled and can preventwood chipper from overload working when it is overload, the material will be returned back.
- Forging dead plate, with high strength and long service time.
- Bearing adopts Sweden SKF heavy duty bearing, ensure the equiptment's performance and service life under continus full load operation state.
- Siemens motor
4.Attractive advantages
- Non-dust workshop
- Siemens motor, Imported SKF/NSK bearing
- National patent
- Reasonable price

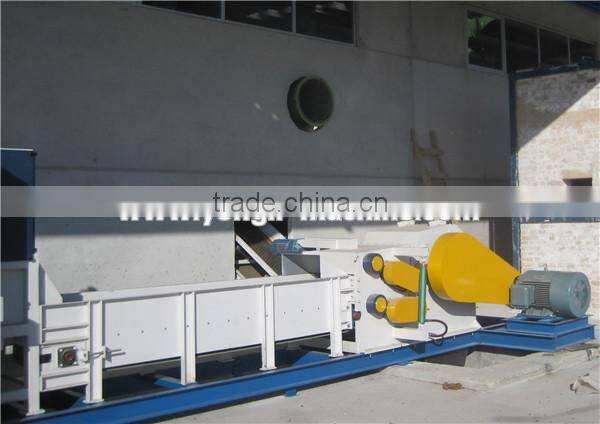

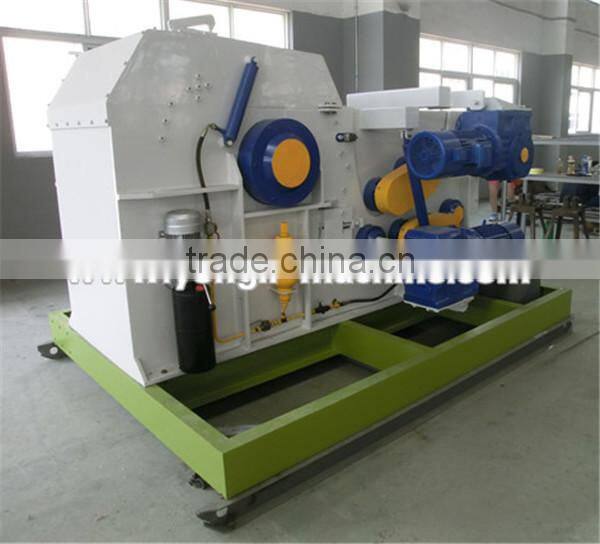

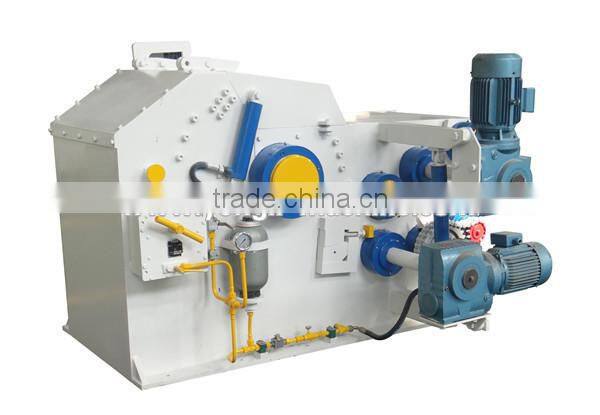

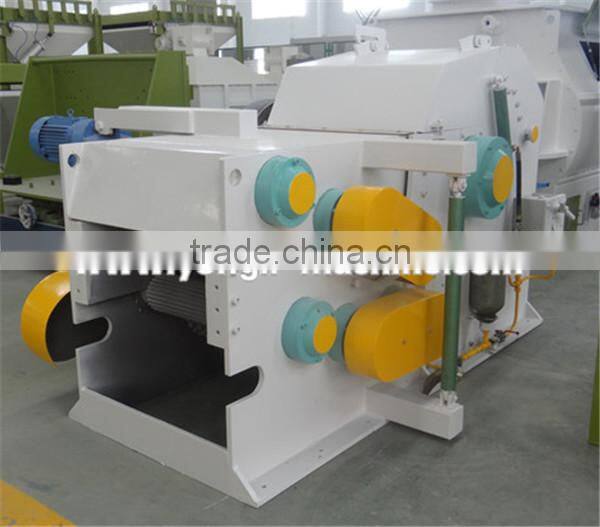

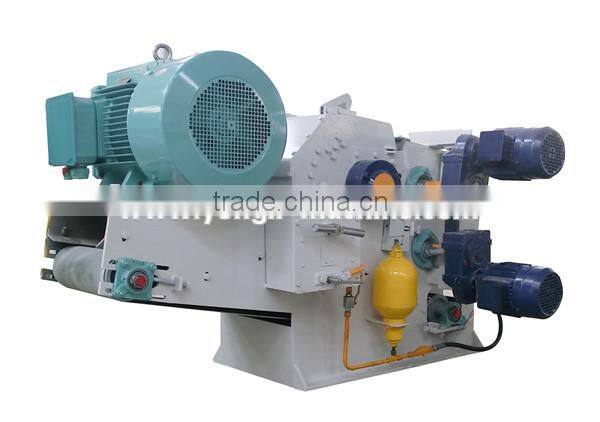

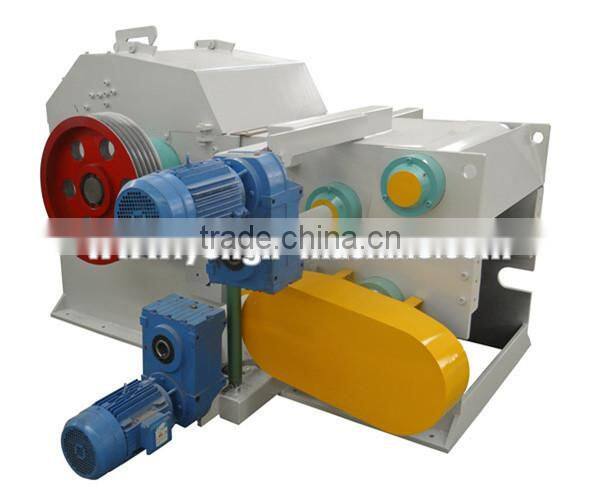

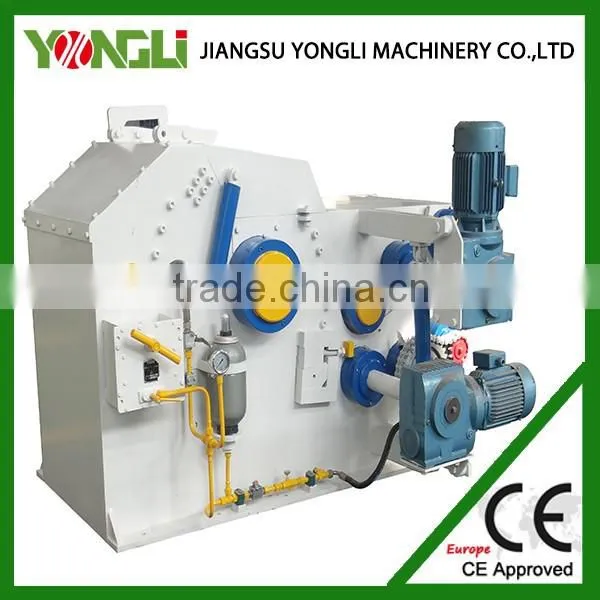

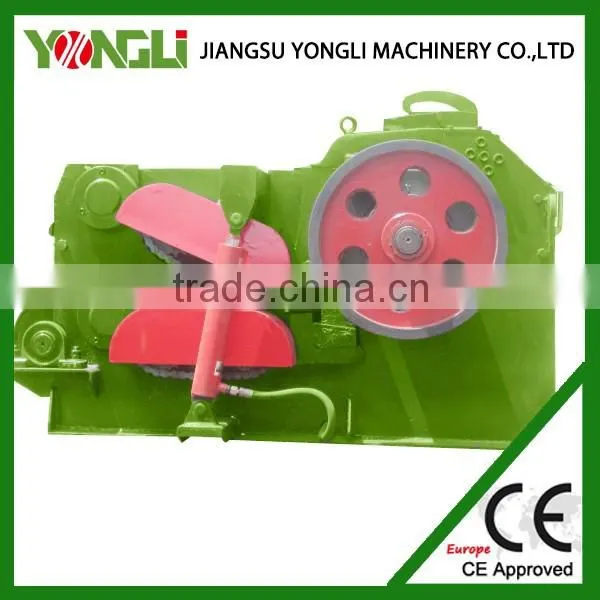

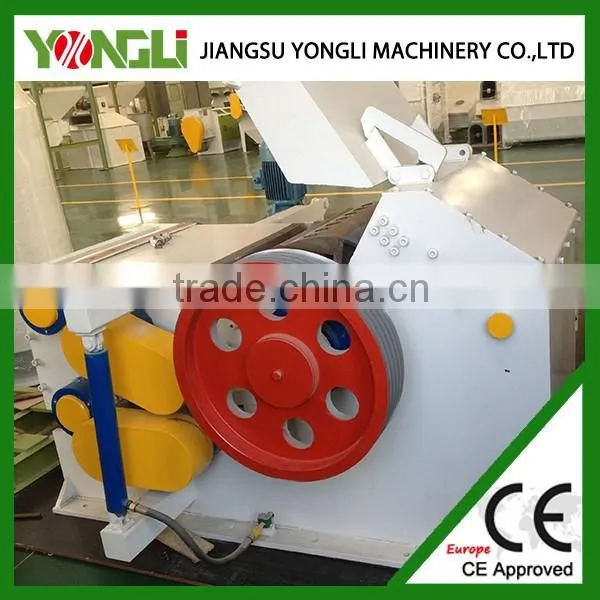

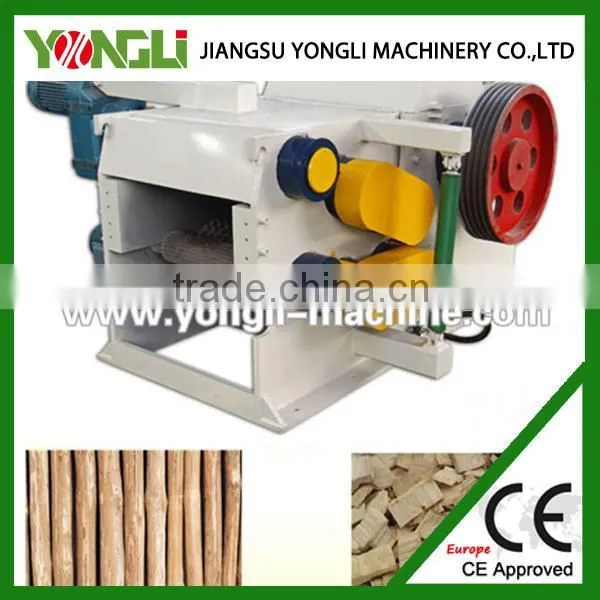

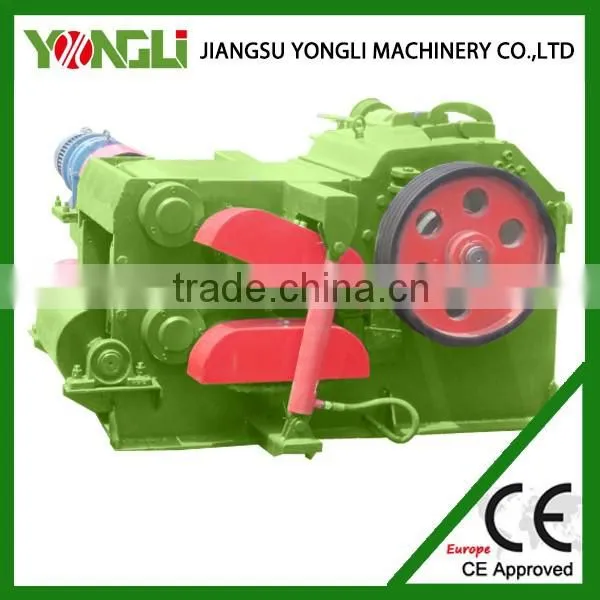

5.Pictures show: drum wood chipper

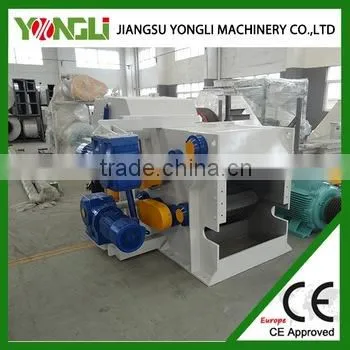

warehouse

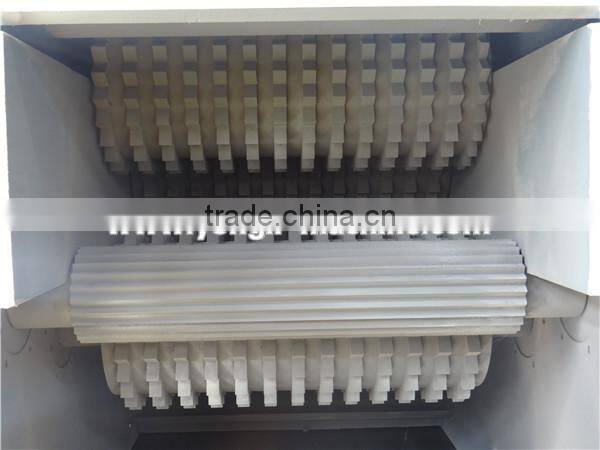

Kinfe roll of drum wood chipper

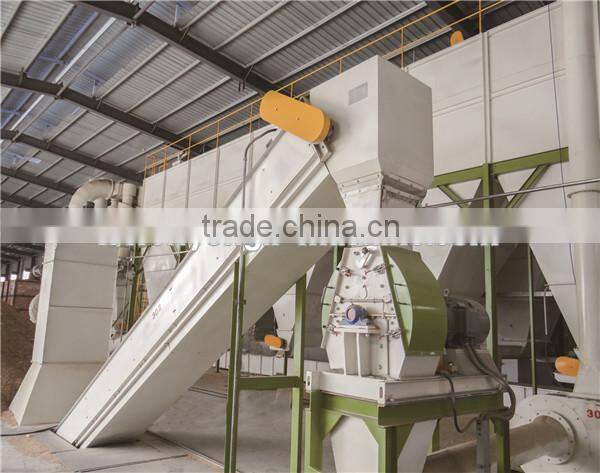

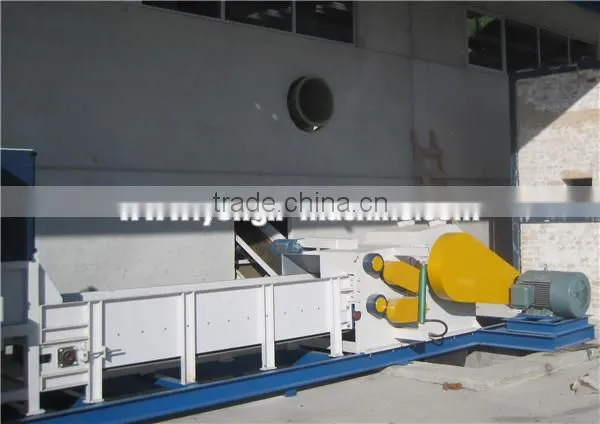

Related production line
A complete biomass pellet production line includes:
-
Receving & Chipping Process
- Grinding Process

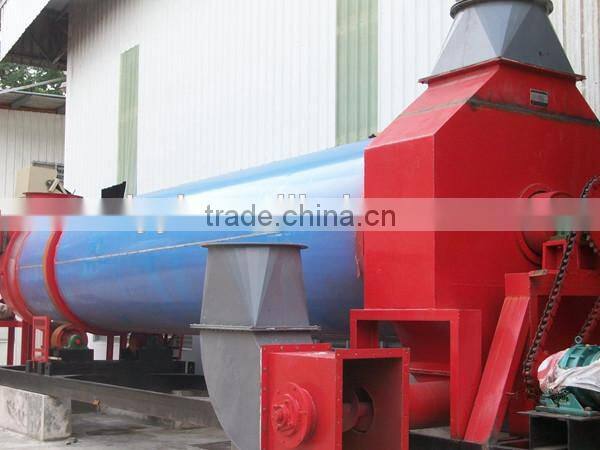

- Drying Process

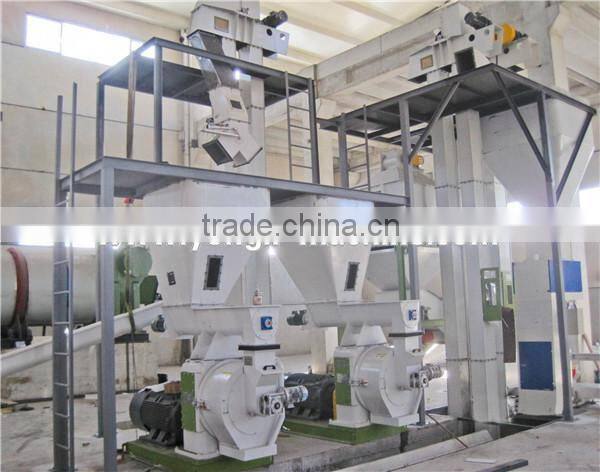

- Pelleting Process

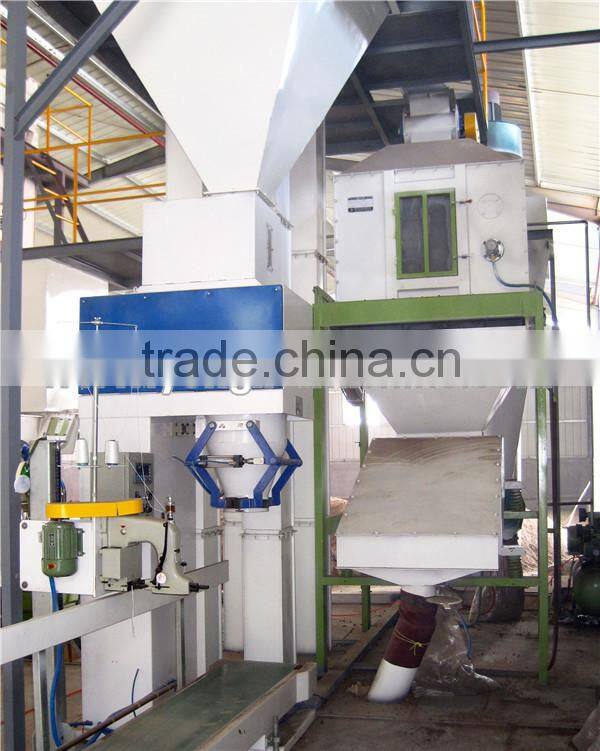

- Cooling and Packing Process
- Customers often provide details to us like: materials(raw wood, batten, straw...), diameter and length, moisture content, packaging style, capacity...
- Our engineer will make a professional design according to our customers’ requires.
- After your confirmations of the drawings, we will provide the quotations to you.
- Note that if you order a complete line, we will send engineers to guide installation and commissioning.
- Packaging: Depending on customers' requirement,such as wooden box or Iron crate etc.

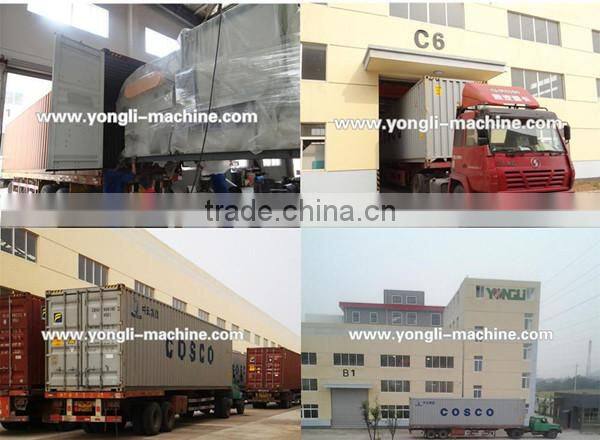

- Shipping: When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
About us
Business type: manufacturer, trading company
Location: Changzhou, Jiangsu, China(mainland)
Year Established: 2003
Company certifications: ISO9001, CE, SGS
Main products:
Chipping line and pelletizing line for biomass and feed, includes pellet mill, hammer mill, drum dryer, wood chipper...
Jiangsu Yongli Machinery Co., Ltd. is a qualified manufacturer which specializes in developing, producing and marketing top-class machinery equipment. Now we focus on pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, etc. and turn key projects.
The advantages of our quick installation, such as beautiful appearance, flexible operation, stable performance and low operational cost are accepted by more and more customers. We own an outstanding R&D team and a strict & scientific management system, which enable us to supply high quality & convenient turn-key projects to all of our customers.
We have successfully produced over 1,000 turn key projects to clients, which make us one of the biggest manufacturers and the most powerful factories for biomass machinery. We have already sold our machines to over 80 countries, they are: Latvia, Russia, Slovenia, France, Italy, Tunisia, New Zealand, Australia, Colombia, Brazil, Uruguay, Vietnam, Thailand, Malaysia, Singapore, Indonesia, Algeria, the UAE, Kazakhstan, etc. Some of our clients have become our indispensable agents and cooperate with us very well.

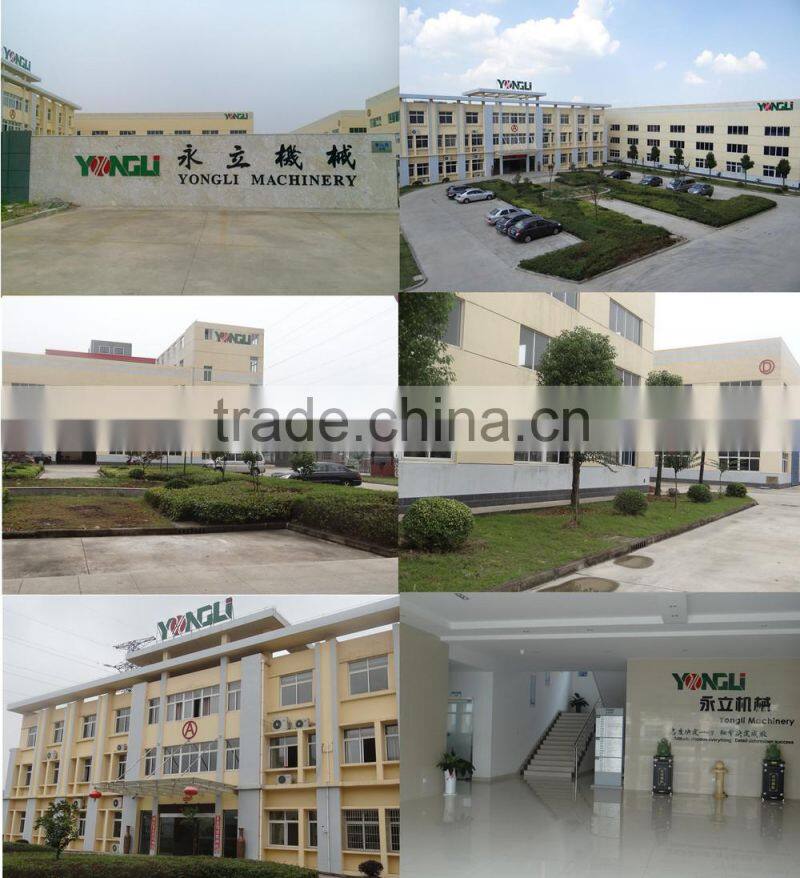

Our company view
Our customers
Why choose us?
Advantages we have:
Experienced biomass and feed pellet line related supplier for over 12 years.
- Professional sales and engineers team for your service.
High quality as all of the products have approved CE&ISO9001&SGS certifications
- Use most up-to-date CNC Machine Center to ensure the quality standards.
Already supplied over 1,000 turn-key projects with great satisfaction.
Welcome to contact us!
Welcome to visit our factory!
We will provide you our best equipments with the reasonable price to meet your requirements.
If you need any further information,do not hesitate to contact us !
Thank you for your reliance and support ! !
