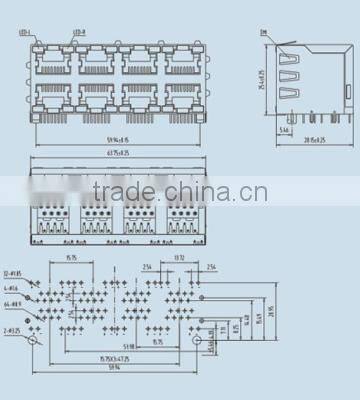

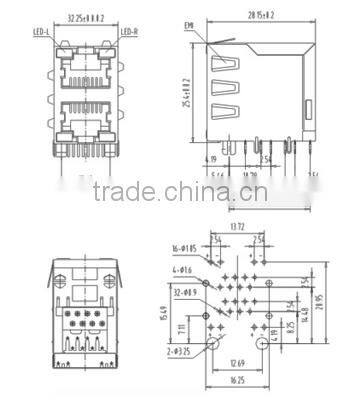

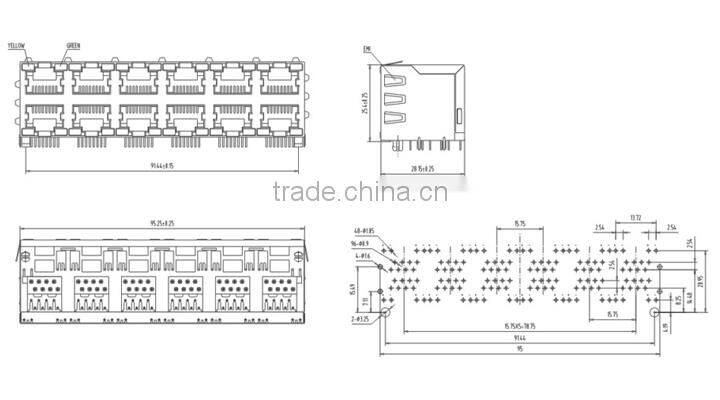

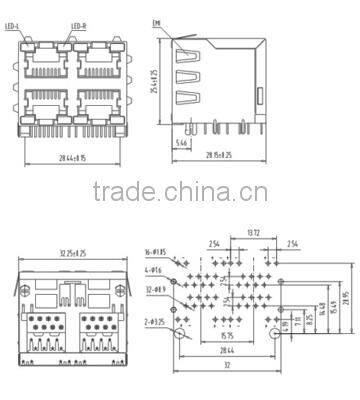

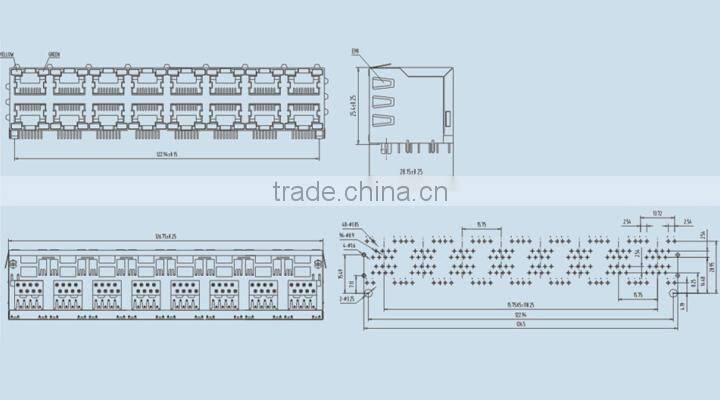

Quality Rj45 2 Row Network Connector With 90 Degree

MATERIAL

1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94V-0
                                         PBT,NYLON
2.HOUSING COLOR :BLACK OR OTHERS
3.CONTACT MATERIAL :PHOSPHOR BRONZE φ0.46mm
4.PLATING :GOLD PLATING OVER NICKEL.GOLD PLATING
                     THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED

ELECTRICAL
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :30 MILLINHMS MAX.
4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS.
                                                                             50Hz 1MINUTE
MECHANICAL
1.DURABILITY :750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER :1 LB MIN
ENVIRONMENTAL
1.STORAGE :-40°C~80°C
2.OPERATION :0°C~70°C
