380V Industrial Exhaust Fan / Box Fan

380V Industrial Exhaust Fan / Box Fan thumbnail-1
380V Industrial Exhaust Fan / Box Fan photo-1
US$ 199 - 299 MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Roof Fan
Contact Supplier Request Quote Chat Now
Hangzhou Haidihui Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Stainless Steel
Mounting Roof Fan
Place of Origin China
Brand Name HDH
Model Number 138A
Power 1100, 1.1KW
Voltage 380, 380V
Air Volume 44500
Speed 427
Certification CCC, CE
After-sales Service Provided Overseas third-party support available

380V Industrial Exhaust Fan / Box Fan



^_^Why you choose our exhaust fan



  A). Fans parts are manufactured by digital machines and precision system is assisted by computers, which maximizes the effectiveness of the fan.



   B), Ten strict testing procedures to keep good quality of the fan: 1), airflow test; 2), noise test; 3), libration test; 4), drive concentric test; 5),  blade RPM test; 6), electric current test; 7), whole machine efficiency test; 8), dynamic balance test; 9),  the thickness of the galvanized sheet test; 10), the size of the spare parts test.



^_^Specification

Product  Model                                  138A
Dimension                 1380*1380*400mm
Air Flow Rate                       44500m3/h
Power                              1.1KW
Voltage                              380V
Fan Blade Diameter                              1270mm
Fan Blade Speed                               427r/min
Noise                             below  65db
Frame Material                              Galvanized sheet
Fan Blade Material                         Stainless steel/ FRP
N/W   G/W                          75KG/80KG

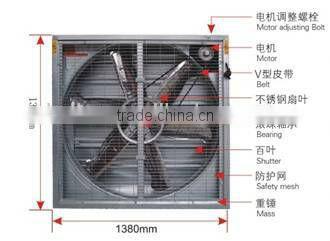

^_^Details

380V Industrial Exhaust Fan / Box Fan

1, Frame:  frames are made of galvanized board, thickness 1.0mm, galvanizing layer 180g/square meter.



2, Blade:  6 pieces, material 430/201 stainless steel, mirror face.



3, Impeller, casting aluminum alloy impeller.



4, Bearing of impeller :permanently sealed bearing, size 633313.



5, Venture: galvanized board, thickness 1.0mm.



6, Blade tip clearance: 25mm, mirroe face.



7, Inlet wind protecting net:  spraying paint steel wire, thickness 2.8mm.



8, Electrical motor:  aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase.



9, Motor bearing, :national grade.



10, Belt: V-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).



11, Shutters, galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer ,120g/square meter.



12, Warranty : 1 year for the whole machine.But the buyer must pay the carriage.



^_^Payment & Delivery

--Trade Terms: EXW, FOB, CIF, CRF

--Acception payment: T/T, L/C

--Delivery time: 15 days upon receive your 40% deposit.

--Minimum Order Quantity: 1 set for sample order, 20 sets for bulk order.

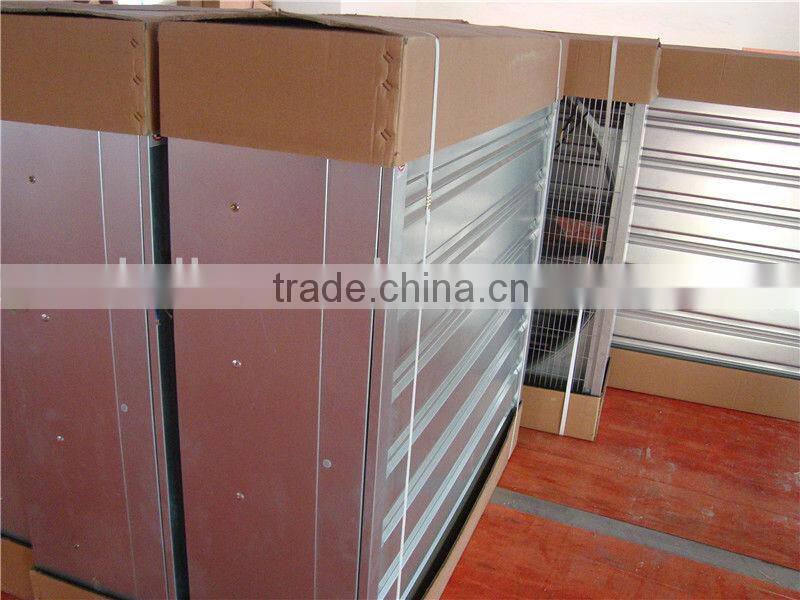

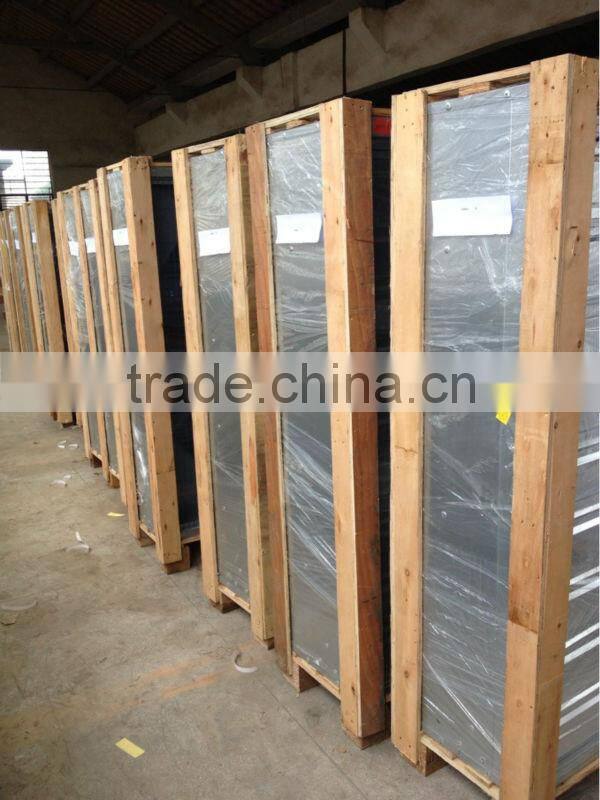

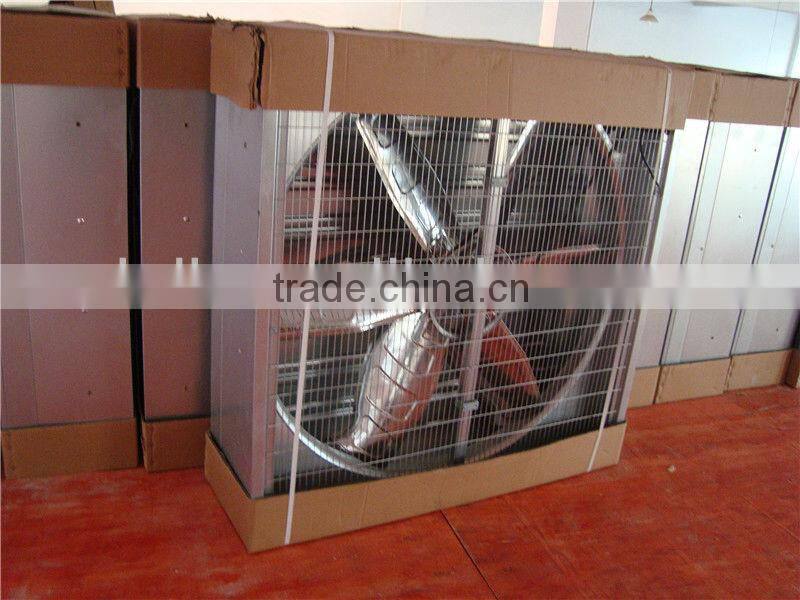

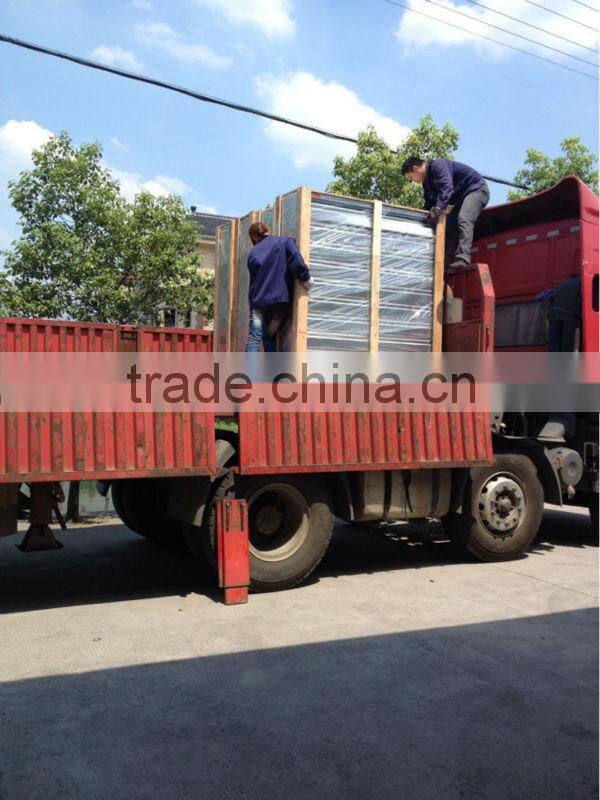

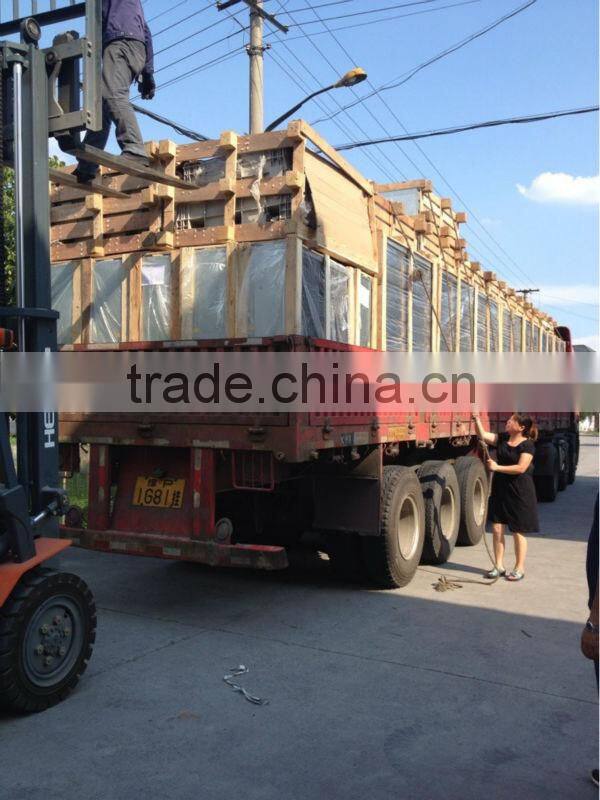

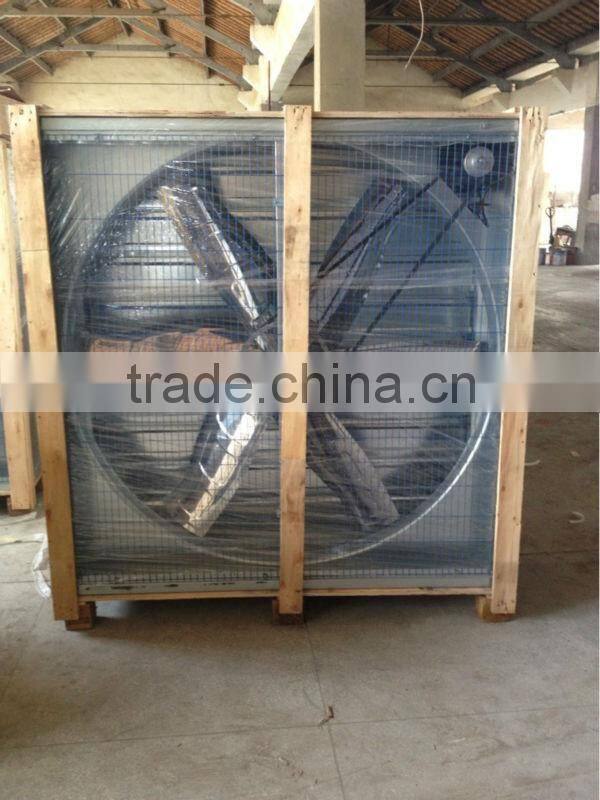

^_^Packing & Delivery

380V Industrial Exhaust Fan / Box Fan380V Industrial Exhaust Fan / Box Fan380V Industrial Exhaust Fan / Box Fan380V Industrial Exhaust Fan / Box Fan380V Industrial Exhaust Fan / Box Fan



 380V Industrial Exhaust Fan / Box Fan
