Home > Products > Angle Steel > Hot Sale Equal Angle Bars/MS Angle/Galvanized Angle Steel From China
Hot Sale Equal Angle Bars/MS Angle/Galvanized Angle Steel From China
- Qingdao Tianjin
- T/T
You May Like
-
CHANNEL STEEL 20#B 200*75*9.0 WEIGHT 25.777KG/M FOR CONSTRUCTION
-
CHANNEL STEEL 20#A 200*73*7.0 WEIGHT 22.637KG/M FOR CONSTRUCTION
-
CHANNEL STEEL 18#B 180*70*9.0 WEIGHT 23KG/M FOR CONSTRUCTION
-
CHANNEL STEEL 18#A 180*68*7.0 WEIGHT 20.174KG/M FOR CONSTRUCTION
-
CHANNEL STEEL 16#B 160*65*8.5 WEIGHT 19.752KG/M FOR CONSTRUCTION
-
CHANNEL STEEL 16#A 160*63*6.5 WEIGHT 17.24KG/M FOR CONSTRUCTION
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Dimensions | 20*20*3mm-200*200*24mm | |
| Grade | SS400-SS540 Series | Place of Origin | Shandong, China | |
| Brand Name | ZhongCan | Model Number | Q235/Q345/SS400/S235/S275 | |
| Type | Other, Equal, Equal | Application | Building Construction |
Product Description
Brif introduction and Application for Angle Bars/MS Angle/Galvanized angle steel:

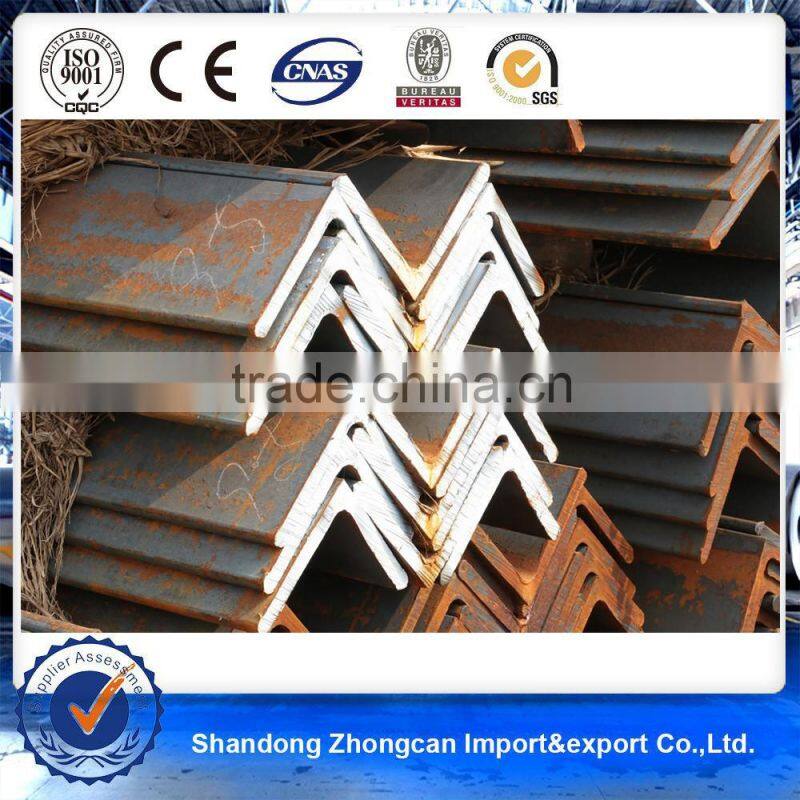

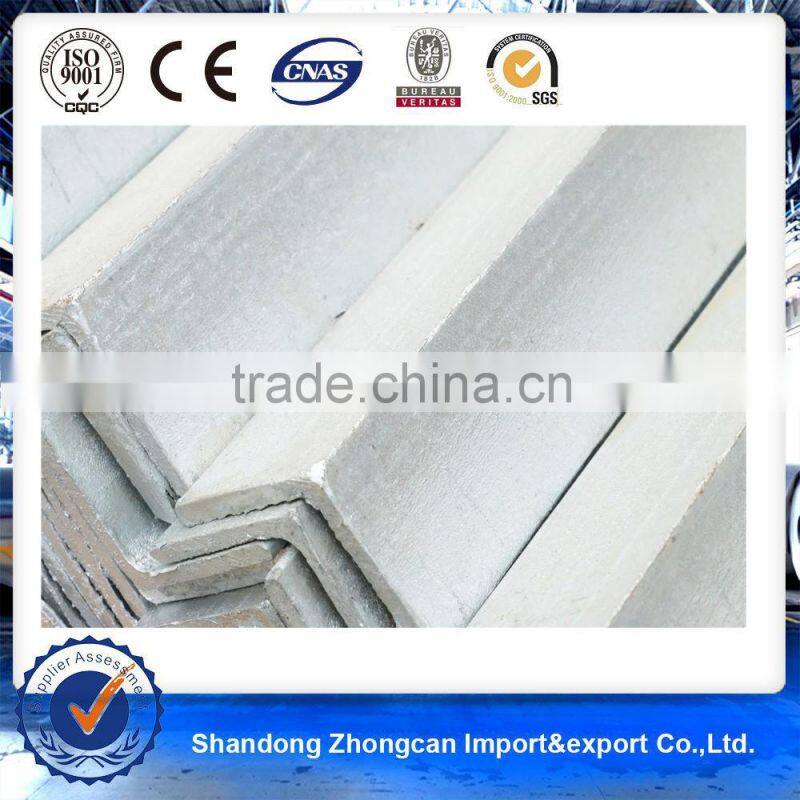

Angle, it is a long strip of steel which is perpendicular to each other.There are equilateral angle steel and unequal angle.
They are widely used in various architectural and engineering structures, such as beams, bridge, tower, heavy transport machinery, ships, industrial furnace, reaction tower, container frame and warehouse.
Details for Angle Bars/MS Angle/Galvanized angle steel:
Large : angle >12.5mm, medium angle 5-12.5mm , small angle <5mm
Type : equal angle 20-200mm
Unequal angle 25mm×16mm~200mm×l25mm thickness4-18mm
Standard:
GB/T2101—89 ,GB9787—88/GB9788—88;JISG3192—94;DIN17100—80
Surface Treatment:
black iron, galvanized
Equal angle Theoretical weight table
Specification(mm) | weight(kg/m) | Specification(mm) | Weight(kg/m) |
20*3 | 0.89 | 80*5 | 6.21 |
20*4 | 1.15 | 80*6 | 7.38 |
25*3 | 1.12 | 80*7 | 8.53 |
25*4 | 1.46 | 80*8 | 9.66 |
30*3 | 1.37 | 80*10 | 11.87 |
30*4 | 1.79 | 90*6 | 8.35 |
36*3 | 1.66 | 90*7 | 9.66 |
36*4 | 2.16 | 90*8 | 10.95 |
36*5 | 2.65 | 90*10 | 13.48 |
40*3 | 1.85 | 90*12 | 8.35 |
40*4 | 2.42 | 100*6 | 9.37 |
40*5 | 2.98 | 100*7 | 10.83 |
45*3 | 2.09 | 100*8 | 12.28 |
45*4 | 2.74 | 100*10 | 15.12 |
45*5 | 3.37 | 100*12 | 17.9 |
45*6 | 3.99 | 100*14 | 20.61 |
50*3 | 2.33 | 100*16 | 23.26 |
50*4 | 3.06 | 110*7 | 11.93 |
50*5 | 3.77 | 110*8 | 13.53 |
50*6 | 4.46 | 110*10 | 16.69 |
56*3 | 2.62 | 110*12 | 19.78 |
56*4 | 3.45 | 110*14 | 22.81 |
56*5 | 4.25 | 125*8 | 15.5 |
56*8 | 6.57 | 125*10 | 19.13 |
63*4 | 3.91 | 125*12 | 22.7 |
63*5 | 4.82 | 125*14 | 26.19 |
63*6 | 5.72 | 140*10 | 21.49 |
63*8 | 7.47 | 140*12 | 25.52 |
63*10 | 9.15 | 140*14 | 29.49 |
70*4 | 4.37 | 140*16 | 33.39 |
70*5 | 5.4 | 160*10 | 24.73 |
70*6 | 6.41 | 160*12 | 29.39 |
70*7 | 7.4 | 160*14 | 33.99 |
70*8 | 8.37 | 160*16 | 38.52 |
75*5 | 5.82 | 180*12 | 33.16 |
75*6 | 6.91 | 180*14 | 38.38 |
75*7 | 7.98 | 180*16 | 43.54 |
75*8 | 9.03 | 180*18 | 48.63 |
75*10 | 11.09 | 200*14 | 42.89 |
200*16 | 48.68 | ||
200*18 | 54.4 | ||
200*20 | 60.06 | ||
200*24 | 71.17 |
