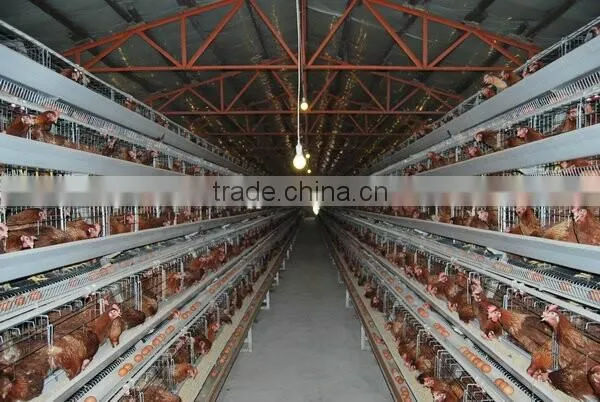

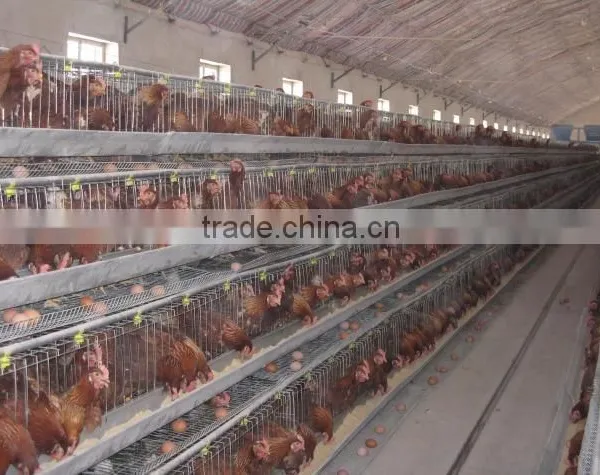

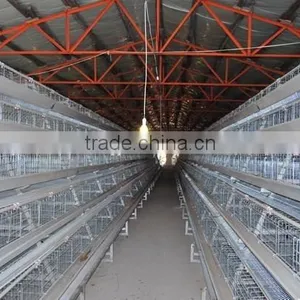

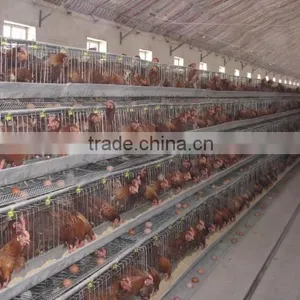

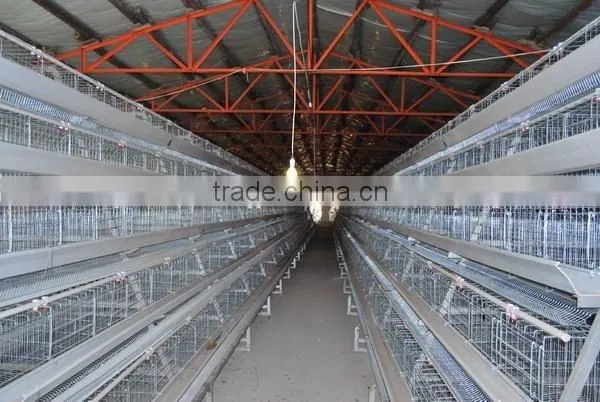

Stainless steel metal quail farm equipment
quail farm equipment
1. Long shelf life 15-20 years
2. Very easy to be configured following our Instruction
3. Low disease probability; almost ZERO death-rate in chicken during farming period
4. Extend the egg-laying cycle time
Merits of quail farm equipment
1. Quail cage with auto drinking system
2. Auto manure removal and auto feeding system
3. 3/4-layer, being customized by customers’demands ; Steel wire mesh
4. Reasonable price
5. Hot sale in Africa, east Asia, southeast Asia
6. Silver white color
|
Item (tier) |
door |
Dimension (L*W*H)(mm) |
cage size (L*W*H)(mm) |
Cell size (L*W*H)(mm) |
cage capacity |
set capacity (bird) |
|
3tiers |
4 |
1950 * 2350 * 1650 |
1950*550*380 |
487.5*550*380 |
4 |
96 |
5 |
1950 * 2350 * 1650 |
1950*550*380 |
390*550*380 |
3 |
90 |
|
|
4tiers |
4 |
1950 * 2550 * 2190 |
1950*550*380 |
487.5*550*380 |
4 |
128 |
5 |
1950 * 2550 * 2190 |
1950*550*380 |
390*550*380 |
3 |
120 |
|
|
5tiers |
4 |
1950 * 2750 * 2730 |
1950*550*380 |
487.5*550*380 |
4 |
160 |
5 |
1950 * 2750 * 2730 |
1950*550*380 |
390*550*380 |
3 |
150 |

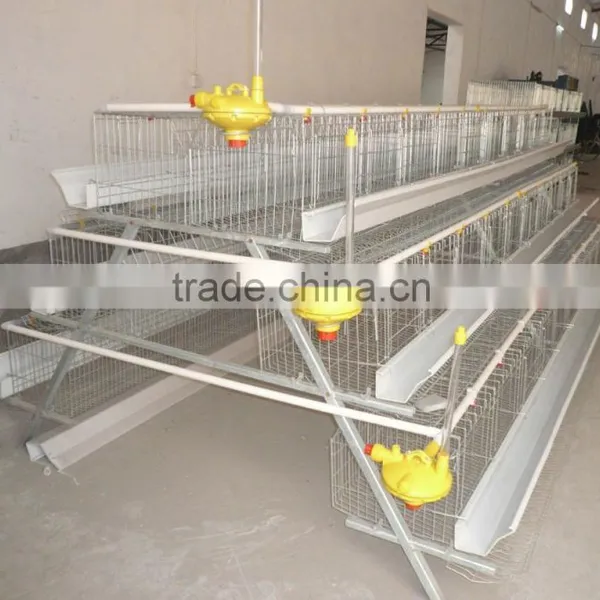

Configuration:
quail farm equipment

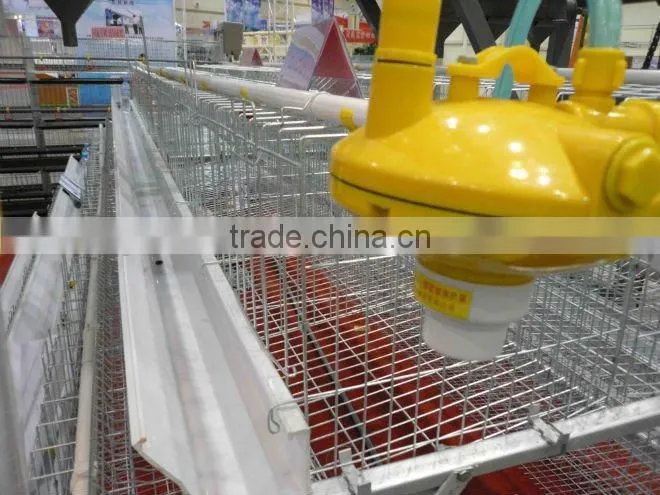

1. Frame Steel, with white PVC anchor/holder; Ball valve automatic water system with white PVC water pipe;
Zinc Plating steel; Well-sealed down-stream end, with pressure regulator.
2. Technical advantage, not easy to be eroded with Zinc Plating;
Good elasticity not deformation; Service life at least 14 years.
3. Reasonable Grid mesh and space to avoid the fatigue of the quail which extends the egg-laying cycle time;
4. White full-length PVC Pipe & black or white U-shaped feeding trough, with strong pressure resist and heat-resistant.
5. Well-equiped water-supply governor; Whole air-tight design, Simple pressure regulating and water filteration. Very easy to operate & control.
Customers' questions:
1. Q: Are you the direct manufacturer or trading company?
A: We are direct manufacture, we have our own factory, which has been specialized in this line for nearly 20 years.
2. Q: Can the products be customized and design the shed ?
A: Of course, we can produce the products according to your special requirements. We can also design the shed according to local temperature, wind direction etc.
3. Q: What's the MOQ of the products?
A: Our minimum order quantity is 50 sets.
4. Q: Do you have automatic system?
A: Yes, We have automatic feeding machine, automatic cleaning machine, fan for ventilation etc.
5. Q How many cages I need?
A: It depends on how many chickens you want the raise or the size of your chicken shed. We will recommend the most economical type for you.
6. Q How to start a chicken house?
A: Tell us the size and type of your shed and how many and chicken(broiler or layers?) you want to raise, we would lead you step by step and do free design for you.
7. Q Which automatic equipment do I need?
A whole series of a poultry chicken house include :incubator, automatic feeder, feeding silo, automatic egg collector, automatic manure removal, ventilation cooling system, heater. But what are you really need depends on the scale of your chicken house, the climate and the condition of electricity of your place .
Don’t worry, we can make a cost-efficient choice for you.
