New Design. New Product.
------------------------------------------------------------------------------------------------------------------------------------------

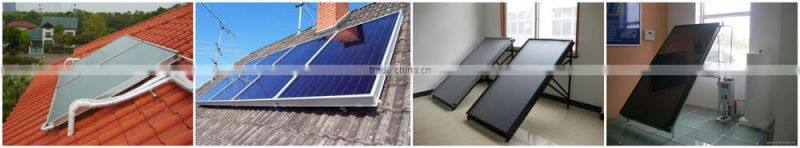

Copper Coil Split Pressurized Flat Panel Solar Water Heater for Home Use
Advantages:
------------------------------------------------------------------------------------------------------------------------------------------
1) Simple structure, easy installation
2) Efficient heat insulation
3) Reliable performance
4) Good quality and reasonable price

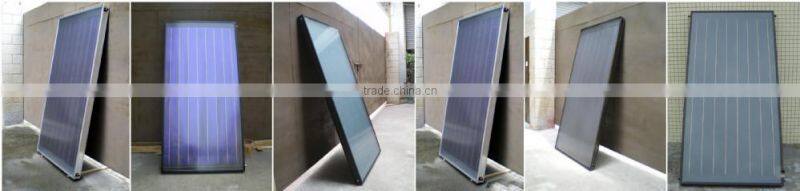

Specification of Flat Panel Solar Water Heater:
------------------------------------------------------------------------------------------------------------------------------------------
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium / black chrome coating / oxidation coating / titanium-coating have very high absorption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flat plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Outer tank |
Material |
Colorful steel with thickness of 0.5mm |
Diameter |
Ø460mm |
|
Inner tank |
Material |
1.2mm thick 304-2B stainless steel |
Diameter |
Ø360mm |
|
|
Flat collector |
Dimension of solar collector(L*W*T) |
2000mm*1000mm*80mm |
Copper Riser Tubes Spec. & Qty |
Φ10 * δ0.6 * 1886mm, 7pcs copper |
|
Copper Header Tubes Spec. & Qty |
Φ22 * δ0.6 * 1060mm, 2pcs copper |
|
Copper Absorber Fin Spec. & Qty |
140 * δ0.3mm,7pcs, all cooper fin |
|
Cover |
Low iron textured tempered glass with thickness of 4mm |
|
Cover Transmission |
>91.7% |
|
Absorptivity |
95%±2% |
|
Gross Area |
2.03m² |
|
Aperture Area |
1.82m² |
|
Insulation |
30mm fiber glass |
|
Sealing Gasket |
EPDM(Ethylene-Propylene-Diene Monomer) |
|
Back Plate |
galvanized steel with thickness 0.3mm |
|
Frame |
silver or black aluminum alloy steel with thickness 1.5mm |
|
|

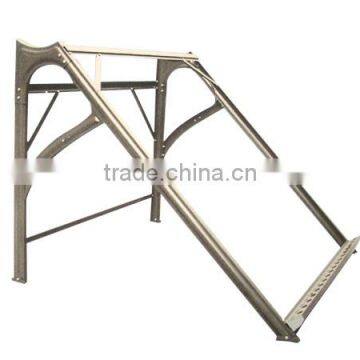

Support Bracket |
Material |
Galvanized steel |
Thickness |
1.5mm |
|
Deg |
25°-45° (It can be changed as local latitude) |
|
Screw |
SUS202 stainless steel 8mm diameter |
|
|
Insulation |
Material |
High density PU foaming imported from German |
Thickness |
50-55mm |
|
Density |
≥40kg/m3 |
|
Working station |
Pump/Intelligent controller/ pressure gauge/expansion tank |
|
Max operation temperature |
200°C |
|
Max pressure |
1400Kpa |
|
Max working temperature |
120°C |
|
Special Features:
------------------------------------------------------------------------------------------------------------------------------------------

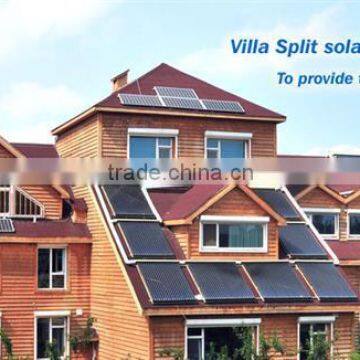

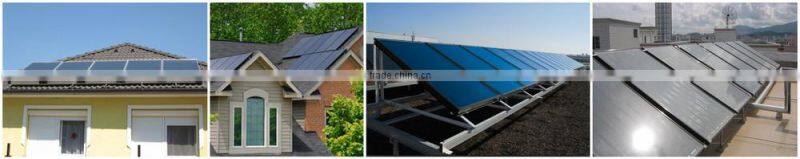

1. Collectors are separated from the storage tank. The tank can be put anywhere of the house,so the whole system is harmonious with the building
2. Absorbing heat quickly
3. No worry about being frozen because there is no water running inside the tubes when working
4. Completely automatic operation
5. It can withstand pressure of tap water when it works
6. Without incrusting, long usage life
7. Multifunction: Bathing, washing, domestic heating
8. Beaytiful appearance
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5-What is your MOQ?
1 sets
6-What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7-What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8.-What is your Monthly Production Capacity?
6000 sets
9-What is your Shipping Term?
By Sea/Air/Rail
