Product Details
| Place of Origin | Hebei, China | Brand Name | XiangMing | |
| Model Number | XM-DWF | Frame Material | Metal | |
| Metal Type | Iron | Pressure Treated Wood Type | Heat Treated | |
| Frame Finishing | Powder Coated | Feature | Easily Assembled, Eco Friendly, Rodent Proof, Rot Proof |
Product Description
868 656 Double Wire Fence Welded 2D Panel Fence Security Wire Mesh Fence

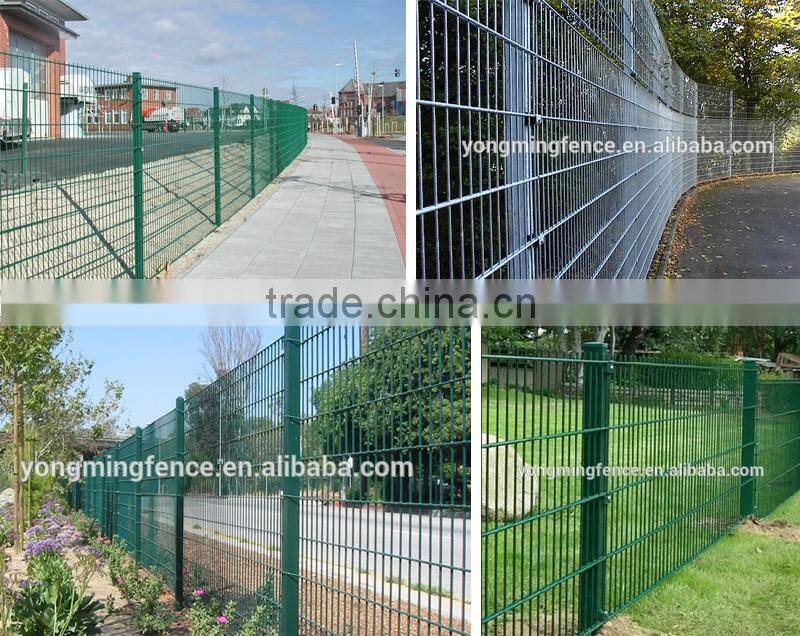

Double wire fence is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.
Material For Double Wire Fence :
High quality, low carbon steel as raw material.
Wire diameter:
6mm+5mm+6mm,8mm+6mm+8mm.or as your requriments

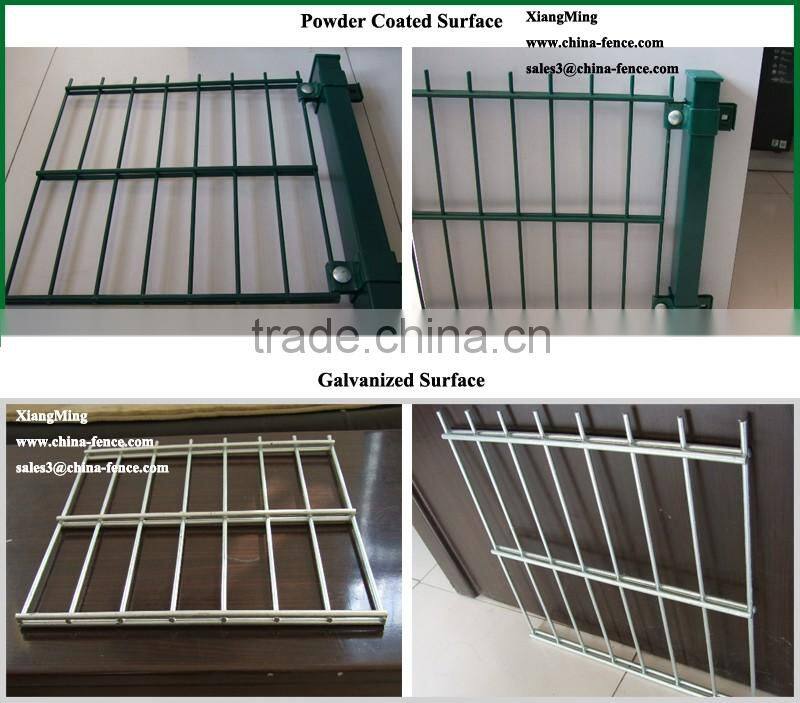

Surface finish:
Hot dipped galvanized; powder spraying coated.
Power coating:
The thickness of power coating is around 150 microns usually.
Hot dipped galvanized after welding:
The zinc coating is more than 500g/m2 (70 microns)
Specification:
Double wire mesh fence | |||||
Panel Height x Width mm | Mesh Size mm | Wire diameter | Post Height | ||
Wire dia mm | Wire dia mm | Wire dia mm | |||
630 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1100 |
830 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1300 |
1030 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1500 |
1230 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1700 |
1430 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1900 |
1630 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2100 |
1830 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2400 |
2030 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2600 |
2230 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2800 |
2430 x 2500 | 50 x 200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 3000 |
Different specifications are available according to your special requirement or drawing.
Double wire mesh welding - sand blasting - washing - phosphating - washing - powder coating - hot blast smoothing and drying - package - container loading

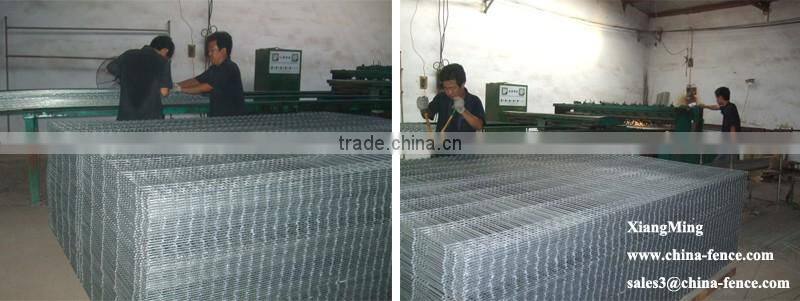

Double wire mesh welding

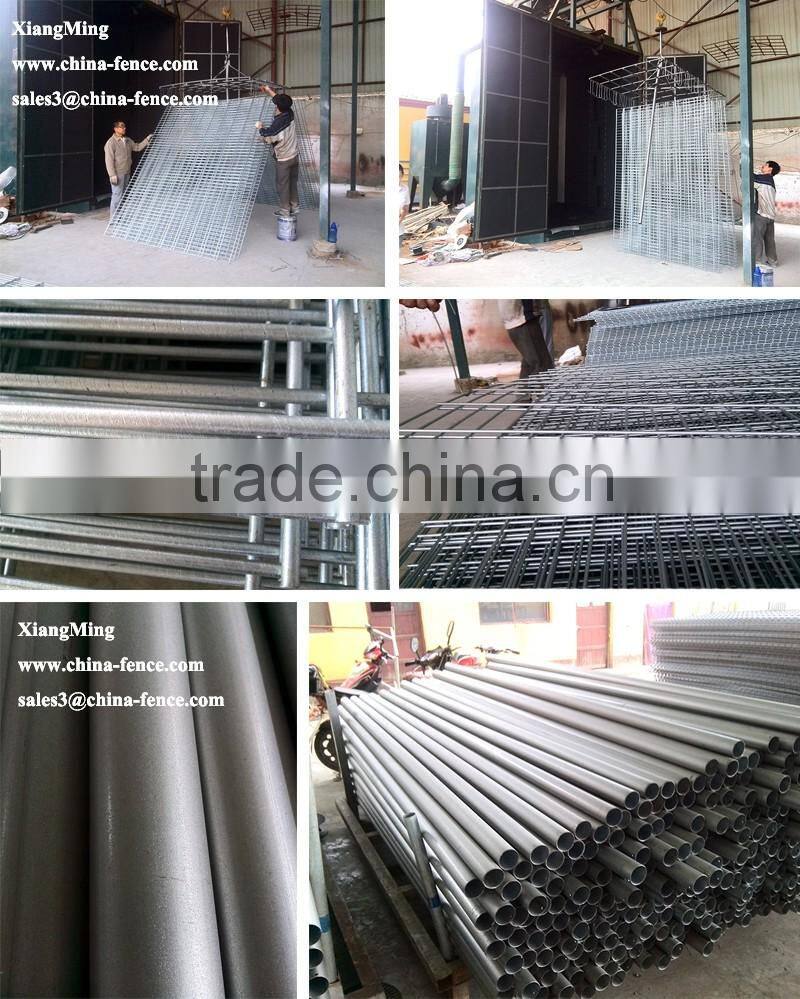

Double wire mesh and post sand blasting

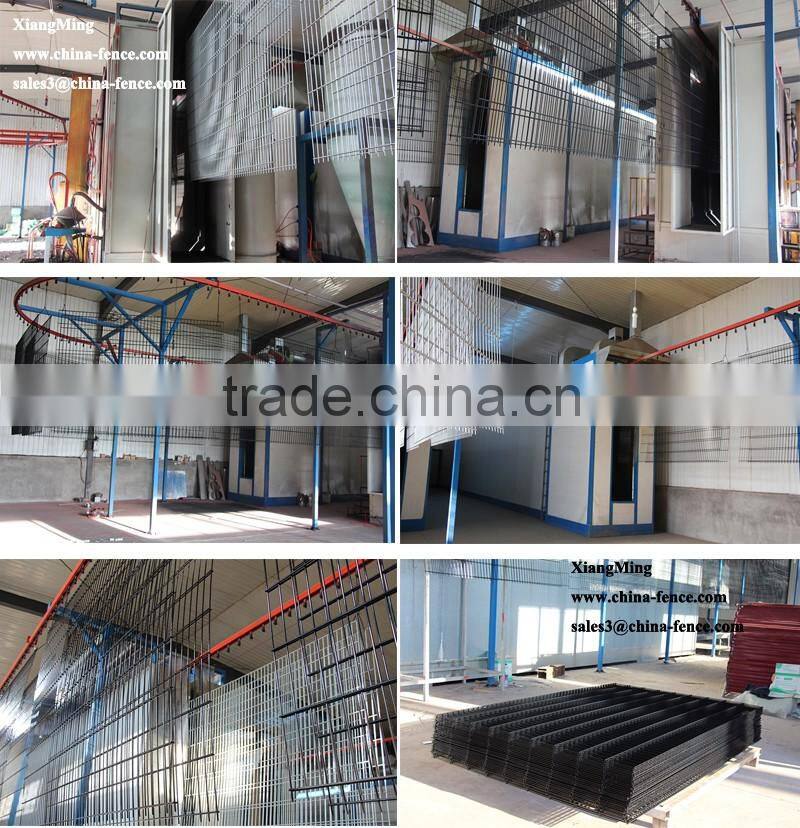

Powder coating

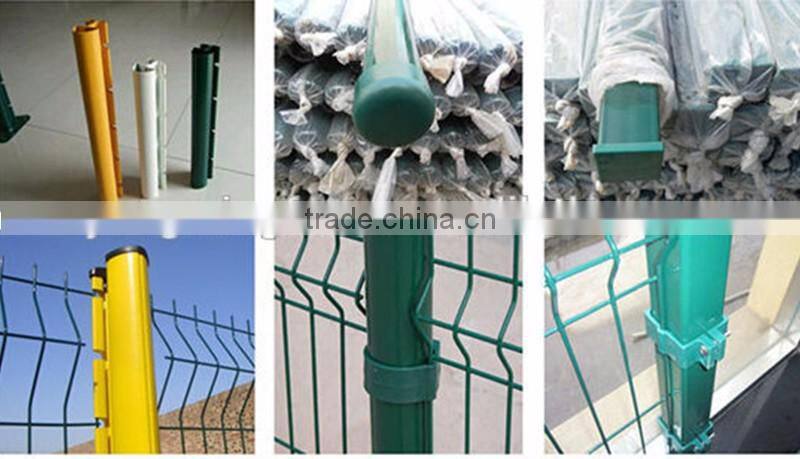

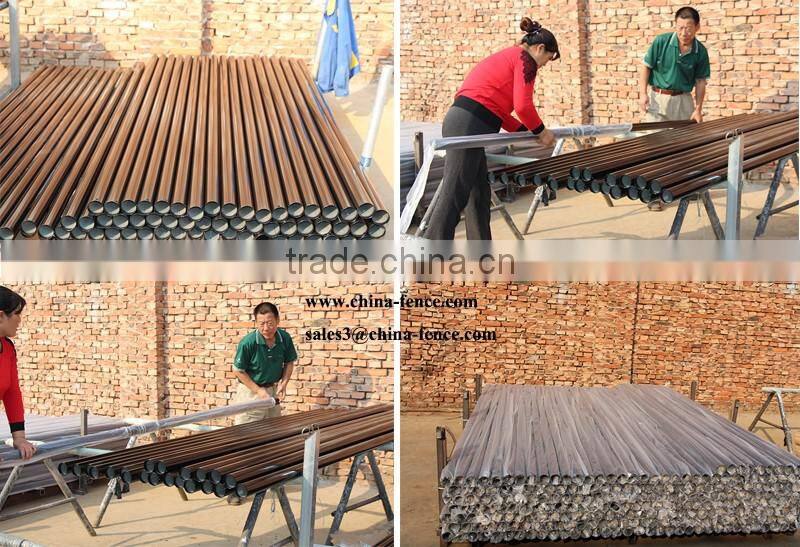

Double wire fence post:
1.Square post:50*50mm,60*60mm
2.Rectangular post:80*60mm,120*60mm
3.Peach post:70*100mm
4.Round post: 60*60mm

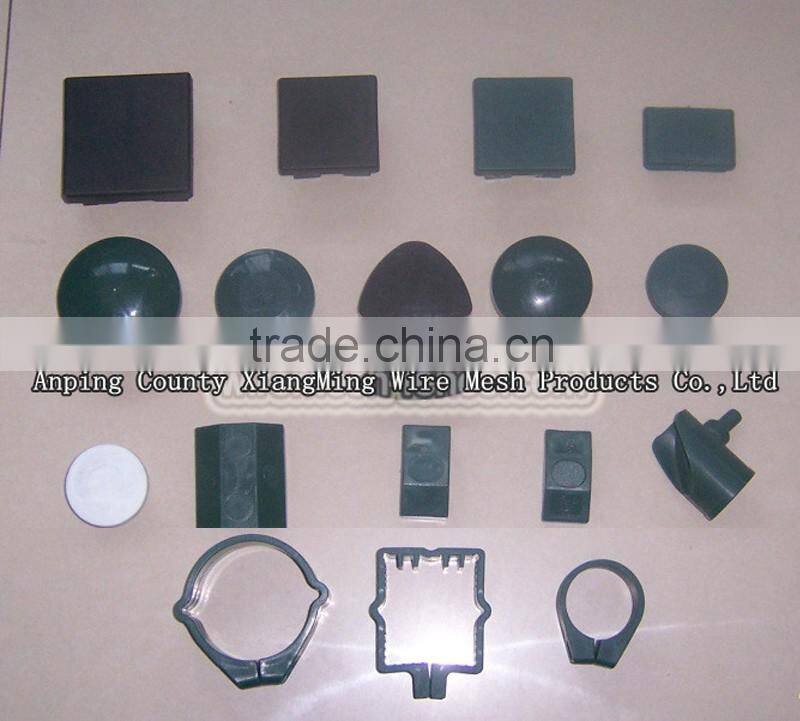

Accessories: rain cap and clamps

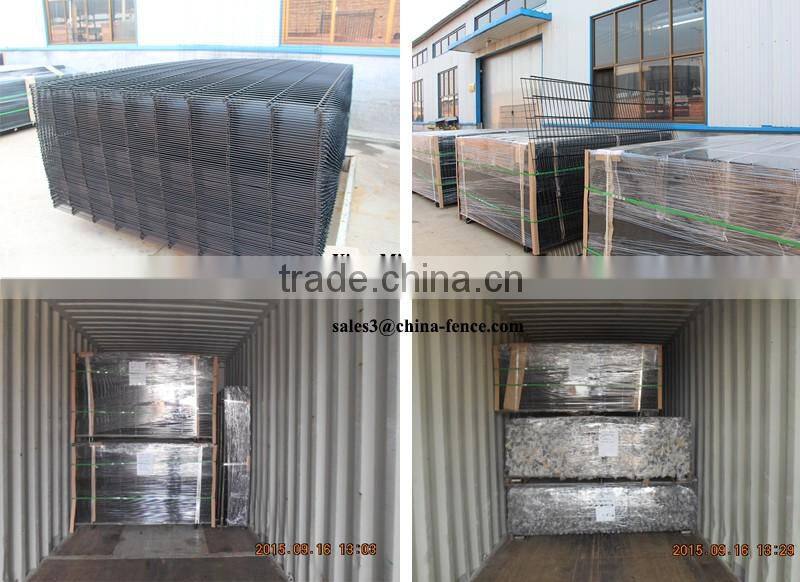

1> Fence panel: plastic film + metal pallet
2> Fence post: every post pack with a plastic bag + metal pallet
3> Accessory: small plastic bag + carton box
♦Strong and reliable security
♦Versatile bottom option
♦Attractive appearance
♦Vandal resistant
♦Low maintenance Ideal
Company Profile:
Year of establishment | 1996 |
Year start exporting | 2000 |
Area | 18000 square meter |
Sales volume | USD5,500,000 in 2015 |
Main market | America, Europe, Australia, Japan, Asia, Russia etc |
Certifications | SGS, ISO9001, BV, CE & TUV etc |
Factory Tour:
Certification:
Our Team:
Contact us if you are interested.
