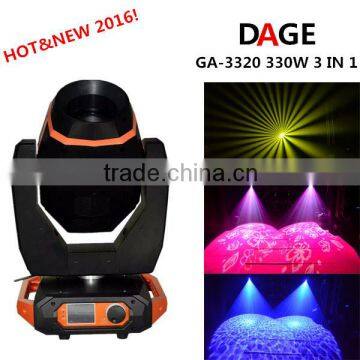

HOT&POPULAR 2016! DAGE GA-3320 [Ultra Magnus] 330W 15R 3 in 1 moving head light

HOT&POPULAR 2016! DAGE GA-3320 [Ultra Magnus] 330W 15R 3 in 1 moving head light

1. Voltage: AC110-240V, 50-60HZ

2. Lamp: YODN 330W, 8000K
3. Total power: 480W
4. Channel: DMX 20 CH
5. Overall angle: 0-60° Beam: 0.-2.9° ,Spot: 2.5-48°, Wash: 2.5-60° 7. Gobo wheel: 2 (1 fixed, 1 rotating) 8. Color wheel: 1, 14 color 6. Prism: 8,24,32 facet prism 7. High speed strobe 0-14/sec.
8. Pan 540°16/32 bit / Tilt 260°16/32 bit
9. Display:LCD touch screen
13. Packing: flight case

14. Main features:

1. sharply,uniformity& brightness beam, 2. independent 8, 16, 24 facet prism, 3.easier interchangeable rotating gobo, 4. Classical&amazing water-wave washing effect. 5. 3 phase motor and fast Pan/tilt movement. 6. High quality material,LCD touch screem.

Video link:

/watch?v=QcUklVv1ZsQ

OPTICAL SYSTEM

YODN MSD 330W 15R 8000K

Unique casing design, beam/spot high cost-effective

Reflect bowl is coated with multi-layer, efficiency and reflective coating.

Italian heat-protecting glass, good dissipation

Diameter 125mm, the beam uniform, sharply, bright.

Zoom: Completely electronic linear zoom 2.9-60° (including frost &prism),

2.9°the beam effect is the best

Electronic focusing

DISPLAY SYSTEM

16 million pixel LCD touch screen, with sleep mode function

The warning light will be red when error happened, using time is displayable.

5 button menu control mode, Debug setting:

CONTROL SYSTEM

International standard DMX512 control.

19 control channels.

DMX, random,auto, voice and sleep mode.

Using high-tech constant current board, 36V / 24V voltage.

Built-in high-quality magnetic components ensure stable signal transmission.

Data line antifreeze, in line with CE20 / 22 standard.

Data interface: 1. 3-pin male and female connector;

                           2. 3-pin combine 5-pin male and female connectors.

POWER SYSTEM

430w, power fluctuations (± 50W) works normally.

AC110-240V/50-60HZ.

Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode.

Ground wiring in accordance with international standards.

Built-in high-quality lighting power filter to ensure stable signal transmission.

Power line antifreeze, in line with CE20 / 22 standard.

STROBE SYSTEM
Independent double shutter device, 0-14 times /s

0-100% linear dimming.

The lamp power is automatically reduced by 40% when it turn off in 5 seconds

Remote control switch and boot light function for bulb, default as remote control.

COLOR SYSTEM

Imported Italian specialty high temperature materials, Germanic  high-tech coating technology.

14 color +open

Semi-color,full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect.

Automatic error correction at any angle with hall, magnet positioned.

GOBO SYSTEM
2 gobo wheels (1. 14 fixed gobo+open,  2. 7 rotating gobo+open,replaceable gobo)
Imported Italian specialty refractory metal materials.

Automatic error correction at any angle with hall, magnet positioned.

FROST SYSTEM

Independent single-sided high penetration frost lens.

Various changes of frost effects.

The largest frost angle is 20°.

PRISM SYSTEM

Italian heat-protecting glass. Germany's high-tech coating technology.

Independent 8,24 facet prism.(8+24 will create 32 prism)

Rotating angle is adjustable. The largest prism angle is 60°. 8, 24 ,32 prism effect.

COOLING SYSTEM

Excellent aluminum material, good heat dissipation and light weight.

Fan Qty: 5pcs

Built-in overheating protection

ROTATION SYSTEM

X/Y motor: Fast and quiet 3-phase motor.

X/Y position: Encoder& Hall components position and advanced scanning memory function .

Pan:540°(16/32 bit),

Tilt 260 °(16/32 bit),

LIGHTING DESIGN

1.Metal Plate: Creative high quality raw material

2, Housing design: User-friendly, nice looking, tough and neat.

DEMENSION

Body size: xx mm

N.W: xx kg

STANDARD ACCESSORIES

G clamps:  2 pcs;

Safety rope: 1 set;

Bakelite plug: 1 pair.

3m signal cable: 1 piece;

1.5m power cable: 1 set.
